Product Description

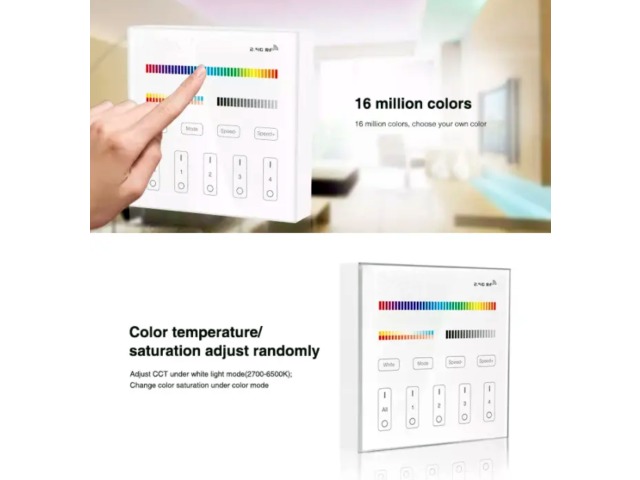

Control our RGB or RGBW Strips, and other Mood Lighting LEDs via the wireless Glass Panel, App, or the Remote Control Handset. All arre included as a package.

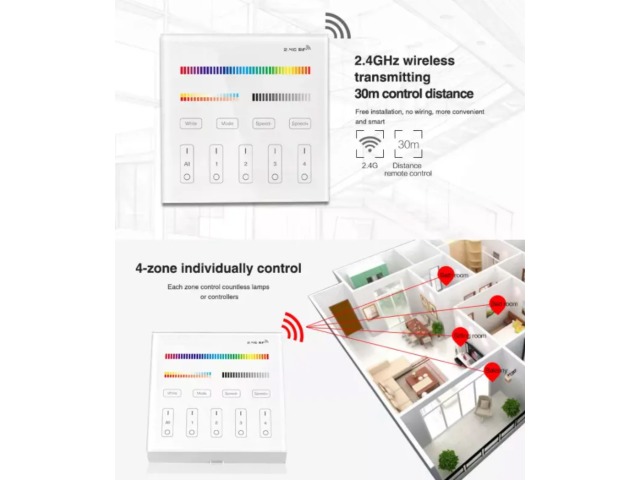

The system has up to 4-Zones, byt the use of an additional Receiver. The Freely downloadable App makes all controls available through your Smartphone or Tablet.
A wide range of colours including White, Warm White, Pastels, and Vivid Colours are possible due to the incremental steps within the control receiver.
Product Specification

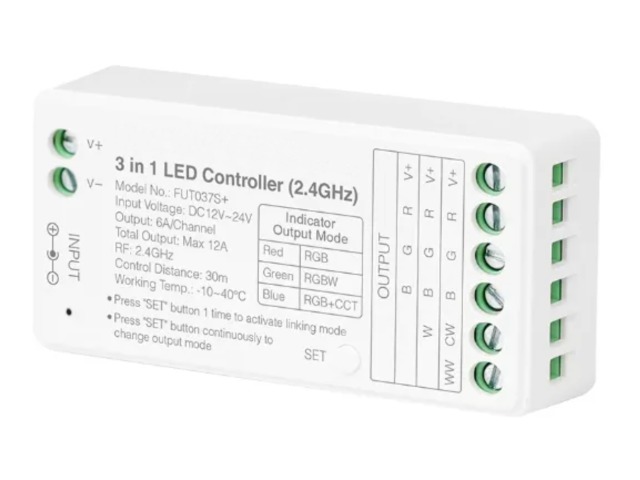

| 4 Zone Remote Control Receiver | Specs | ||
| Control Methods | Glass Panel Remote Remote Handset APP | ||
| Voltage Range | 12-24vdc | ||
| Colours | 16.7 Million (RGB) 4.3 Billion (RGBW) | ||
| Max Output Current | 12A@24vdc | ||
| Maximum Load | 288w | ||
| Frequency | 2.4Ghz | ||
| Operating Distance | 30 Metres | ||
| Operating Temperature | -10 - 40? | ||
| Product Weight | 41g | ||
| Certification | CE UKCE RoHS | ||

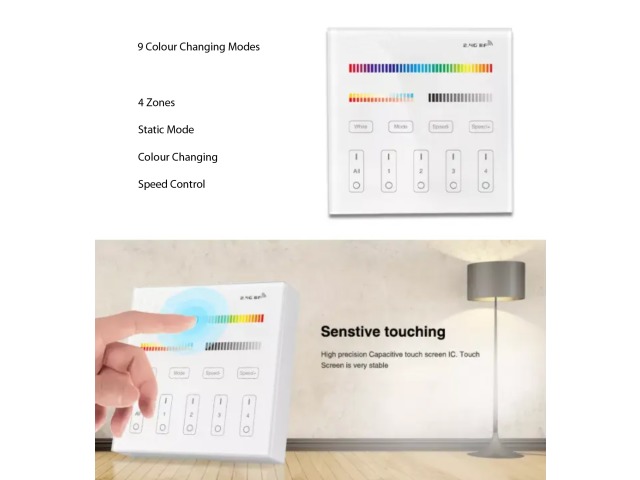

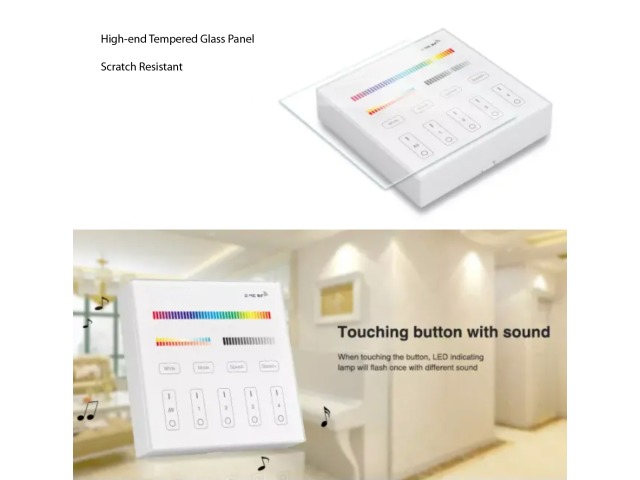

| 4 Zone Remote Control | Specs | ||
| Colours | RGB/W CCT | ||
| Operating Distance | 30 Metres | ||
| Operating Temperature | -20 - 60? | ||
| Voltage | 3V(2 x AAA Battery) | ||
| Transmission Frequency | 2400-2483.5MHz | ||
| Modulation Method | GFSK | ||
| Transmitting Power | 6dBm | Standby power | 20uA |
| Remote Size size | 86 × 86 × 19mm | ||
| Product Weight | 92g |

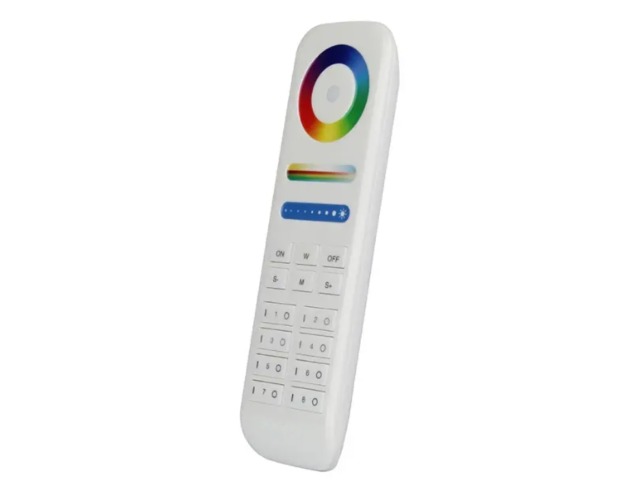

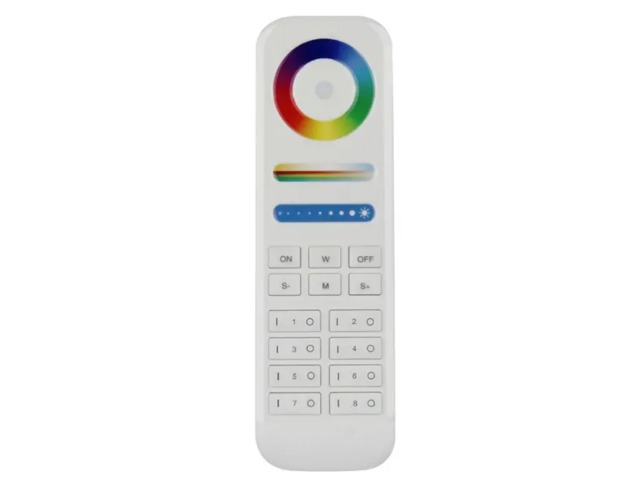

| Remote Handset | Specs | ||
| Colours | RGB CCT | ||
| Operating Distance | 30 Metres | ||
| Operating Temperature | -20 - 60? | ||

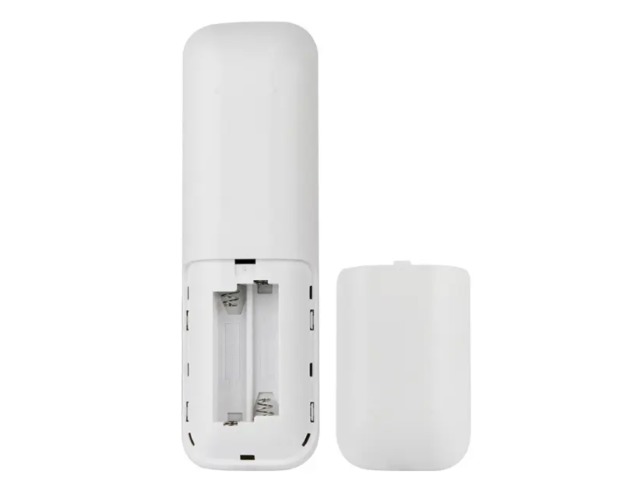

| Voltage | 3V(2 x AAA Battery) | ||
| Transmission Frequency | 2400-2483.5MHz | ||
| Modulation Method | GFSK | ||
| Transmitting Power | 6dBm | Standby power | 20uA |
| Remote Size size | 47 × 19 × 153mm | ||
| Product Weight | 92g |
