Product Description

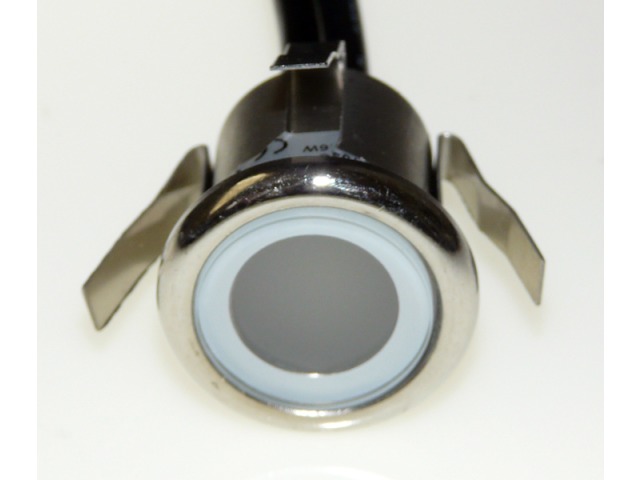

The latest version in our Plinth Light range this Plinth Light has a polished 304 Stainless Steel bezel with a non-glare frosted glass lens.

Litewave ® branded. Stainless Steel

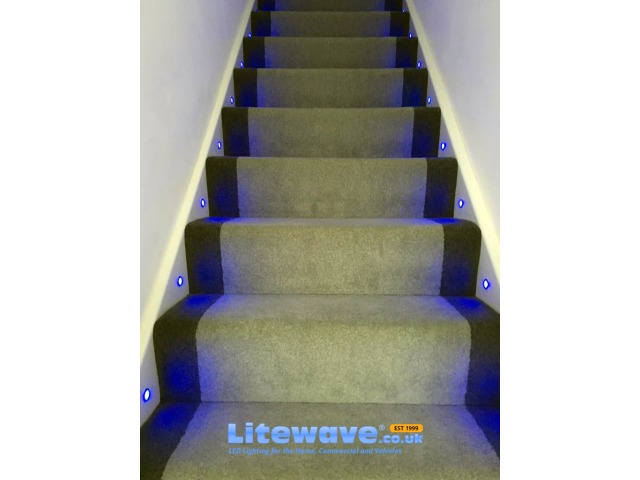

It is waterproof to IP67 (temporary submersion under water) making it suitable for use indoors or outdoors in decks, steps, plinths, showers, floors, walls, and ceilings.

High Quality
Branded

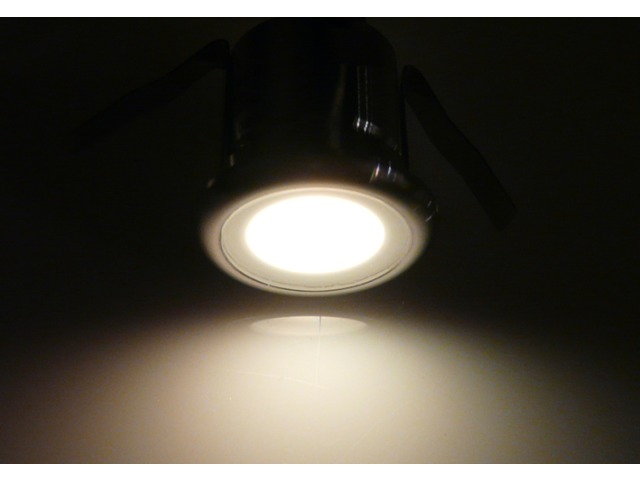

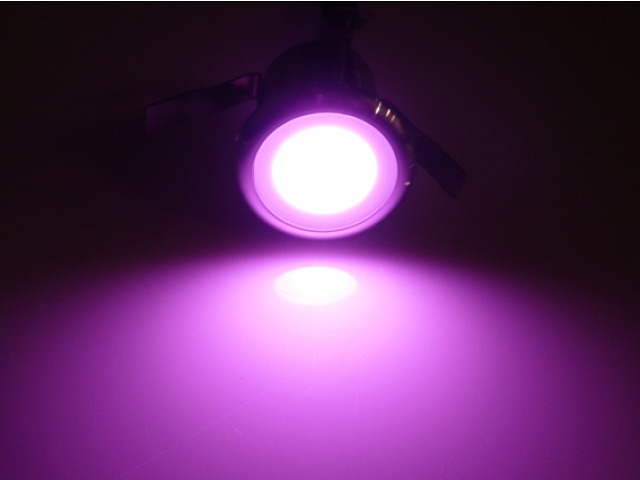

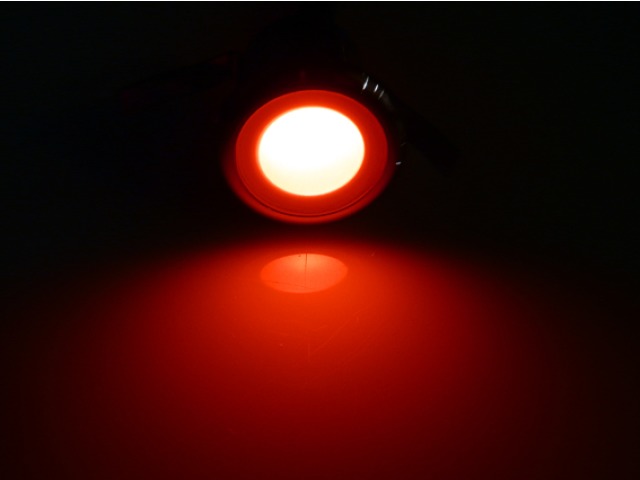

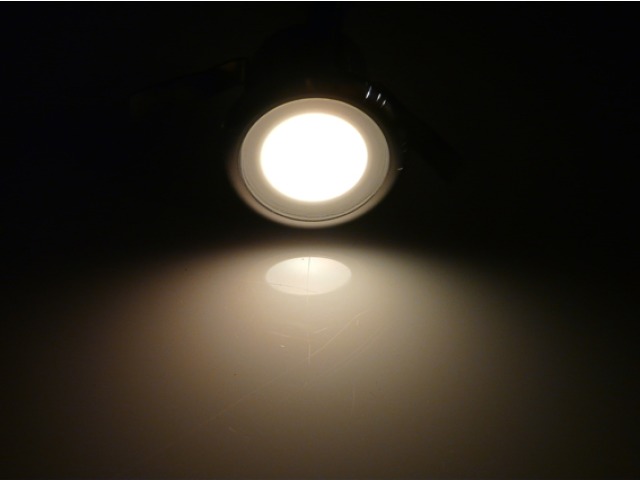

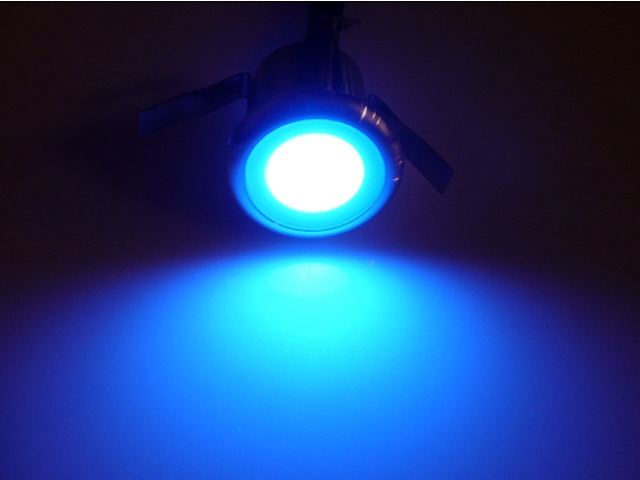

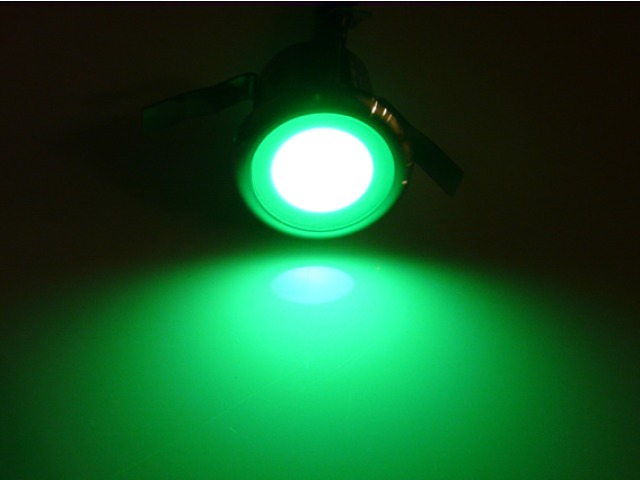

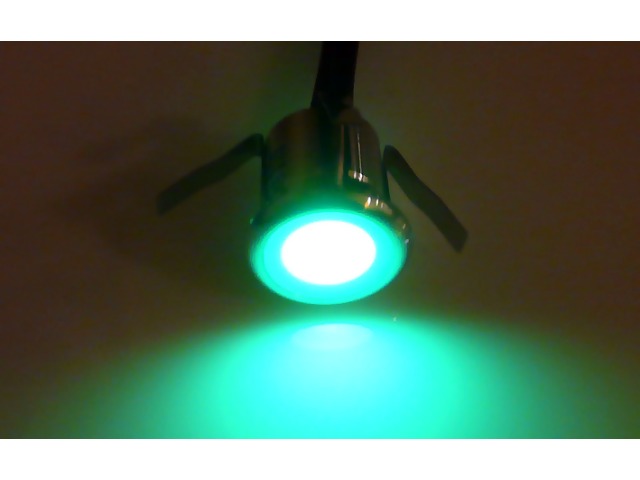

Used on their own they can display 7 Colours; White, Blue, Green, Red, Purple, Pink, Yellow, and Cyan by connecting the wire for the corresponding colour you require.

These lights do not get hot so can be mounted on wood and plastic surfaces.

If you connect it to our Flexi (2.1 Million) Colour Driver the colour range will be virtually unlimited with gradual smooth colour sweeps which can be frozen on any colour.

We have additional controllers (see below) that allow them to be operated from an Infra-Red Remote, or our Lightbox (Smartphone / Tablet Controller)

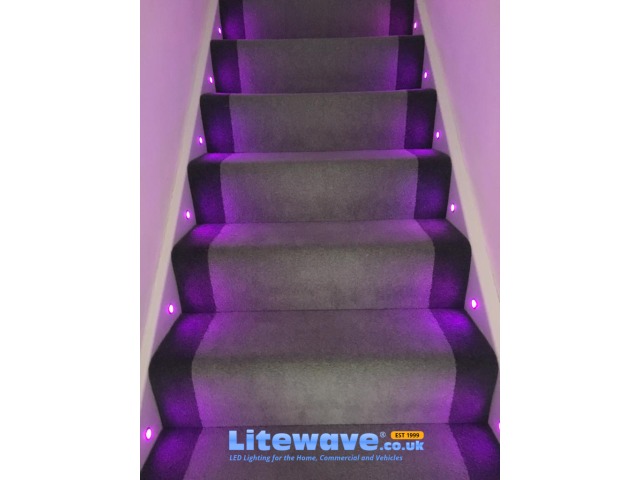

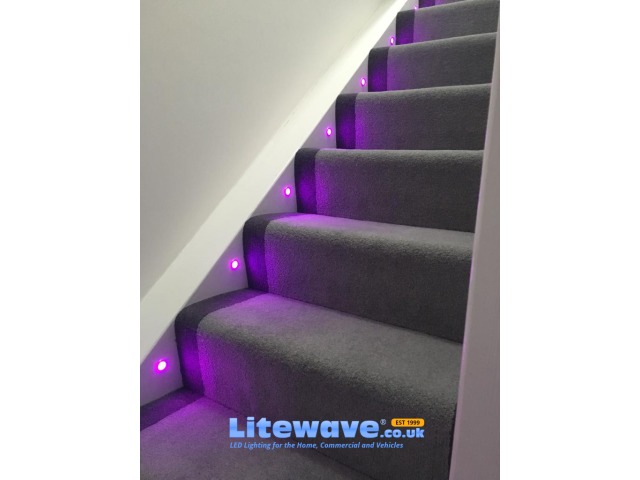

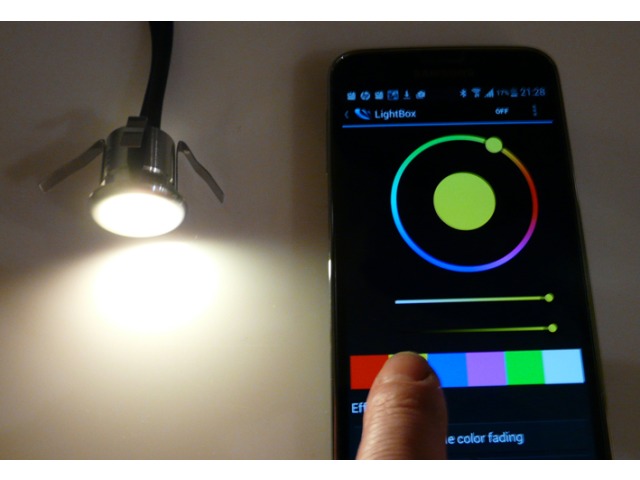

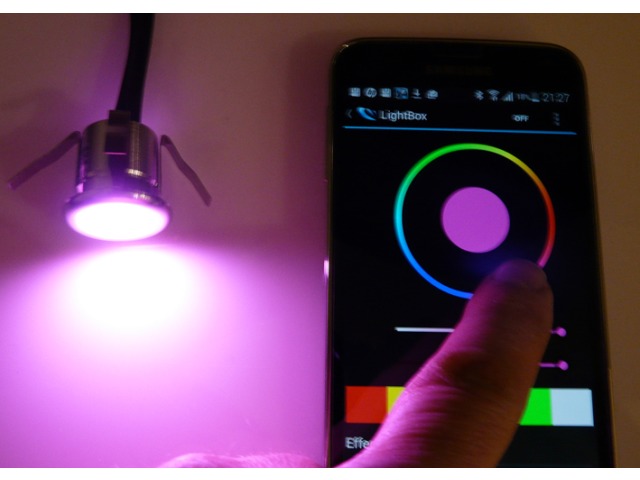

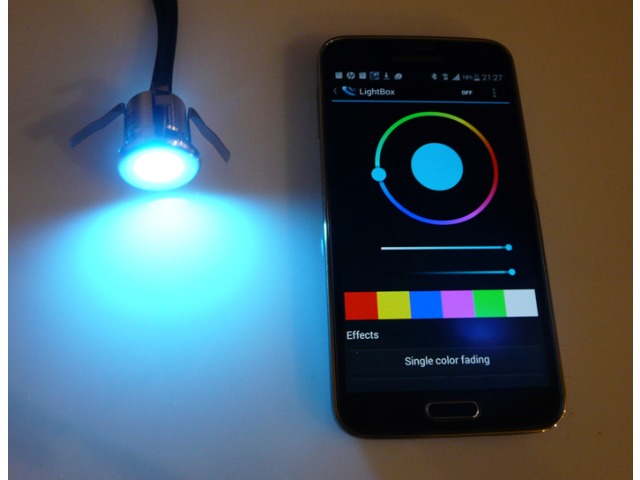

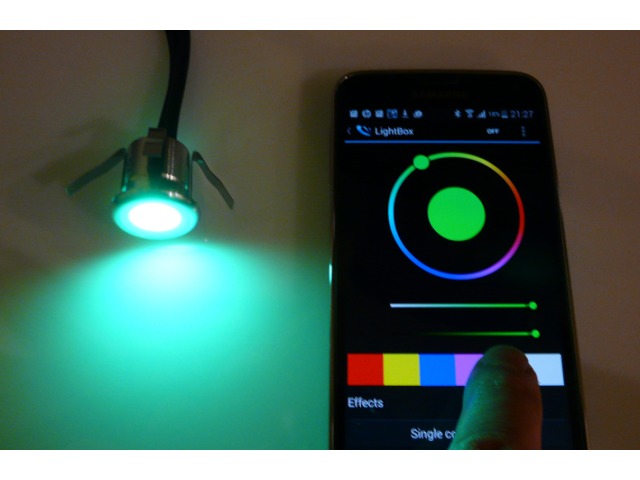

The pictures on the right show the Plinth Lights being used with our Lightbox (£49), it allows you to select the colour onscreen by using the free App.

Connection guide for the Plinth Lights

Although they draw little power, they will provide a reflected glow from walls and ceilings, enough to see around the room.

The Spring Clips on the side of the light hold the LED in position. For installations in showers or wet rooms we recommend applying a small bead of silicone to the back of the light before pushing into place, this will prevent water ingress behind the surface the light is fitted to.

Each one of these lights is fitted with twin 0.5M wires with quick connectors allowing one light to be plugged into another, with a distance of up to nearly 1 Meter between each light.

Also available below, are extension cables from 1M to 10M. This makes installation easy with only the first light in the chain needing to be connected to the Colour Controller

You can have just one light in the installation or a chain of them, displaying the same colours at the same time, if additional Flexi Drivers are used, different Zones can be created for independent colours. They will work in conjunction with our other LED Mood Lighting Products for a complete lighting network, all controlled via one Remote Control.

10 of these left on white 24 hours a day would draw just 7.2 watts, costing around 20p a week to run

This is a compact effective light source at a reasonable price.

The cut out hole size required for these lights is just 24-25mm

Product Specification

Voltage	12vdc
Max. Current	60ma
LED Type	RGB
LED Power	0.72 Watts
Lens Material	Glass
Lens Diameter	20mm
Lens Clarity	Opaque
Hole Cut Diameter	20mm with 2mm filed notches at 12 O'clock, 3 O'clock, and 9 O'clock
Flange Diameter	28mm
Body Length	25mm
Body Diameter	19.5mm
Recess Depth Required to fit LED	30mm
No. of Wires	4 in 4 out
Wire Length	1M
Durability	IP67
Warranty	2 Years
Certifications	CE, RoHS

Product Videos

Product Documents

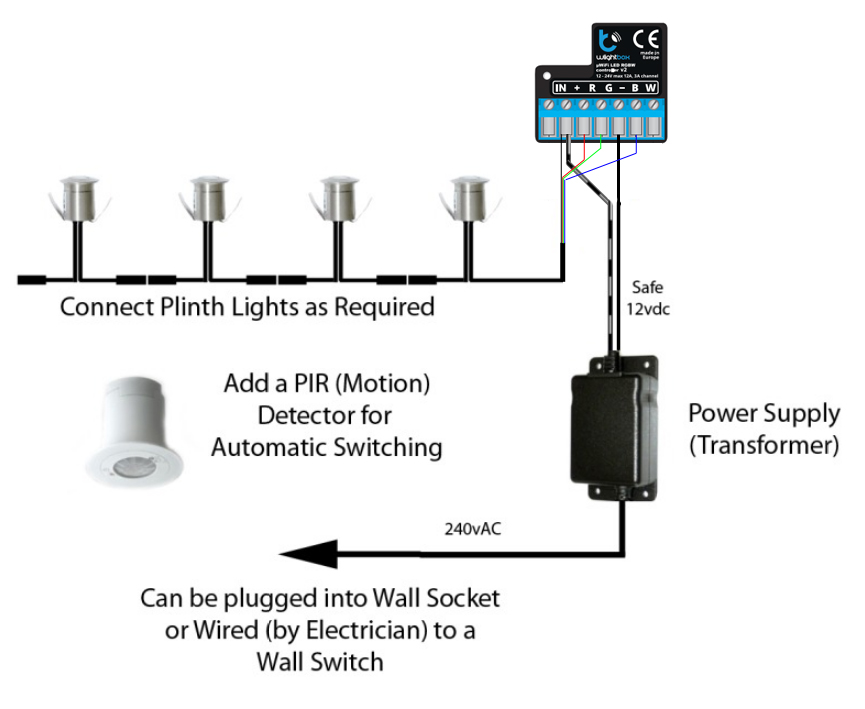

WiFi Controller Plinth Light connection

Accessories

For more information about one of the products below simply click the name of the product.

Colour Controller	Price
LightBox Smartphone RGB LED Controller For colour control of up to 133 Plinth Lights via a suitable Smartphone or Tablet, allows colour changing with speed control, static colour, brightness control etc. Free Downloadable App. Resumes last setting when switched on at power. No Flexidriver required with this product.	£49.00	Quantity :
Wi-Fi Lightbox Colour Controller (v3) Colour and brightness control from any Web enabled device over Wi-Fi, this device does not have to be linked to your Router. Capable of powering 200 x Plinth Lights directly with more connectable through the Ampbox.	£65.00	Quantity :
Flexi Driver (2.1M Colour Driver) Gradual Colour changing over 90 seconds, lock any colour by switching off then back on	£35.00	Quantity :
Flexi Driver+ (2.1 Million Colour Driver) Ideal for setting up a pre-wired system in a bathroom behind stud walling, best used in combination with the 1 Meter Extension Cables	£46.95	Quantity :

Power Supplies	Price
1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector Ideal for setting up a pre-wired system in a bathroom behind stud walling, best used in combination with the 1 Meter Extension Cables	£11.50
12vdc 5A (60w) Waterproof (IP67) Power Supply For connection to a lighting circuit. This will power 1 - 75 Plinth Lights.(Electrician Required)	£26.00	Quantity :
2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp) This will power up to 26 Plinth Lights - The PSU can be plugged into a mains socket.	£9.00
12vdc 12.5A (150w) Waterproof (IP67) Power Supply For connection to a lighting circuit. This will power 1 - 180 Plinth Lights.(Electrician Required)	£59.00	Quantity :
12vdc 8.33A (100w) Waterproof (IP67) Power Supply For connection to a lighting circuit. This will power 1 - 115 Plinth Lights.(Electrician Required)	£42.00	Quantity :
2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp) This will power 1 - 26 Plinth Lights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).	£14.00
12vdc 2A (24w) Waterproof (IP67) Power Supply For connection to a lighting circuit. This will power 1 - 26 Plinth Lights.(Electrician Required)	£15.00	Quantity :
