5M Dotless RGB LED COB Strip, 24vdc, Colour Changeable) (840 LEDs/M) 5M Reel

Product Code: 840-10MM- RGB-12.5w

£65.00 inc VAT (£54.17 ex VAT)

Stock Level: In-Stock

Splashproof or Non Splashproof
Quantity :
Lengths & Prices:
5 Meters£65.00
5 Metre Splashproof (IP65)£65.00

Auto Quantity Discount

View accessories for this product

Share
Description Specification Accessories

Product Description

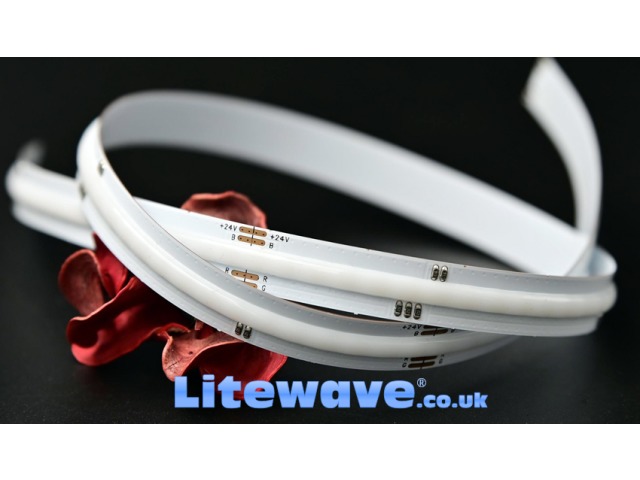

This Strip incorporates 840 LEDs per Metre spaced very closely. This ensures the light produced is dotless without the need for any diffusers.

Ideal for applications where there is no space for a diffuser or profile. It can also be used in any of our profiles where necessary. Using in a Profile with a frosted cover will further enhance the dotless appearance when used at reduced brightness. It will look like Neon but with colour changing and brightness functions.

5M reel has 4,200 LEDs

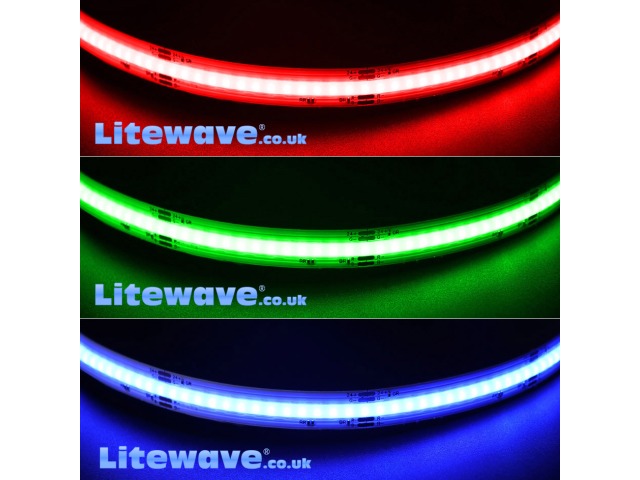

  • RGB - 16.7 Milliion colours including whites, warm white, and pastels

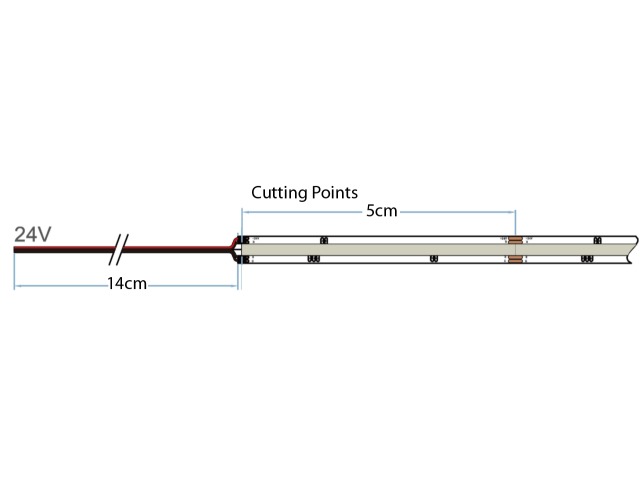

  • Cutting points every 5cm
  • 24vdc reduced voltage drop issues

Available with Silicone Coating (IP65 - Splashproof)

Product Specification

Working Voltage Range24vdc
LED TypeFC COB
LED BrandSanan
RGB ValuesR:615-630nm
G:520-535nm
B:450-460nm
Brightness per Metre~550Lm
Current per Meter500mA
Power Draw per Meter12.5 Watts
Light Dispersion180 °
Width of LED Strip10mm
Depth of LED Strip2.2mm
Lengths available5M
Lifetime>25,000 hours
LEDs per Meter840
Cutting Points5cm
Wire pre-fitted14cm on both ends, allows you to cut once with the off-cut pre-wired
IP RatingIP20 (Non Splashproof
IP RatingIP65 (Silicone Coating) Splashproof (Add £5)
Warranty2 Years
CertificationsCE, RoHS
