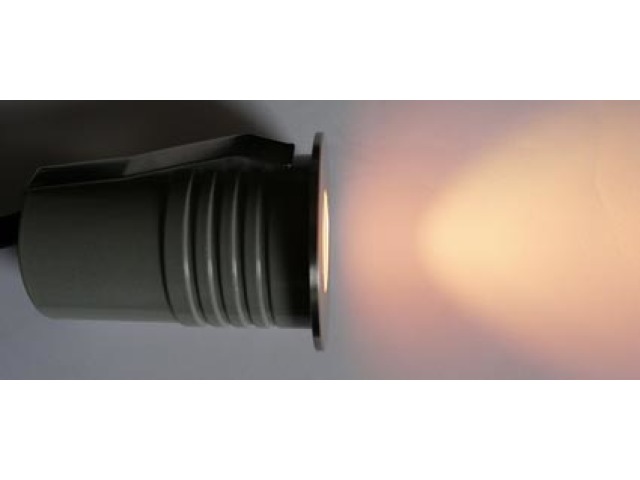

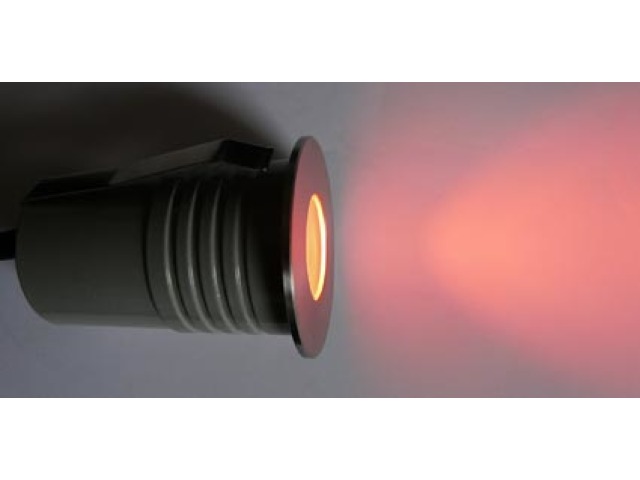

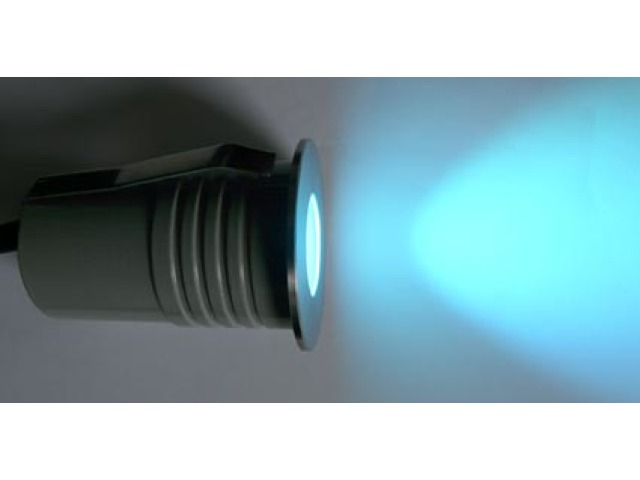

Colour Changeable (RGB) LED Spotlight, Waterproof (IP67)

Product Code: RGBS3W

£49.00 inc VAT (£40.83 ex VAT)

Stock Level: In-Stock

Quantity :
Quantity Prices:
2 for£47.00 each
3 for£46.00 each
5 for£45.00 each
10 for£44.00 each
20 for£42.00 each

Similar Products

Please choose one of the options below for more details

View accessories for this product View Documents


Product Description

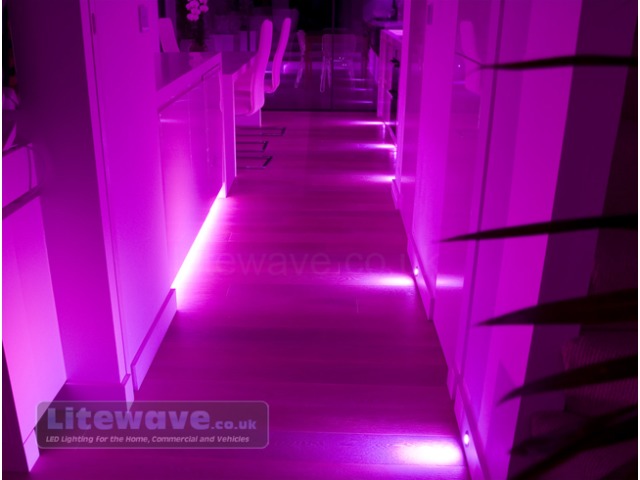

This attractive Spotlight/Downlight is IP67 Rated allowing it to be used in any wet environment such as Bathrooms, Showers, Saunas, Gardens and even Driveways.

Draws just 3 Watts whilst producing light equivalent to a 30 Watt Halogen

The rugged design makes them ideally suited for use in domestic and commercial settings, we have sold a large number of these RGB Lights for use in restaurant chains around the country. They are very reliable.

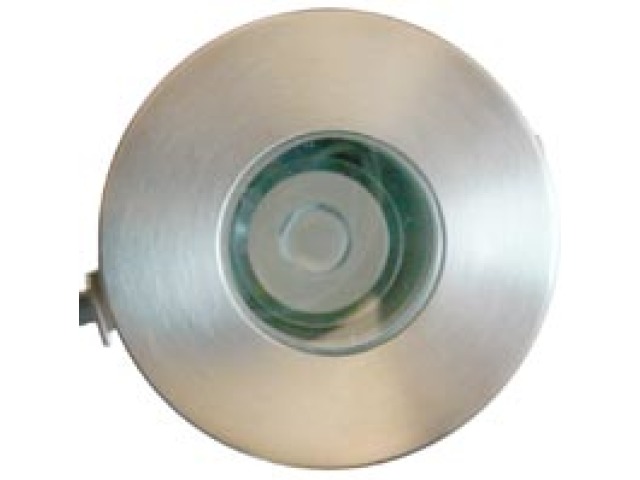

The light fitting is finished with a flush fitting brushed 304 Stainless steel bezel.

Due to the built-in dual voltage constant current driver the lamps will operate at the same brightness over all colours from 8v-24vdc. This means they can be used long distances away from the power supply (Transformer) and colour controller. The voltage drop over long distances will not affect the colour or the light output. Distances of 50 Metres or more are possible by using the Spotlights on our 24v Power Supplies.

Where required it will fit into a GU10 / MR16 Lamp Holder.

The Multi Chip LED has Red, Green, and Blue Emitters enabling the product to display 16.7 Million Colours when used with a Lightbox or Wi-Fi Lightbox, or 2.1 Million Colours if used with a Flexidriver.

Up to 20 RGB Spotlights can be controlled from a single Lightbox or Flexi Driver.

Even more control is possible including sound activation by using the ZAP+ or ZEN Controller.

*Also controllable from Smartphone or Tablet using our Lightbox (Blueooth) and Wi-FI Lightbox.

  • Rugged 12mm thick glass optic
  • Stainless Steel
  • Aluminium body protected with enamel coating for a long maintenance free lifetime

A plastic sleeve is supplied for fitting in-ground (concrete).

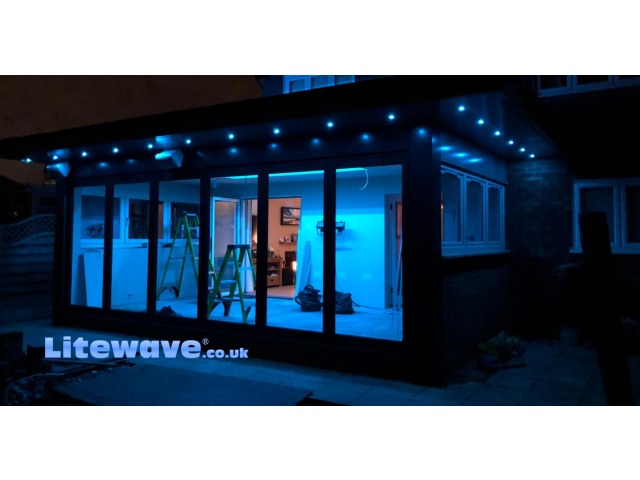

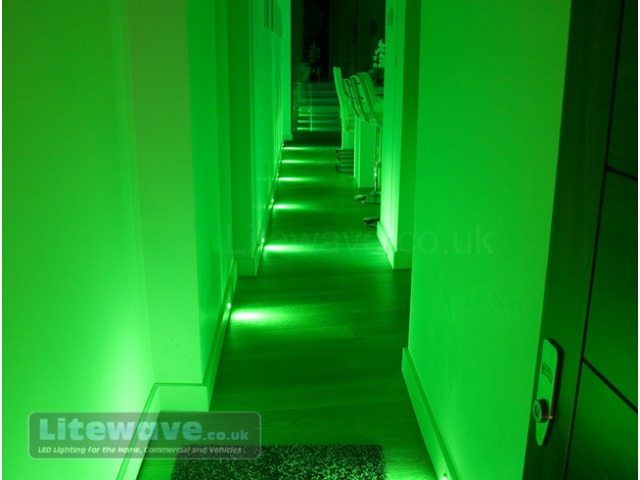

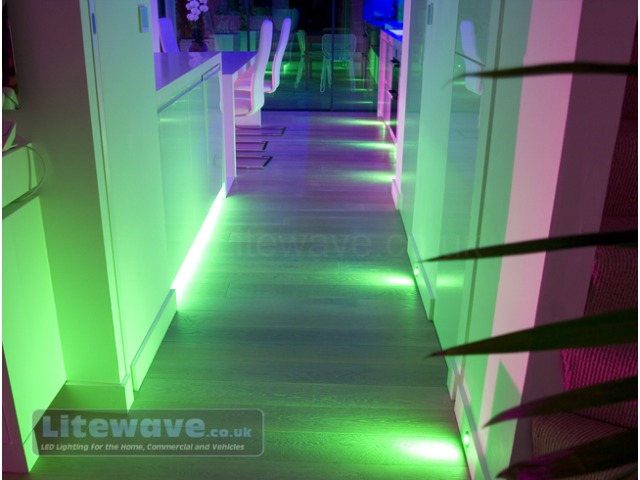

Ideal for lighting:

  • Bath/Shower Plinths/Shower Tray
  • Plinths in Kitchens
  • Baseboards
  • Garden
  • Driveways
  • Restaurants / Bar / Clubs
  • Stage / Theatre
  • 3 Year Warranty

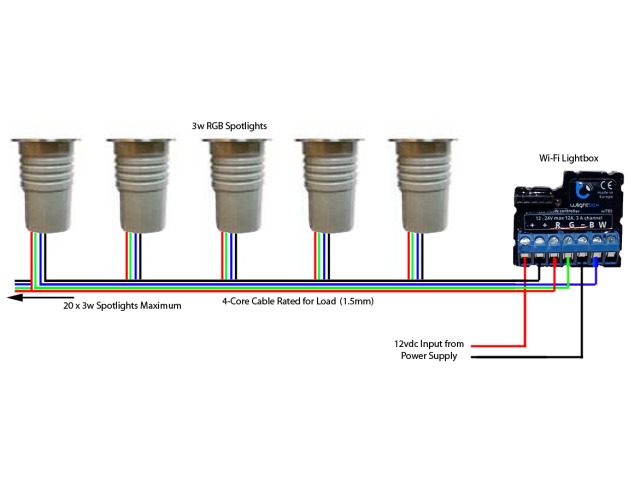

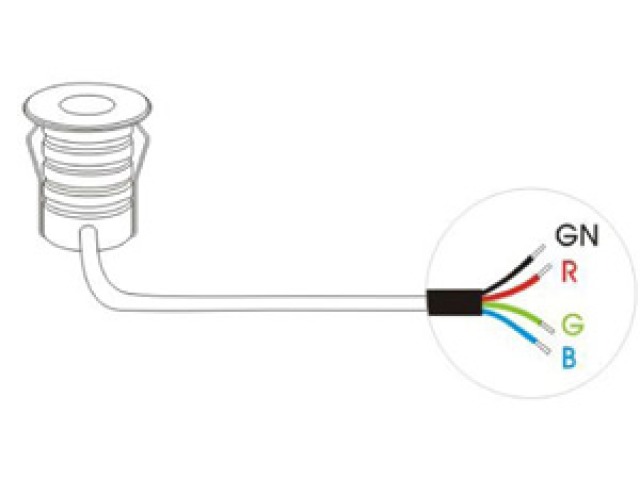

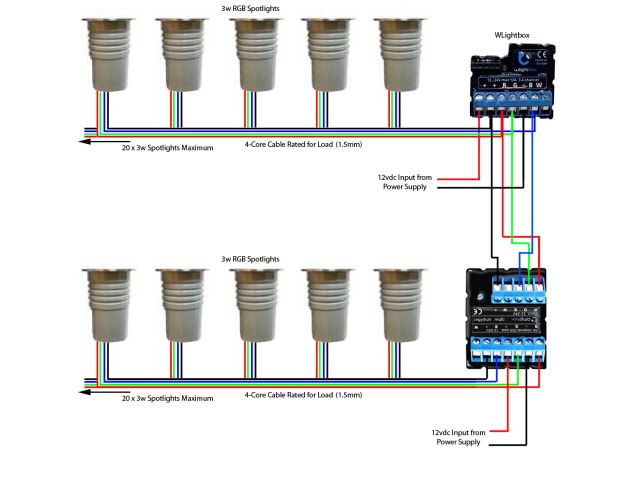

Click here to see the wiring diagrams for the RGB Spotlights

Product Specification

VoltageDual 12/24vdc
LED1 × 3W RGB
Power3W (250ma)
Halogen Equivalent30w
Glass12mm Deep
Beam45 Degrees
IP RatingIP67 (Waterproof, temporary submersion)
Load Bearing1450 KG
Hole Cut Diameter40mm
Minimum Recess Required70mm, 78 mm recommended
Flange Diameter50mm)
Dimensions without sleeve65mm x 40mm
Dimensions with sleeve80mm x 72mm
Lifetime40-50,000 hours
Flange Material304 Stainless Steel
Warranty3 Years
CertificationsCE, RoHS

Product Documents

Accessories

For more information about one of the products below simply click the name of the product.

  Colour Controller Price
ZAP (2.1M Colour) Controller
Use with the Flexidriver for more control, remembers last setting
£38.00


LightBox Smartphone RGB LED Controller
Colour and brightness control from a compatible Phone or Tablet via Bluetooth using a Free App. Capable of powering 20 x 3w RGB Lights directly with more connectable through the Ampbox.
£49.00
Quantity :
Wi-Fi Lightbox Colour Controller (v3)
Colour and brightness control from any Web enabled device over Wi-Fi, this device does not have to be linked to your Router. Capable of powering 20 x 3w RGB Lights directly with more connectable through the Ampbox.
£65.00
Quantity :
ZEN (2.1M Colour) Controller with Remote & Remote/Display
Use with one or more Flexidriver for full control over colours palettes and up to 4 Lighting Zones
£78.00


Flexi Driver (2.1M Colour Driver)
Provides colour phasing, colour can be locked by switching power off then back on
£35.00
Quantity :
Flexi Driver+ (2.1 Million Colour Driver)
Similar to the Flexidriver but has 2 memory presets and has more control. It is like the ZAP and Flexidriver rolled into 1 product.
£46.95
Quantity :
  Power Supplies Price
12.5A Switch Mode In-Line 12vdc Power Supply
This will power up to 46 RGB Spotlight Lights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).
£59.00


12.5A Switchmode 12vdc (Waterproof) Power Supply
This will power up to 46 RGB Spotlight Lights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).
£59.00
Quantity :
5A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
This will power up to 18 RGB Spotlight Lights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).
£21.00


1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector
This will power up to 3 RGB Spotlights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).
£11.50


0.5A Switchmode In-line 12vdc Power Supply
This will power a single RGB Spotlight - for wiring into a lighting circuit (Electrician Required).
£9.50


2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp)
This will power up to 7 RGB Spotlights - The PSU can be plugged into a mains socket.
£9.00


2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
This will power up to 7 RGB Spotlight Lights - The PSU can be plugged into a mains socket, or the plug can be removed and the lead connected to a fused light switch (Electrician Required).
£14.00
