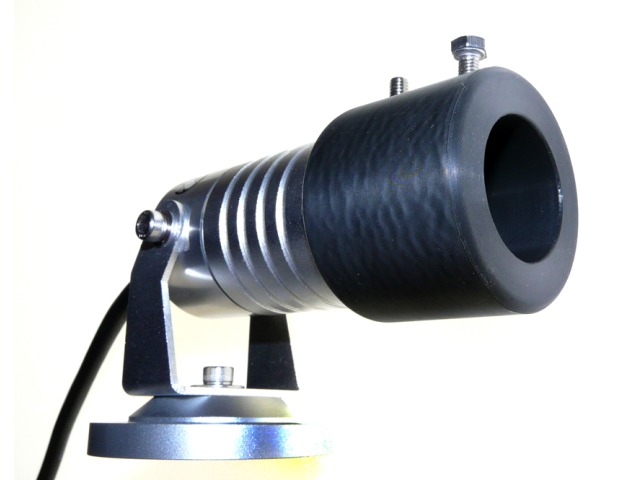

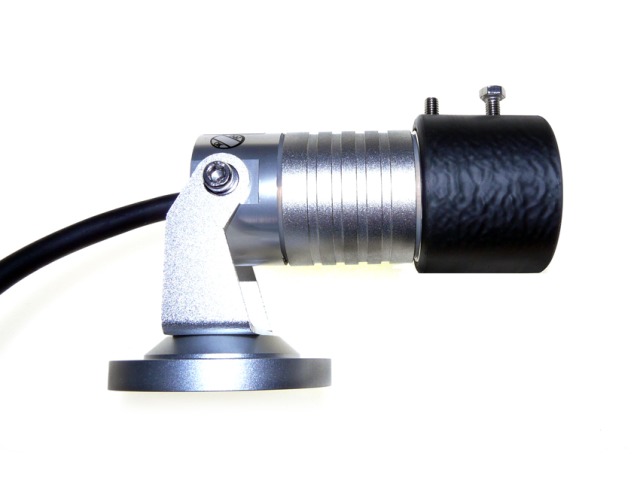

3w LED Fibre Optic Projector - Universal Fit (Waterproof IP67)

Product Code: 3wUFOKRGB

£67.00 inc VAT (£55.83 ex VAT)

Stock Level: In-Stock

Select Colour
Select Coupler size
Quantity :

Automatic Quantity Discount

View accessories for this product


Product Description

We have developed this projector as a universal replacement for customers that already have a Fibre Optic System who are looking to replace their unreliable power hungry Halogen Fibre Optic Projectors.

Costs less than 20p per week to run for 168 hours a week, paying for itself in energy saved in less than 1 year

This replacement Projector is equivalent to around 30 watts of Halogen, which is all that is really needed for a Star Effect. The colours are more vivid and vibrant than Halogen Projectors.

Available in White, Warm White and Colour Changeable (RGBW) options.

Use indoors or outdoors, it is waterproof to IP67 (temporary submersion)

It's wide voltage range makes it suitable to replace projectors in Limousines and other 12v vehicles

There are no moving parts, or cooling fans. The built-in Constant Current Driver make it suitable for use on 12 or 24vdc and compatible with any of our Colour Controllers. The built-in driver ensures highly reliability a long lifetime, a 3 year warranty is included.

When it comes to illuminating End-Lit Fibres a relatively powerful LED equivalent to a 30w Halogen is capable of producing a very effective star effect. Due to the way the human eye perceives points of light a power hungry 50w or 100w halogen is not necessary.

Ideal for replacing halogen projectors used for creating 'Star' Effects in:

  • Ceilings
  • Stairs
  • Tiled Floors & and Walls

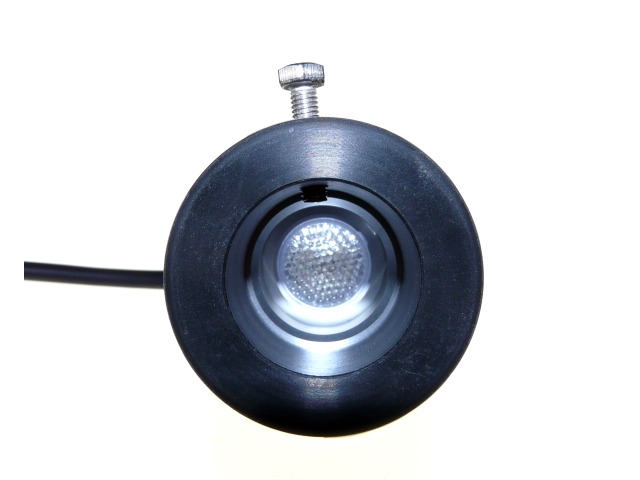

The Coupler will accept any Fibre Harness or Loom Common End up to 30mm Diameter. A simple Stainless Steel bolt secures the Fibre End into place.

If you opt for the White or Warm White version you will only need a 1A 12vdc Power Supply (£11.50) below to power the Projector from the mains from a socket or even a light switch.

For the Colour Changeable option, either the Lightbox (Bluetooth) or the WLightbox (Wi-Fi) will be needed as well. This will give you a choice of 16.7 Million colours via a Freely downloadable App. The App is available for Android, iOS, and Windows Devices.

The App provides full control over brightness, and colour intensity. There is also a speed control for the colour phasing option which can be set to a few minutes or hours.

The Lightbox Controllers are capable of running up to 20 of these Projectors at the same time! We can also create Zones for cross-phasing of colour from one projector to another.

Choosse From RGBW Colour Changeable, Warm White (2800-3000k), and White (4500k)

Product Specification

Voltage RangeDual 12/24vdc
Minimum Working Voltage8vdc
LED1 × 3w White 2800-3000k
1 × 3w Warm White 4500k
1 × 3w RGBW
Coupler Opening25mm (30mm by request)
Halogen Equivalent30w
Power3W (250ma)
IP RatingIP67 (Temporary Submersion)
Diameter42mm
Coupler Diameter50mm
Lifetime40,000 hours
Warranty3 Years
CertificationsCE, RoHS
