Slim LED Module (12vdc)

Product Code: SMLEDM

£1.65 inc VAT (£1.38 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Price per Module

Modules are supplied linked together

Automatic Quantity Discount

Similar Products

Please choose one of the options below for more details

View accessories for this product

Share
Description Specification Accessories

Product Description

Slim Modules are ideal for use where space is limited but where the maximum amount of light possible is required.

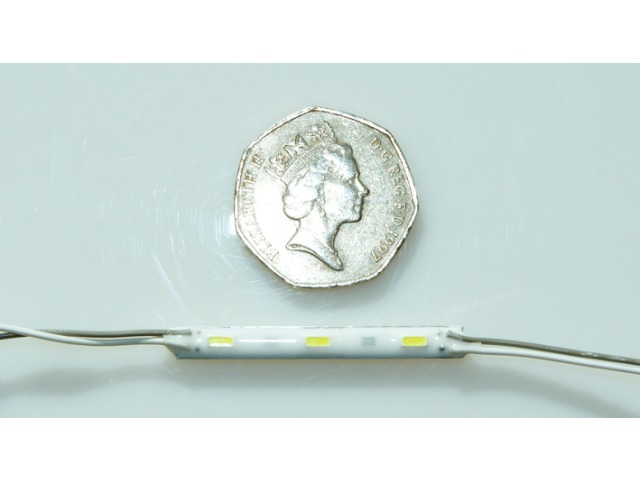

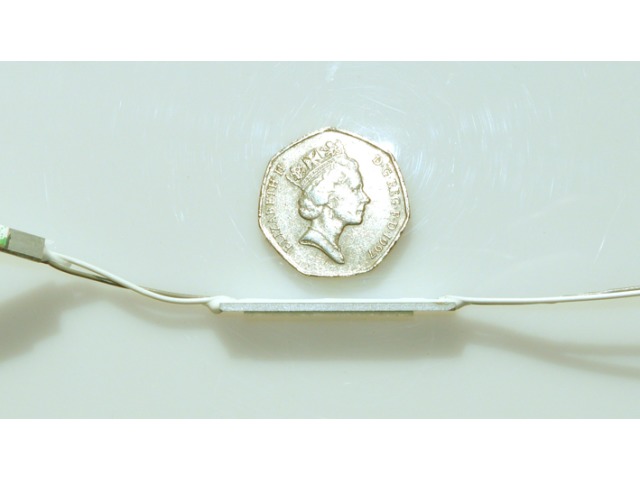

They are just 5mm wide by 3mm deep with a length of 40mm.

Originally designed for sign lighting they can be used indoors or outdoors. They are not limited to lighting signs but have many kinds of uses such as illuminating shelves, alcoves, bar areas, behind speakers, tv's etc.

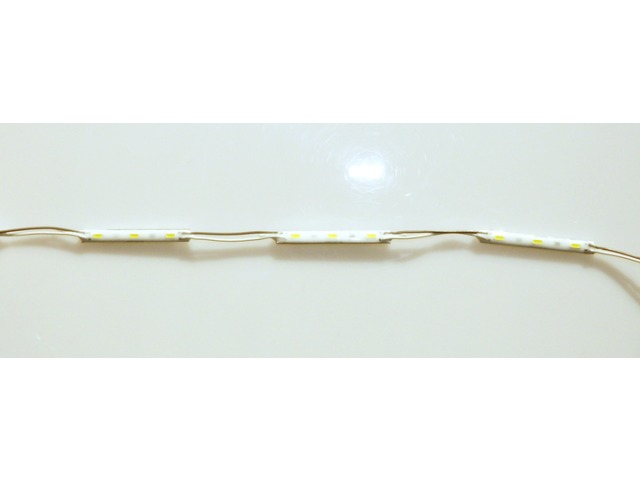

The Modules can be powered as single modules, or linked together in a chain from 1 Module to 40 Modules, where required the
wires to and between the modules can be extended.

Stocked in chains of 20 Modules. Up to 40 Modules can be connected in a single chain.

There are a selection of Power Supplies below for running a single Module to multiple Modules.

3M Self Adhesive backing for fast installation.

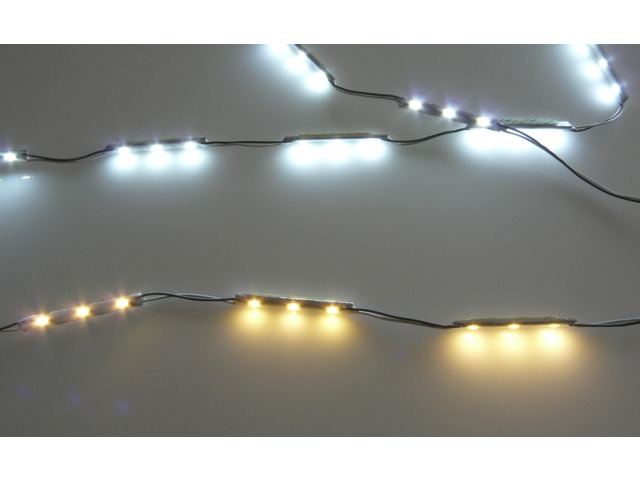

Colours Available: White (6000k), White (3500k)

Product Specification

Voltage12vdc
LED TypeSMD LED, 3 per Module
Power per Chain 20 Modules7.2w
Current Draw per Module30ma (0.03A)
Wire length between Modules32mm
Lifetime50,000 hours
Dimensions40mm x 5mm x 3mm
DurabilityIP65 (Splashproof)
CertificationsCE, RoHS, Fire Retardant Resin UL94

Accessories

For more information about one of the products below simply click the name of the product.

  Power Supplies Price
1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector £11.50


2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp) £14.00


2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp) £9.00


  Dimmers Price
