Product Description

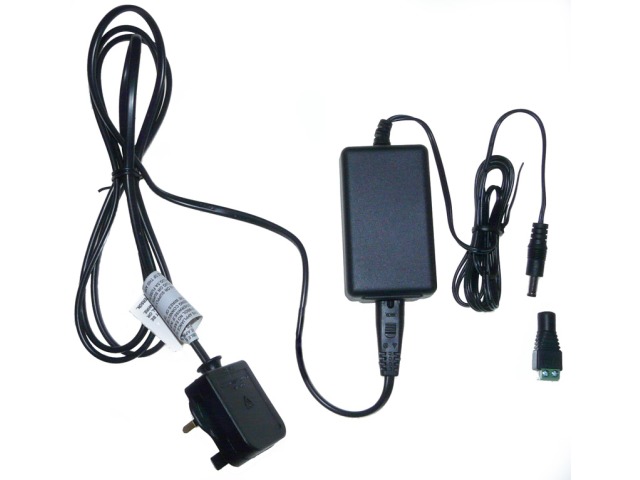

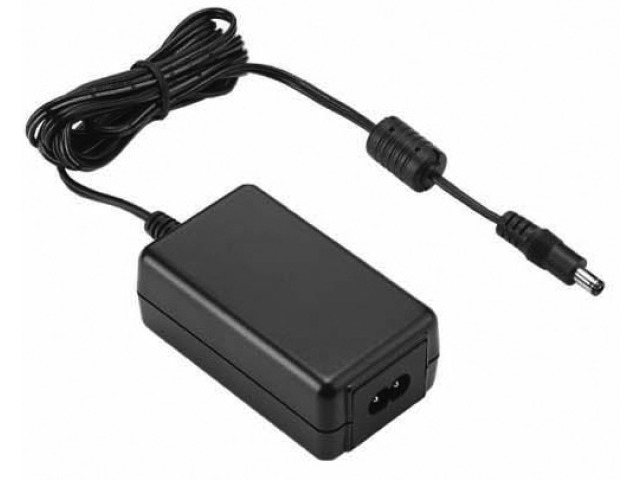

2A 12vdc In-Line Switchmode Power Supply.
A Free DC Connector is included allowing easy connection.
The Power supply has a mains lead with a pre-fitted U.K Plug. The plug can be removed for installations requiring on and off switching via a light switch (this should be performed by a qualified electrician).
Use only in a Dry Location
Product Specification
| Rated Output Voltage | 12Vdc |
| Current Max. | 2A |
| Current Min. | 0A |
| Power (watts) | 24W |
| Full Input Voltage Range | 90 - 264Vac |
| Dimensions | 88mm (L) x 50mm (H) x 34mm (W) |
| 12vdc Lead Length | 1.8M |
| Mains Lead Length | 2M |
| Load Regulation | + / -5% |
| M.T.B.F | 100,000 hours Min. at 25 Deg C |
| Approvals | CE & UL, EMI: RCM, CE / FCC Class B Conduction & Radiation |
