Nano LED Module (12vdc)

Product Code: NLEDM

£0.99 inc VAT (£0.83 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Price per Module

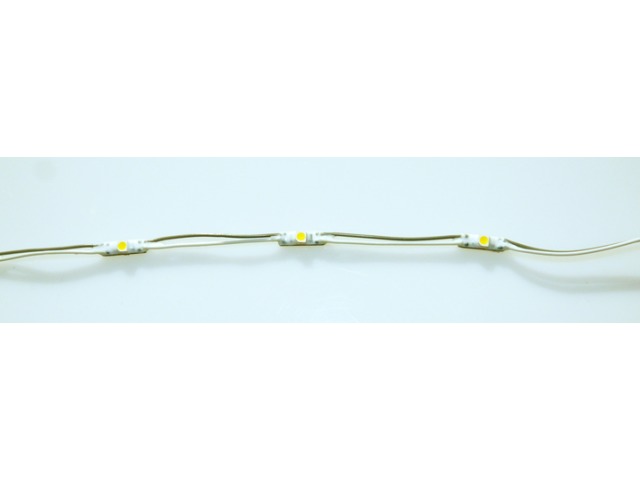

Modules are supplied linked together

Automatic Quantity Discount

Similar Products

Please choose one of the options below for more details

View accessories for this product


Product Description

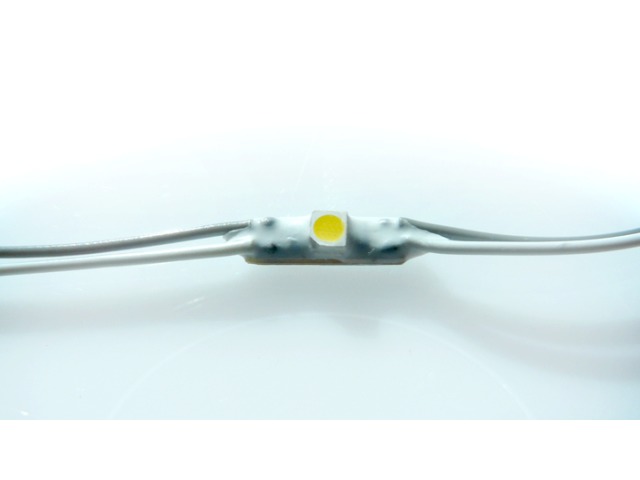

Nano LED Modules are our smallest 12v Modules currently available with a length of just 1cm.

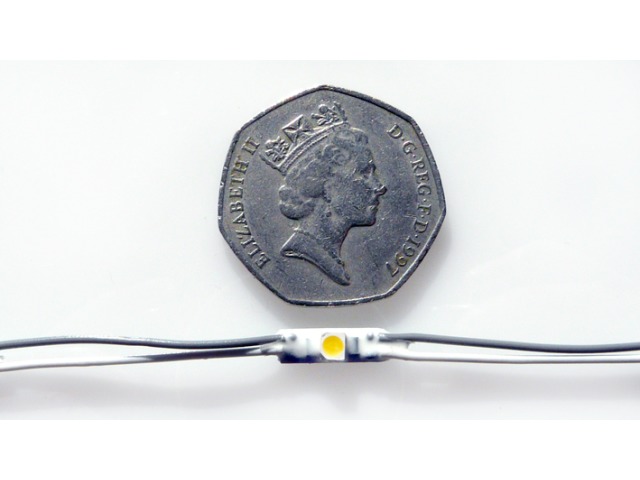

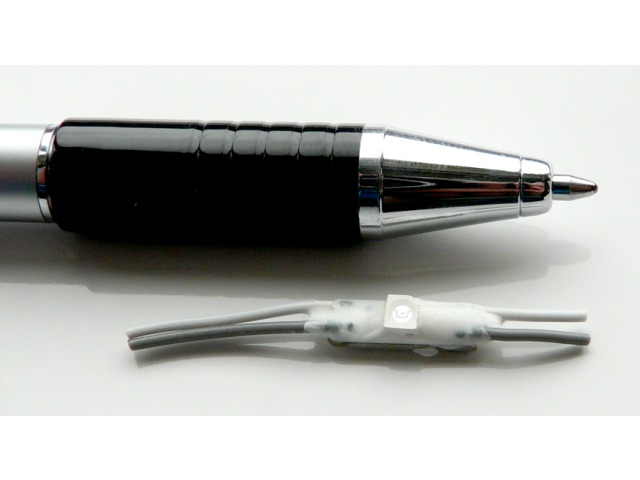

It's tiny size (around that of a baked bean) makes it suitable for use in the tightest spaces such as in sign letters, product display cases, edge lighting acrylic etc.

1 - 30 Modules can be powered from a battery or 12vdc power supply (transformer) below. The wires between the modules can be extended where the installation calls for it.

As with our other modules it is even IP65 (splashproof) so is durable enough to use indoors or outdoors.

The simplicity in it's design has made the Pico Module very afforable.

3M Self Adhesive backing for fast installation.

Colours available: White (8000k), Warm White (3500k)

Product Specification

Voltage12vdc
LED TypeSMD LED, 1 per Module
Power for 30 Modules3.24w
Current Draw per Module9ma
Dimensions10mm x 4mm x 3mm
Wire length between Modules32mm
Lifetime50,000 hours
DurabilityIP65 (Splashproof)
CertificationsCE, RoHS, Fire Retardant Resin UL94

Accessories

For more information about one of the products below simply click the name of the product.

  Power Supplies Price
1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector £11.50


2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp) £14.00


2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp) £9.00


  Dimmers Price
