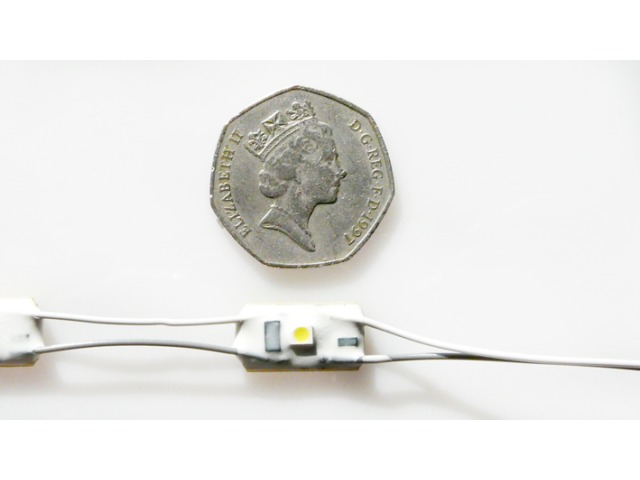

Pico LED Module (12vdc)

Product Code: PLEDM

£1.60 inc VAT (£1.33 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

Price per Module

Modules are supplied linked together

Automatic Quantity Discount

Similar Products

Please choose one of the options below for more details

View accessories for this product

Product Description

Pico Modules are very compact and are both current and voltage regulated with an on-board transistor and resistor.

Current and voltage regulation is vital for providing a long lifetime in excess of 50,000 hours.

As with our other modules they can be powered individually or as a chain with either a battery or 12vdc transformer (see below).

They are the choice of professionals for use in sign lighting and other applications in or outdoors where a long trouble-free lifetime is essential.

They can be supplied by us in a chain of 30 Modules.

Up to 90 Modules can be connected in a single chain.

3M Self Adhesive backing for fast installation.

Colours available: White (8000k), Warm White (3500k)

Product Specification

LED TypeSMD LED, 1 per Module
Power per Chain 30 Modules7.2w
Current Draw per Module20ma (0.02A)
Dimensions18mm x 10mm x 3mm
Wire length between Modules28mm
Lifetime50,000+ hours
DurabilityIP65 (Splashproof)
CertificationsCE, RoHS, Fire Retardant Resin UL94
