Our Litewave ® Professional LED Strip includes a 6 Year Warranty for commercial or domestic use. Bespoke diagrams. Email or phone for a free quote

Click to enlarge

Constant Current RGBW LED Strip (24vdc) (60 LEDs/M)

Product Code: C/C-RGBW60LED-S(24v)

£105.00 inc VAT (£87.50 ex VAT)

Stock Level: In-Stock

Select Length
Quantity :
Lengths & Prices:
1 Meter£24.00
2 Meters£46.00
3 Meters£67.00
4 Meters£86.00
5 Meters£105.00
View accessories for this product


Product Description

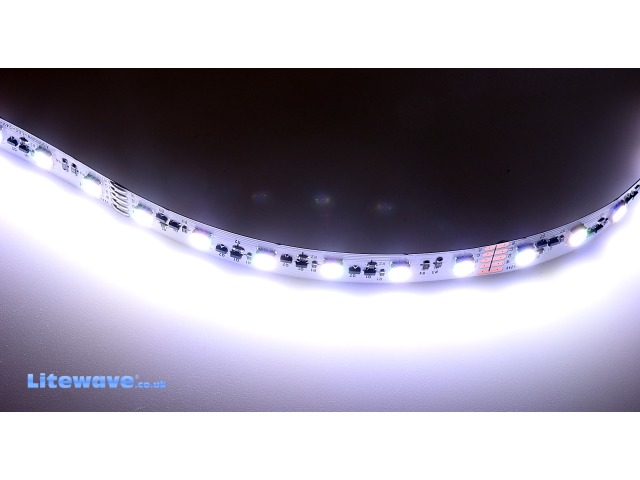

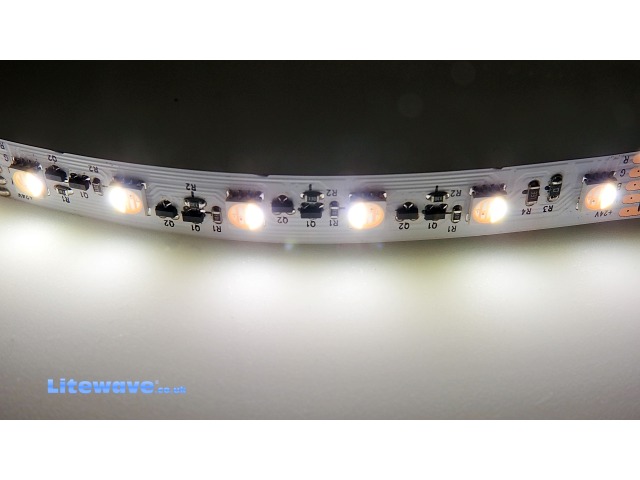

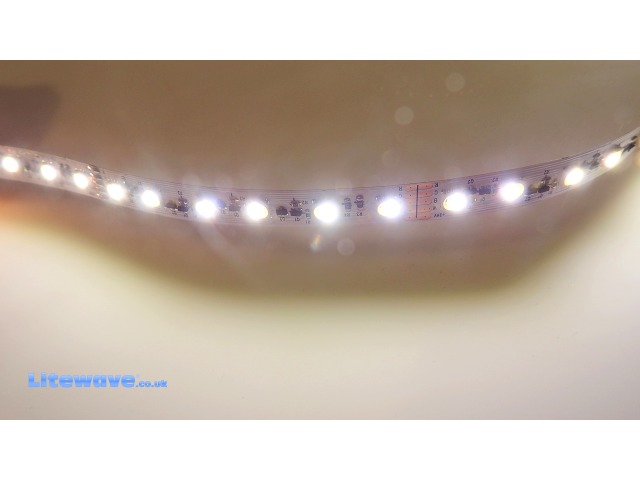

Our Litewave® Professional RGBW LED Strip has an additional White element on the Chip to give an even greater range of colours - 4.29 Billion in total using our Controllers. This is the brightest in our range of Colour Changing Strips.

As with our other Litewave ® Pro Strip, this RGBW Strip is designed for use in architectural applications where long life is required. Litewave Pro Strip is designed with On-board Constant Current Drivers, so 50,000 hours+ can be expected.

This Strip is usually used when an extremely bright effect is necessary, or for use in a profile with a depth of at least 15mm to create a seamless light without any dots. Use with our deep Profiles towards the bottom of the page to achieve lighting with a Neon appearance.

Capable of displaying 4.29 Billion different visible colours including cool whites & warm whites

The LED Strip is 24vdc to allow long runs with minimal voltage drop.

Constant Current RGBW (Colour Changeable) LED Strip has on-board constant current drivers, regulating the currrent and voltage to the LEDs. This ensures maximum operating brightness and a lifetime in excess of 50,000 hours.

Many online retailers make wild claims of up to 100,000 hours, this is highly unlikely without a significant decrease in brightness or failed LED Emitters unless Constant Current Electronics are used.

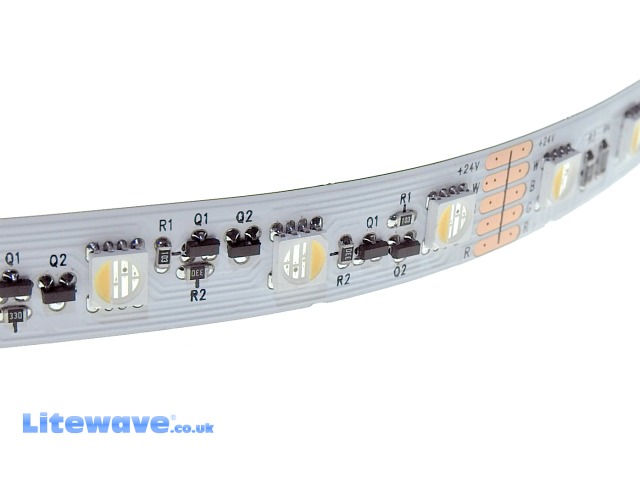

An additional 130 Components per Meter are used to protect each of the 4 emitters within every LED.

Advantages:

  • Uniform colour and brightness
  • Longer distances between Colour Drivers and Controllers without the small voltage drop affecting the brightness and colour
  • Reliable
  • Long Lifetime

Capable of displaying any colour including white and warm whites when used with one of our colour controllers below.

This is proven technology and we have already been supplying it to our installers for several years.

Each length includes a 1M flying lead for easy connection to a colour controller.

Our Professional Constant Current Strip has the Constant Current Circuitry built into the circuit with the LEDs, so it can be supplied with 24vdc from any constant voltage Transformer.

You will also need a Power Supply, shown below.

Should you require LED Strips pre-made to fit to your kitchen, roof lights, alcoves or coving, we can supply a system made to your exact requirements, with wires pre-fitted saving you time & money. Corners and room size are no problem Free Quote

Product Specification

Working Voltage Range24vdc
LED Type5050 RGBW
LED BrandEpistar with PLC Completion
Max. Brightness per Metre~850Lm (RGBW)
Current per Meter875mA
Light Dispersion120-140 °
Power Draw per Meter21 Watts
Width of LED Strip12mm
Depth of LED Strip2.2mm
Lengths available1 - 5M
Expected Lifetime>50,000 hours
LEDs per Meter60
LED Spacing16.6mm
Cutting Points100mm
CertificationsCE, RoHS
IP RatingNone
Warranty6 Years

Accessories

For more information about one of the products below simply click the name of the product.

  Colour Controller Price
LightBox Smartphone RGB LED Controller
Control via App, using Bluetooth
£49.00
Quantity :
Wi-Fi Lightbox Colour Controller (v3)
Control the Strip from App from anywhere in the world, Alexa & Google Home Compatible
£65.00
Quantity :
Ampbox for use with Lightbox (v3/v4)
Use when you need to run more Strip than the WiFi Lightbox, or Lightbox alone are capable of - around 10 Metres.
£29.50
Quantity :
  Power Supplies Price
6.25A Switchmode 24vdc (150w) (Waterproof) Power Supply
No plug, for wiring to a light switch. This PSU can power upto 6 Metres of our RGBW 10 LED/M Strip
£59.00
Quantity :
Meanwell 8.33A 24vdc (200w) (Waterproof) Power Supply
No plug, for wiring to a light switch. This PSU can power upto 8.5 Metres of our 60 LED/M Strip
£69.00


24vdc 10A (240w) Meanwell Power Supply
No plug, for wiring to a light switch. This PSU can power upto 10 Metres of our RGBW 60 LED/M Strip
£97.00
Quantity :
24vdc 1A (24w) Waterproof (IP67) Power Supply
No plug, for wiring to a light switch. This PSU can power upto 1 Metre of our RGBW 60 LED/M Strip
£15.00
Quantity :
24vdc 2.5A (60w) Waterproof (IP67) Power Supply
No plug, for wiring to a light switch. This PSU can power upto 2.5 Metres of our RGBW 60 LED/M Strip
£26.00
Quantity :
24vdc 4.16A (100w) Waterproof (IP67) Power Supply
No plug, for wiring to a light switch. This PSU can power upto 4 Metres of our RGBW 60 LED/M Strip
£42.00
Quantity :
