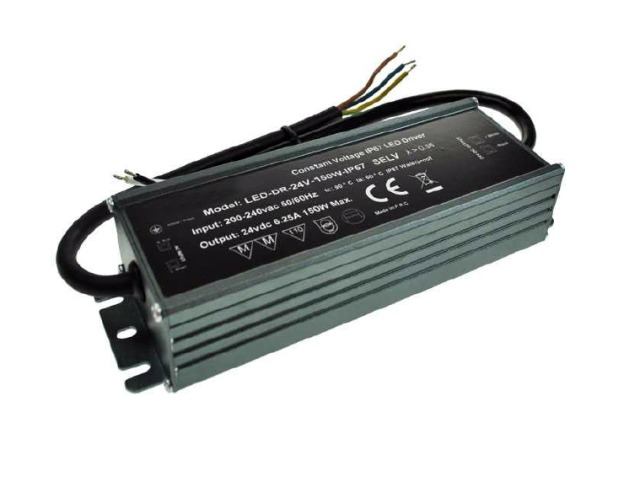

6.25A Switchmode 24vdc (150w) (Waterproof) Power Supply

Product Code: SM6.25APSU/24v/IP67

£59.00 inc VAT (£49.17 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity

PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.


Share
Description Specification

Product Description

The latest addition to our Waterproof range of power supplies. This is our 6.25A (150w) 24vdc Switch Mode (Indoor/Outdoor) Power Supply for hard-wiring to wall switch.

Designed specifically for powering LED Lighting such as our 3w Spotlights and 24vdc Constant Current LED Strip Lighting.

Product Specification

Input Voltage200-277 VAC
Output Voltage24vdc
Maximum Output Current6.25A
Maximum Power150w

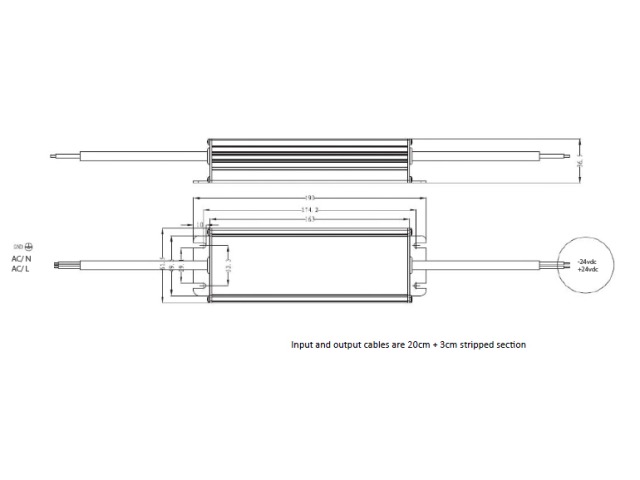

Dimensions190mm x 61.5mm x 36.5mm
Built-in ProtectionsShort-Circuit, Overload, Open-Circuit, Over-Temp
DurabilityIP67
Warranty2 Years
CertificationsCE, RoHS, SELV
