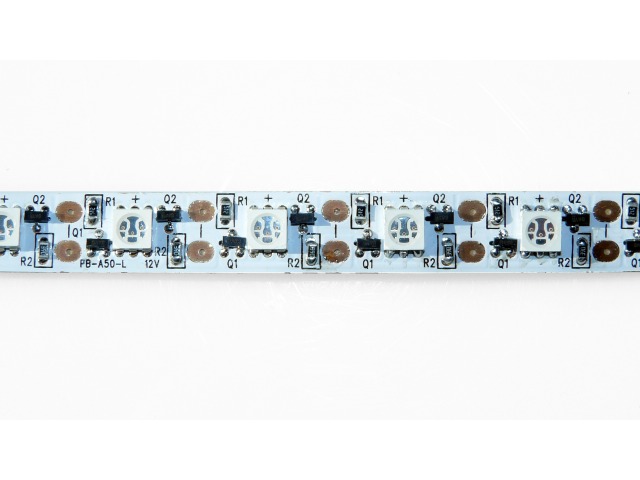

Constant Current LED Strip (10-15vdc) (60 LEDs/M) - Amber

Product Code: C/C-LEDSTRIP60

£19.50 inc VAT (£16.25 ex VAT)

Stock Level: In-Stock

Select Length
Quantity :

6 Year Commercial & Domestic Warranty

Lengths & Prices:
1 Meter£19.50
2 Meters£37.00
View accessories for this product

Share
Description Specification Accessories

Product Description

Constant Current LED Strip is the preferred choice for professional installations, it has a very long trouble-free lifetime.

The best quality available in the U.K, if not Europe

Current regulation with transistors and resistors makes a lifetime beyond 50,000 hours possible, far exceeding standard LED Strip.

3 Year Warranty

As with our other LED Strips this Regulated Current Strip can be powered from our standard 12vdc Power Supplies (Transformers).

There are cutting points at every LED (16mm). Each LED is in effect it's own circuit.

Where required the Strip can be cut as short as a single LED.

The LED Strip can be cut into the necessary lengths and wires can be soldered from one length of strip to another for installations in cabinets, shelves and the like. This is a much neater way of running the LED Strip so that only one length of cable is run to one power supply.

It can be dimmed either on the 12v input side to the Strip or by using one of our Mains Dimmable Transformers (below) which makes it possible to use a wall dimmer to control the brightness of the LED Strip. We recommend an LED Wall Dimmer such as the Varilight V-Pro (available below).

Also available in White (6000k) or Warm White (3500k), Red, and RGB

Regulated Current and Voltage LED Strip is compatible with our Aluminium Profiles allowing you to custom make your lighting fixture to your exact requirements.

Product Specification

Voltage10-15vdc
LED TypeSMD Triple Chip
LED BrandEpistar
Current per Meter300mA
Light Dispersion120-140 °
Power Draw per Meter7.2 Watts
Width of LED Strip10mm
Depth of LED Strip2.2mm
Lengths available1-2M
Brightness Lumens /M~450
Expected Lifetime>50,000 hours
LEDs per Meter60
Cutting Points16mm
CertificationsCE, RoHS
Warranty3 Years

Accessories

For more information about one of the products below simply click the name of the product.

  Power Supplies Price
5A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
This PSU can be plugged in or wired to a Fused Light Switch, it can power up to 15 Meters of Constant Current LED Strip 		£21.00


1A Switchmode In-Line 12vdc Power Supply, Free (5 Amp) DC Connector
This PSU can be plugged in or wired to a Fused Light Switch, it can power up to 3 Meters of Constant Current LED Strip 		£11.50


4A 12vdc In-Line Transformer - Mains Dimmable
For dimming via a Wall Dimmer, it can power from 3 to 13 Metres of LED Strip 		£36.00


7A 12vdc In-Line Transformer - Mains Dimmable
For dimming via a Wall Dimmer, it can power from 5 to 22 Metres of LED Strip 		£54.00


2A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)
This PSU can be plugged in or wired to a Fused Light Switch, it can power up to 6 Meters of Constant Current LED Strip 		£14.00


2A Switchmode Plug-top 12vdc Power Supply, Free DC Connector (5 Amp)
For plugging into a wall socket, it can power up to 6 Meters of Constant Current LED Strip 		£9.00


3A 12vdc In-Line Transformer - Mains Dimmable
For dimming via a Wall Dimmer, it can power from 3 to 10 Metres of LED Strip 		£33.00

This product is currently out of stock.
5.5A 12vdc In-Line Transformer - Mains Dimmable
For dimming via a Wall Dimmer, it can power from 5 to 17 Metres of LED Strip 		£49.00


  Dimmers Price
Varilight V-Pro LED Dimmer Module (120w)
For dimming, replaces a standard wall dimmer module. It must be used in conjuction with one of our Mains Dimmable Transformers 		£17.50
