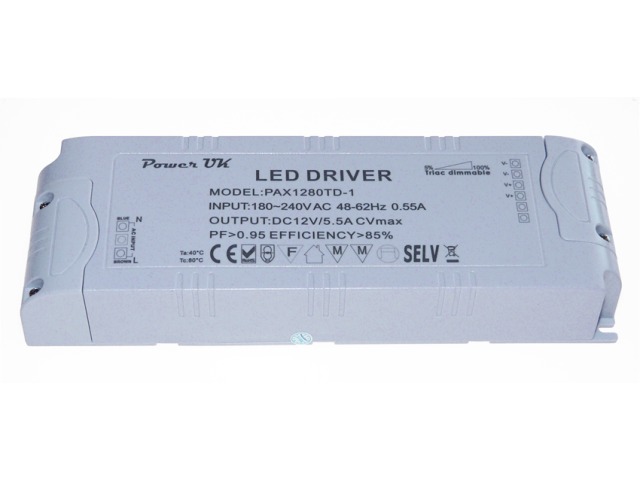

5.5A 12vdc In-Line Transformer - Mains Dimmable

Product Code: 5.5APSU-D

£49.00 inc VAT (£40.83 ex VAT)

Stock Level: In-Stock


View accessories for this product

Share
Description Specification Accessories

Product Description

This Transformer allows brightness control via a wall dimmer of our 12v Light Sources such as our Samsung LED Strip and Constant Current LED Strip.

We recommend using this with high quality Dimmers such as the Varilight V-Pro - available towards the bottom of this page.

Our Mains Dimmable Transformers are compatible with:

  • Phase Dimming / AC Dimming
  • Compatible with Trailing or Leading Edge Dimmers such as:
  • Varilight Dimmers
  • Lightwave RF LED Dimmers

Product Specification

VoltageMains 180-240vac
Output voltage0-12vdc
Maximum Current5.5A
TypeConstant Voltage Mains Dimmable PSU
Dimensions190mm (L) 64mm (W) 29mm (H)
IP RatingNone
CertificationsCE
EN55022
EN55015 Class B
EN60958
EN61547, ENVS024
EN6100-4-2/3/4/6/8/11
EN61000-3-2

Accessories

For more information about one of the products below simply click the name of the product.

  Dimmers Price
Varilight V-Pro LED Dimmer Module (120w) £17.50
