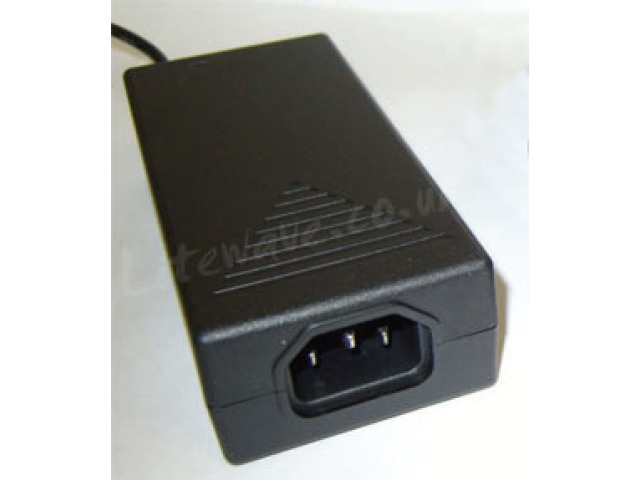

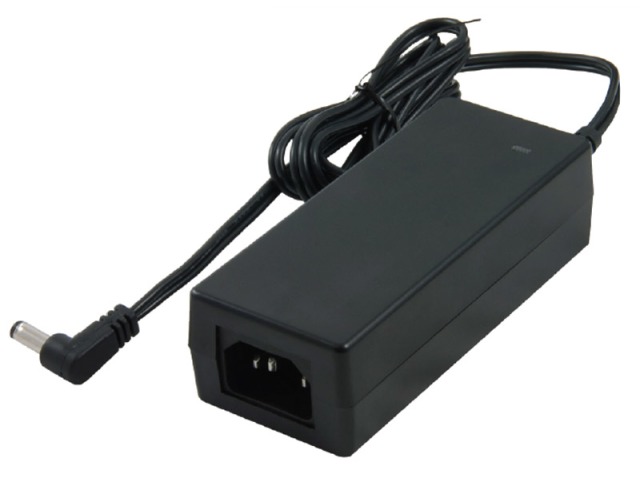

5A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp)

Product Code: SM5APSU/DC

£21.00 inc VAT (£17.50 ex VAT)

Stock Level: In-Stock



Share
Description Specification

Product Description

5A 12vdc Switchmode Power Supply.

A Free DC Connector is included allowing easy connection.

A Mains Power Lead (1 Meter) with U.K Plug is supplied.

The plug can be removed for installations requiring on and off switching via a light switch (this should be performed by a qualified electrician).

Use only in a Dry Location

Product Specification

Rated Output Voltage12Vdc
Current Max.5A
Current Min.0A
Power (watts)60W
Full Input Voltage Range90 - 264Vac

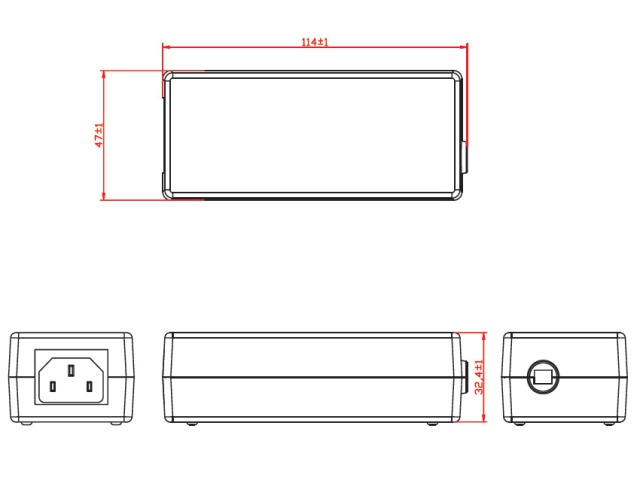

Dimensions114 (L) x 47mm (H) x 33mm (W)
12vdc Lead Length1M
Mains Lead Length1M
ApprovalsFCC Class B & CE, UL/CUL, GS, RCM & PSE, RoHS
