Colour Changing (RGB) Spotlight / Spike Lights Wiring guide

This guide shows how our RGB Spotlights / Spike Lights are wired in parallel to a Colour Controller and Transformer.

There are 2 schematics on this page, one is for control by Bluetooth using a Lightbox and the other Wi-FI using the WLightbox

Control via Bluetooth (6-10M operating range)

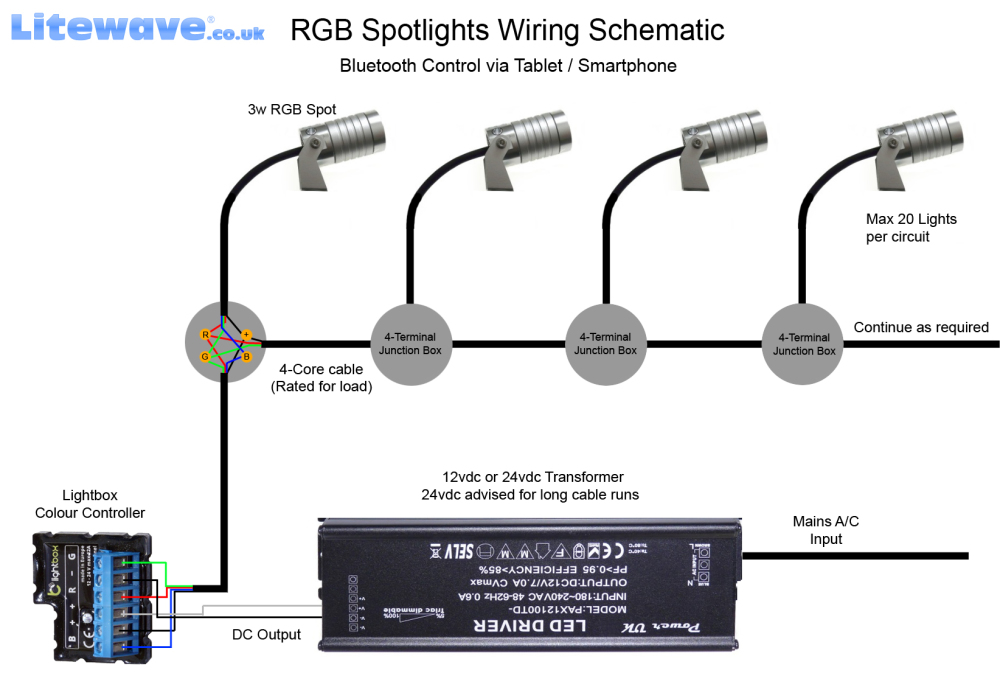

RGB Spotlights wiring guide for connection to a Lightbox

Control via Wi-Fi (Worldwide operating range)

RGB Spotlights wiring guide for connection to a WiFi Lightbox (WLightbox)
