LED Step Light (12vdc)

Product Code: SCLEDDSL

£7.85 inc VAT (£6.54 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :
Quantity Prices:
2 for£7.65 each
5 for£7.45 each
10 for£6.95 each
20 for£6.50 each

Similar Products

Please choose one of the options below for more details

View accessories for this product View Documents

Product Description

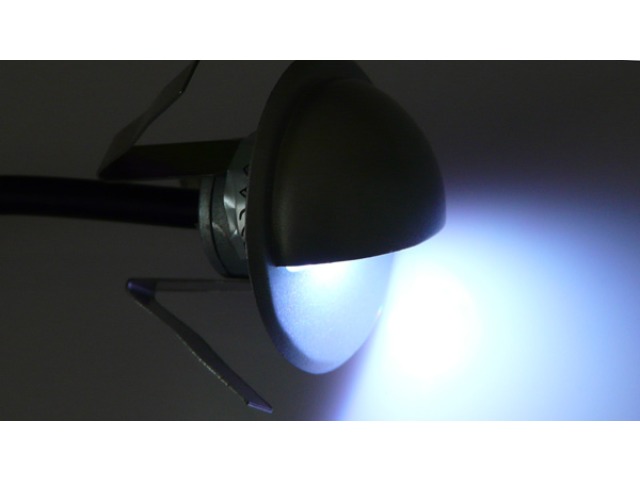

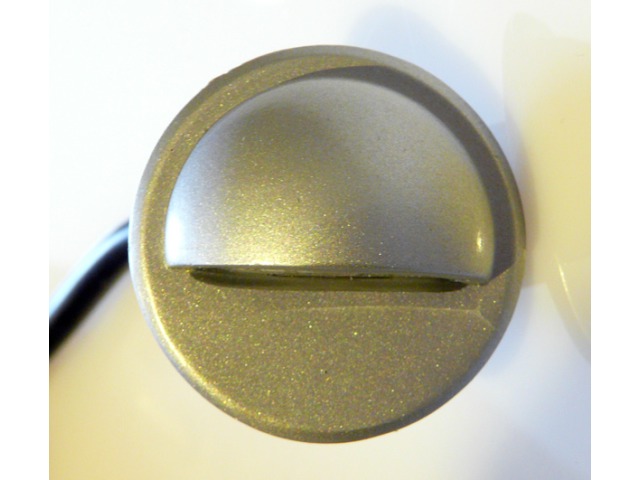

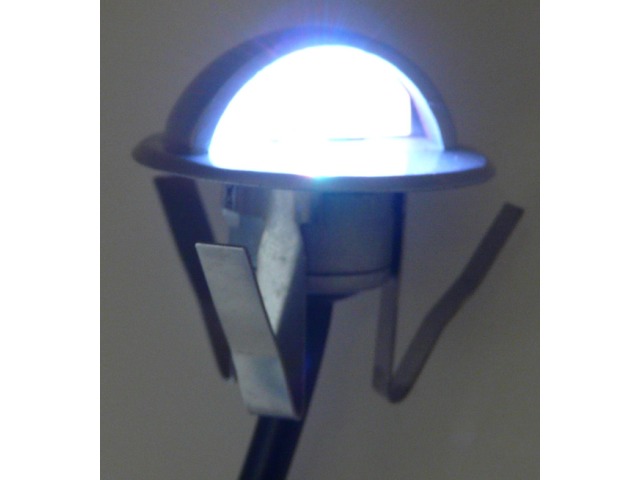

Ideal for where you want to create a subtle wash of light on Stairs, steps and Plinths.

Suitable for use Indoors or Outdoors

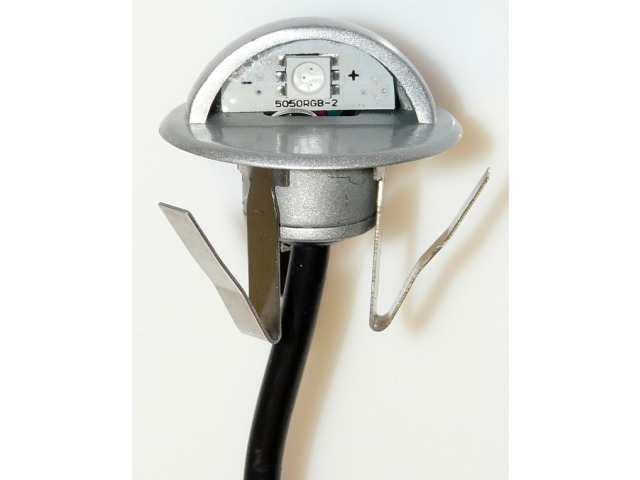

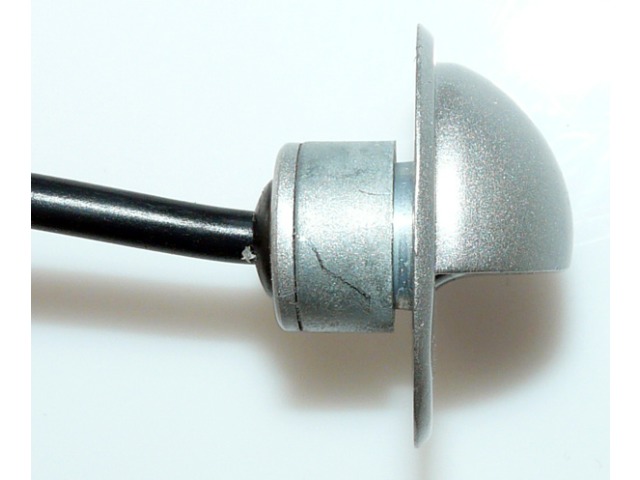

The LED is coated with a clear resin and encased in a rugged housing which fits neatly into a 18mm hole. The LED itself is a single 3-Diode SMD Chip.

Available in White or Warm White

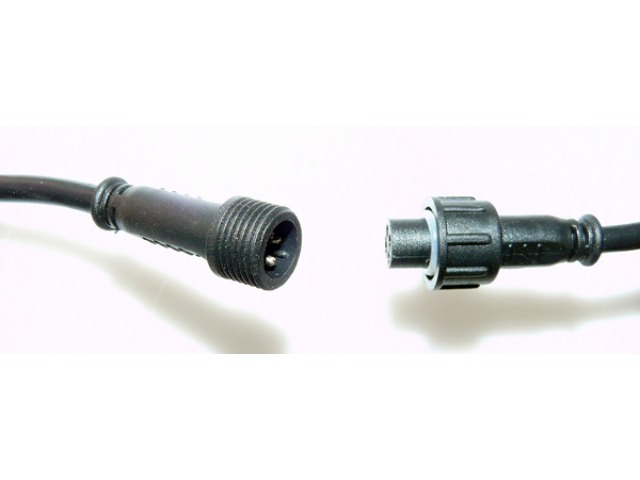

A T-Cable is stocked enabling quick and easy installation of multiple lights, along with 1M extension cables, shown below.

There are a choice of 3 Power Supplies, a Plug-top type for plugging directly into a mains socket or an In-Line type for Wiring to a Light Switch. The 1A PSU can run up to 14 Step Light Lights, and the 2A PSU can run up to 30 of them.

Have them switch on automatically when you enter the room or stairs by using the Ceiling PIR Motion Sensor (below).

Product Specification

Max. Current30ma
LED Type5050 SMD
LED Power0.36 Watts
Lifetime30,000-40,000 hours
Cut out Diameter18mm
Flange Diameter26mm
Recess Depth Required to fit LED36.5 mm
Cable Length1M
DurabilityIP65 (Splashproof)
MaterialEnamel coated Steel
CertificationsCE, RoHS
