ICELED UFO LED Tubes (V2)

Purchase Options

Option Price
ICELED UFO LED Tubes (V2) £49.75
ICELED UFO LED Tube (V2) - 750mm £69.50
ICELED UFO LED Tube (V2) - 1100mm £99.50
ICELED UFO LED Tube (V2) - 1450mm £129.50
ICELED UFO LED Tube (V2) - 400mm £49.75

Designed & Manufactured in the U.K

View accessories for this product View Documents


Product Description

Originally designed for use under vehicles the ICELED UFO Tubes are extremely durable and are suitable for use indoors or outdoors including architectural, stage, and effect lighting.

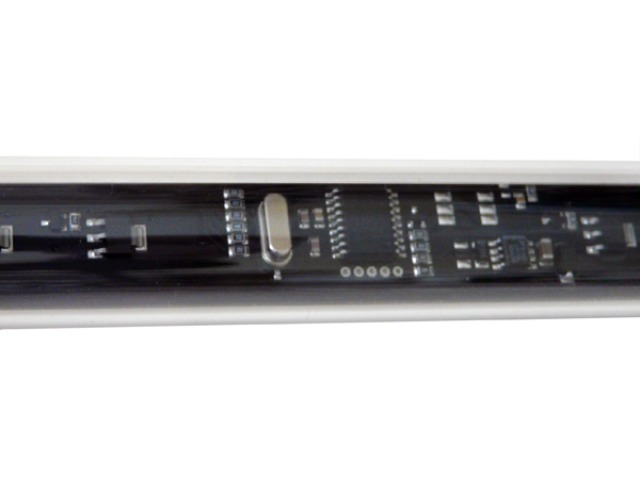

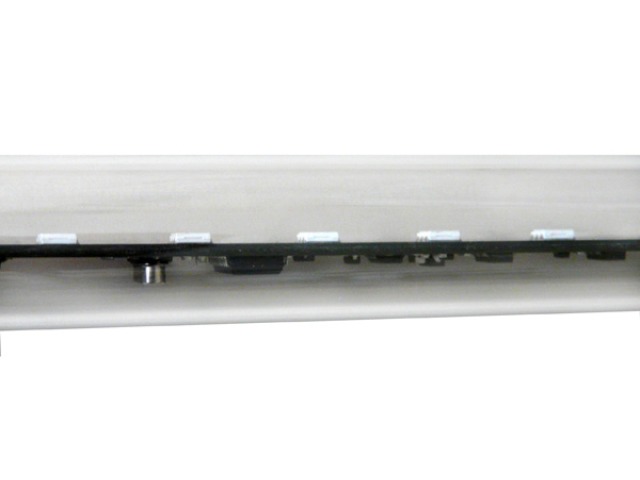

The Tube is made of tough polycarbonate protecting the circuit within it.

The visible portion of each tube is illuminated by one or more standard 35cm 3-pixel sections. End-caps and cable entry add a total of 5cm to each tube giving the following final lengths for installation clearance allowances:

  • 40cm (1 section, 3 pixels)
  • 75cm (2 sections, 6 pixels)
  • 110cm (3 sections, 9 pixels)
  • 145cm (4 sections, 12 pixels)

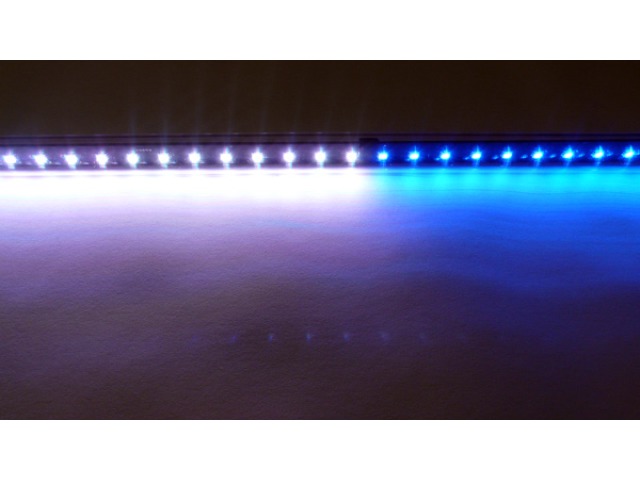

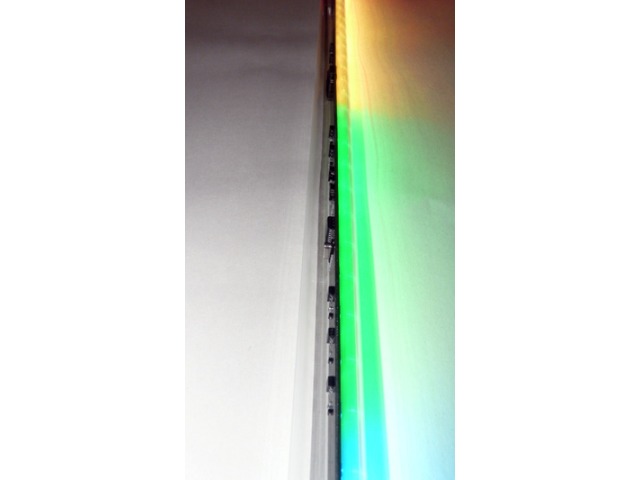

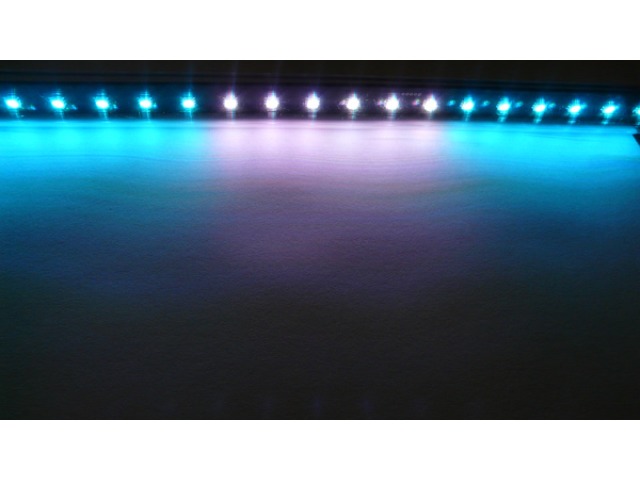

The LED Pixels are individually controllable and can be addressed to scan, sweep, chase, colour phase or stay on a fixed colour.

Each of the LEDs are grouped into separate pixels that can simultaneously display any of 2,097,152 different colours. Resolution enhancement technology employed by the UFO ECU multiplies the effective number of these pixels by a factor of over one-hundred so that patterns run in a seamless fashion for incredibly fluid effects.

Each tube includes 5 Meters (16') of robust cable.

For professional control we recommend using the DMX 512 Bridge.

For standard use with a set of predefined scan patterns and chases the ZAP or UFO Controller (below) are more than sufficient.

Tubes Lengths available:

  • 400mm
  • 750mm
  • 1100mm
  • 1450mm

Product Specification

Voltage12 Volts DC
Min and Max Voltage8-18vdc
Max. Current per 35cm section0.3 Amps
Typical current per 35cm section0.15 Amps
Beam angle120 degrees
Data acceptedZAP+ Controller
ZEN Controller
UFO Controller
DMX via DMX 512 Bridge
CertificationsCE, RoHS

Product Videos

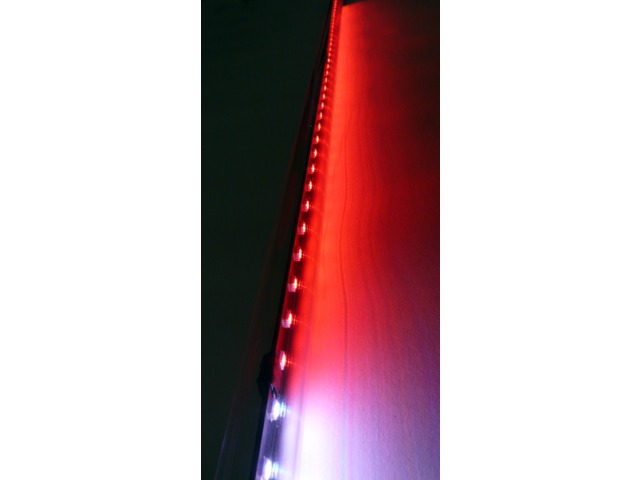

The video below is of a 4Ft 8" Tube connected to a UFO Controller

Product Documents

Accessories

For more information about one of the products below simply click the name of the product.

  Colour Controller Price
ICELED DMX512 Bridge £78.00


ICELED ZAP+ Digital Controller £38.00


ICELED UFO (v7) Controller with Remote & Remote Eye/Display £78.00


  Power Supplies Price
5A Switchmode In-Line 12vdc Power Supply, Free DC Connector (5 Amp) £21.00
