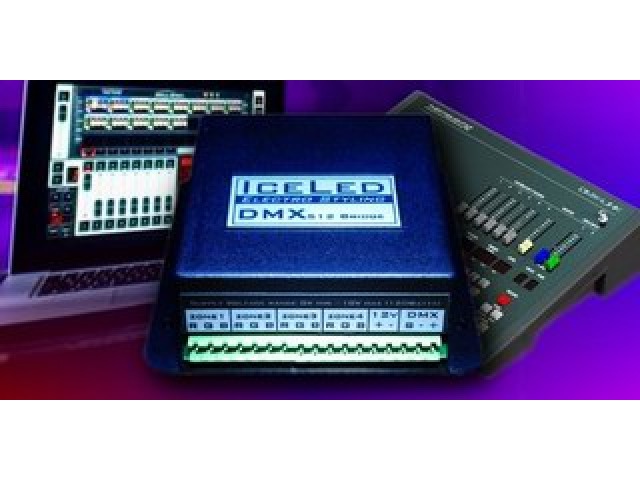

ICELED DMX512 Bridge

Product Code: ICEDMX

£78.00 inc VAT (£65.00 ex VAT)

Stock Level: In-Stock

Similar Products

Please choose one of the options below for more details

View accessories for this product View Documents

Product Description

The ICELED DMX Bridge allows any of our RGB (Colour Changing Products) to be controlled via a DMX Controller.

Normally every DMX512 light source has to have its own 9-bit channel address that parks it at one of the 512 possible addresses.

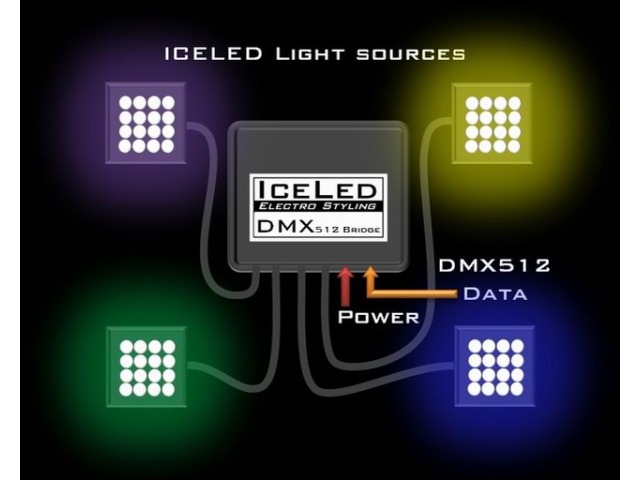

The DMX Bridge only needs one address to base four light sources from and can supply both power and data down one simple cable to each light source.

This DMX512 Bridge serves as a distribution point for both power and data greatly simplifying the task of installing and addressing multiple light sources.

Four independent zones of control are available occupying a total of 12 sequential DMX channel addresses.

Each zone is assigned three DMX channels to provide separate control over the individual colour components. For maximum programming flexibility one of two different colour models can be selected using a DIP switch:

Red, Green, Blue or Hue, Saturation, Brightness.

  • Connects to all our ICELED light sources including our other RGB (Colour Changing Products) when used with a Flexidriver
  • Can power up to 10A of LED Lighting
  • Compatible with any DMX512 Console
  • Can be run with Control 4, and ENTTEC Drivers

Product Specification

Nominal supply voltage12 Volts DC
Standby current drain0.02 Amps (all channels zero)
Maximum load current10 Amps
Data inputDMX512
Dimensions120mm x 112mm x 45mm
