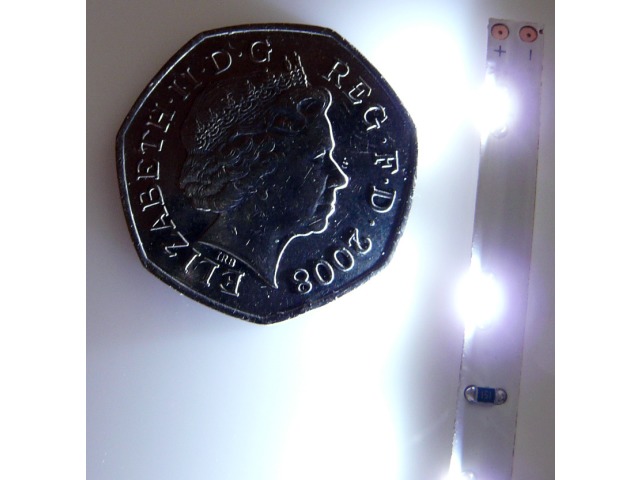

  • Edge Lit LED Strip Size Comparison

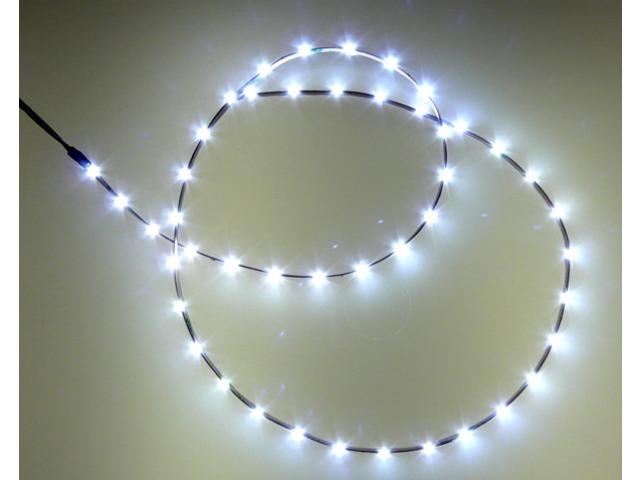

  • White LED (6000k) on Edge Lit LED Strip

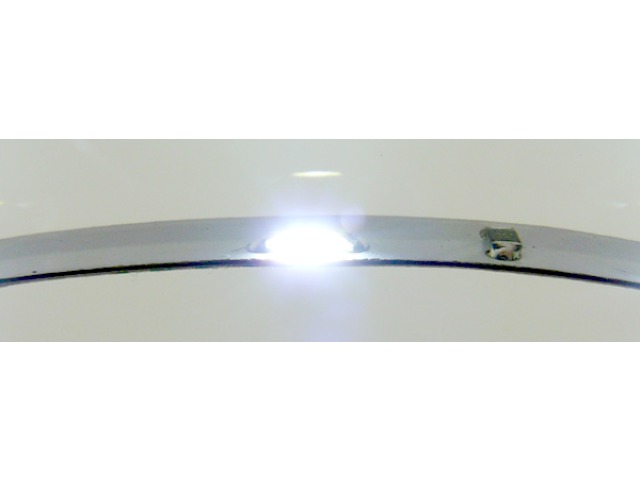

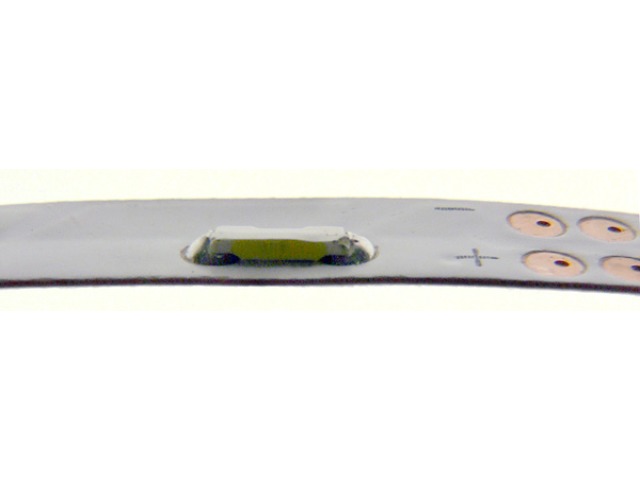

  • Close up picture of LED on Edge Lit LED Strip

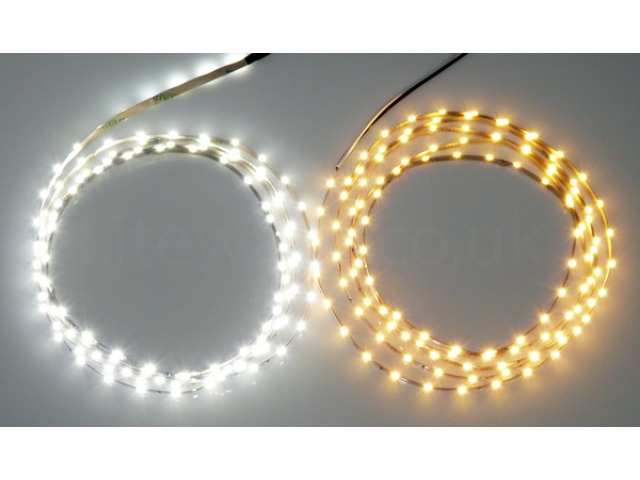

  • Comparison between White and Warm White LEDs

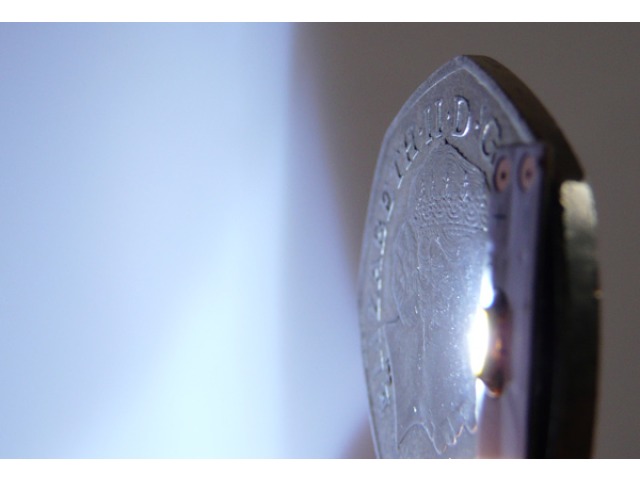

  • Size illustration, this shows how thin and compact the LED Strip is

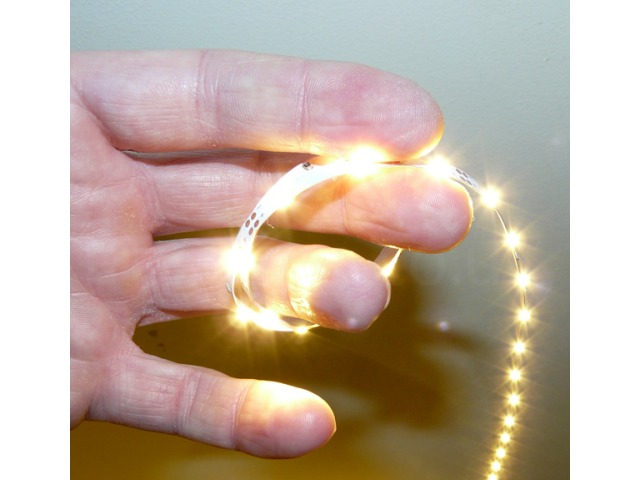

  • Edge Lit LED Strip (Warm White LEDs) around hand
  • Edge Lit Strip installed under a cabinet to provide a bright linear glow

Edge Lit Flexible LED Strip

Product Code: EL-LED-S

£22.00 inc VAT (£18.33 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

2 Meter Length

View accessories for this product View Documents

Share
Description Specification Documents Accessories

Product Description

This is Edge Lit Strip, the LEDs are side-facing making it suitable for use to go around corners that forward facing LED Strip cannot follow.

Just 8mm wide and 1.3mm thick!

Ideal for:

  • Fitting into thin routed grooves
  • Edge lighting acrylic.
  • Illuminated Letters or Numbers
  • Cabinet & Case lighting

The LED Strip is extremely versatile it can be cut every 50mm and has solder pads allowing off-cuts to be re-wired so they can be used again.

3M Self-Adhesive Backing

Stocked in 3 Colours:

  • White (6000K)
  • Warm White (3000k)
  • Blue

Product Specification

Voltage12vdc
Power4.8 Watts per meter
Dimensions8mm (W) x 1.3mm (D) x 2M (L)
Wire Length Pre-fitted400mm (15") Extendable
LED TypeSMD
Light Dispersion120°
Current draw per Meter400ma (0.4A)
Light Dispersion140 degrees
Luminous Flux (lm) per M~180
LED Spacing16mm
Cutting Points50mm (2") Intervals
LED Qty60 LEDs Per Meter
DurabilityNon Waterproof
CertificationsRoHS, CE
