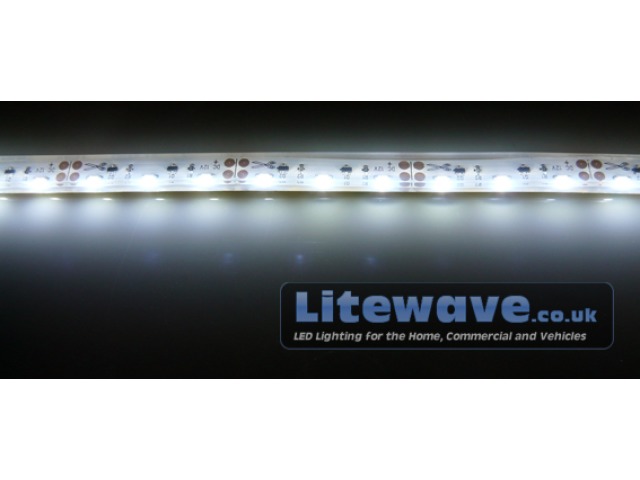

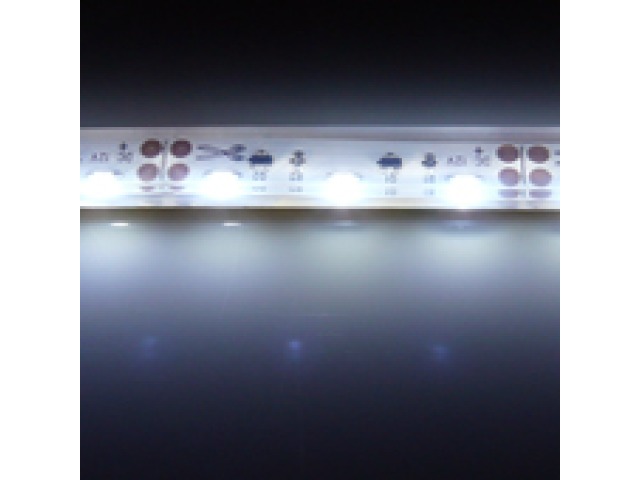

Edge Lit Constant Current (10-15vdc) LED Strip (Waterproof)

Product Code: C/C-EL-LEDSTRIP-WP

£34.00 inc VAT (£28.33 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :

2 Meter Length

Automatic Quantity Discount

Similar Products

Please choose one of the options below for more details

View accessories for this product


Product Description

Constant Current is the only choice if you want a long lifetime LED Product.

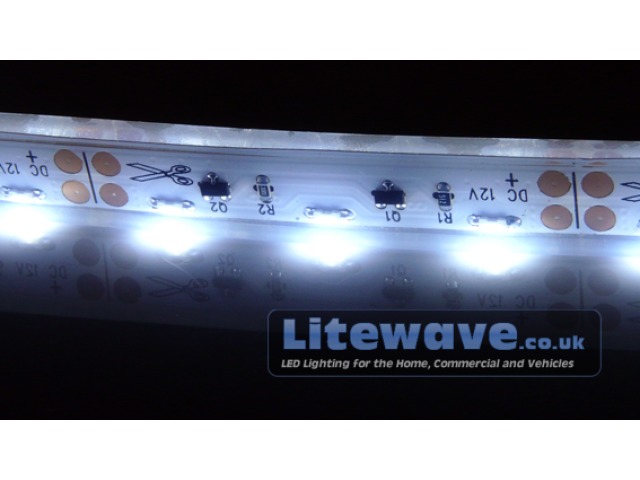

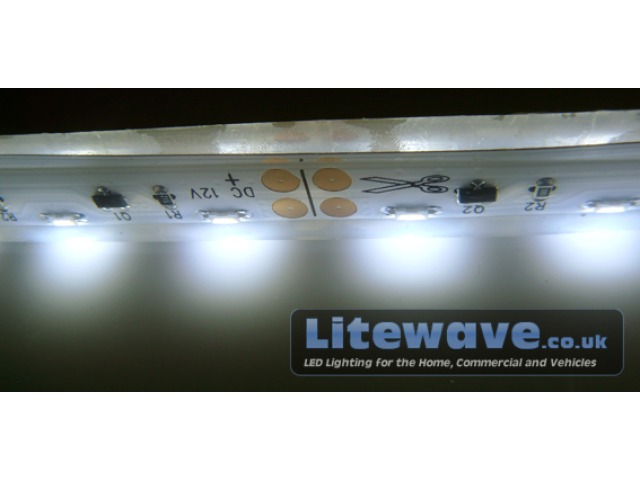

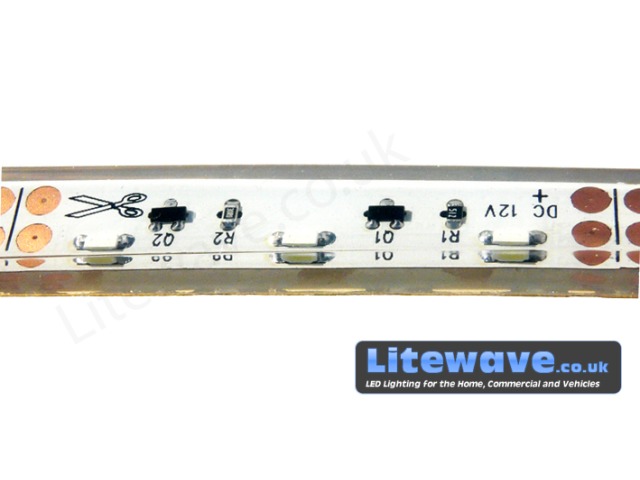

Our new Edge Lit Strip has on-board driver circuitry to protect each LED from excessive voltage and current.

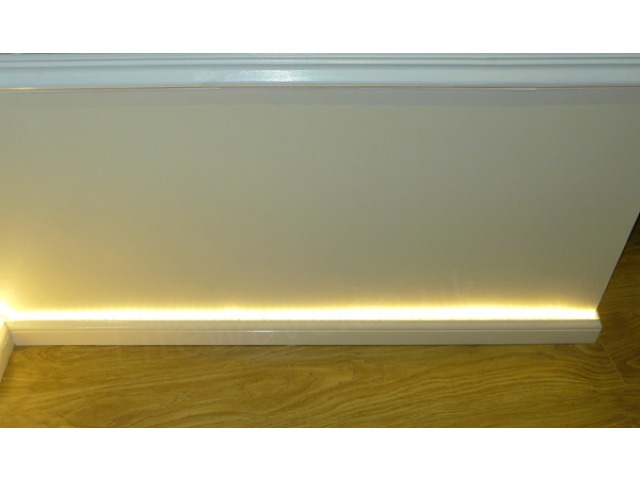

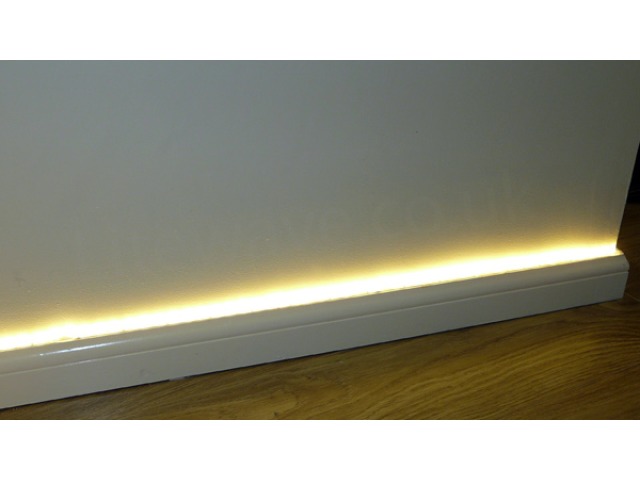

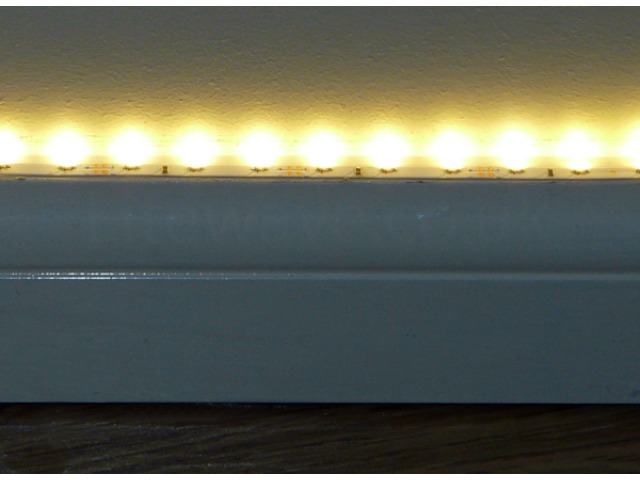

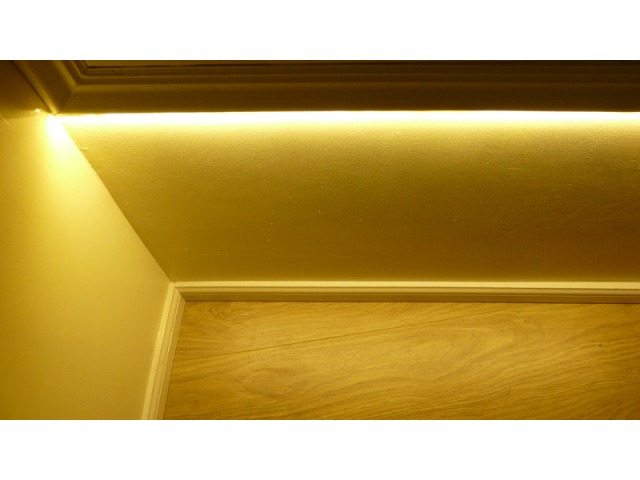

Waterproof Edge Lit LED Strip is ideal for illuminating glass splashbacks at the back of work surfaces.

  • IP67 for use in showers and bathroom
  • Suitable for use outdoors

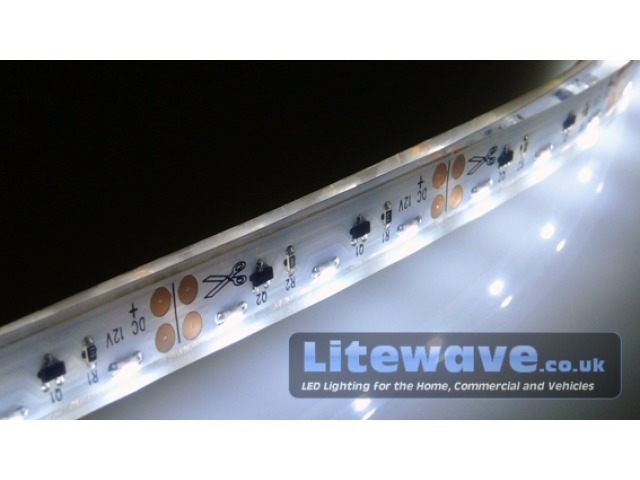

The circuit board and LEDs are completely encapsulated in Silicone with an additional outer Silicone Sleeve. This makes it durable and rugged enough to use in harsh environments - even outside. The Silicone
is UV Stable so will not yellow over time.

*Flexible
*Durable
*Wide operating voltage

Many companies make these claims but we back our claim by a 3 Year Warranty on this product.

We supply companies and installers. They need to be confident the product they install will continue to work years after installation. This product is second-to-none and will not disappoint.

Our Professional Constant Current Strip has the Constant Current Ciruitry built into the circuit with the LEDs, so it can be supplied with 12vdc from any constant voltage Transformeror battery.

  • Working voltage 10-15vdc
  • Suitable for 12v vehicles

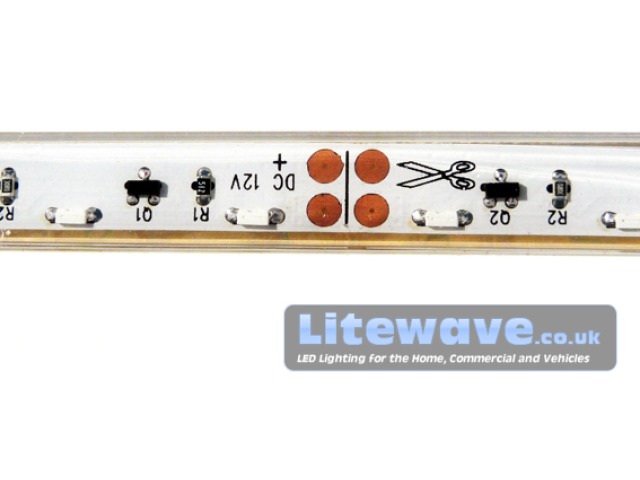

  • Wired at both ends allowing for one cut without needing to make new solder connections.

Stocked in 2 Colours:

  • Brilliant White (6000K)
  • Warm White (3500k-4000K

Product Specification

Voltage10-15vdc
LED TypeSMD Triple Chip
LED BrandEpistar with PLC Completion
Brightness per Metre350Lm
Current per Meter450mA
Light Dispersion120°
Power Draw per Meter5.4 Watts
Width10.5mm
Depth4.5mm
Lengths available1-2M
Brightness Lumens /M~450
Expected Lifetime>50,000 hours
LEDs per Meter60
LED Spacing16mm
Cutting Points50mm (2 Inches)
DurabilityIP67 (Waterproof, Not Submersible)
CertificationsCE, RoHS
Warranty6 Years
