Product Description

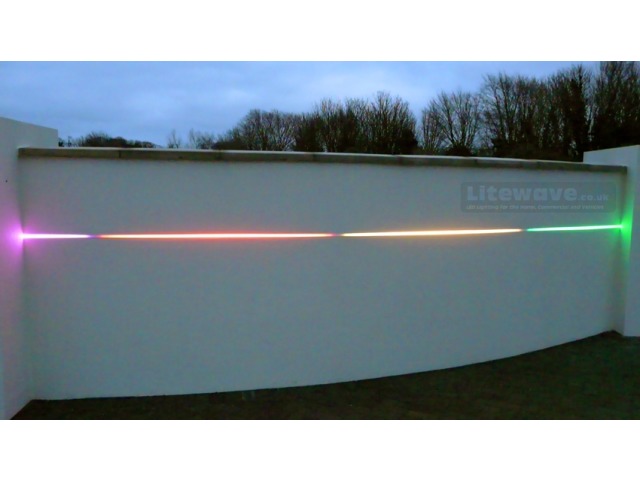

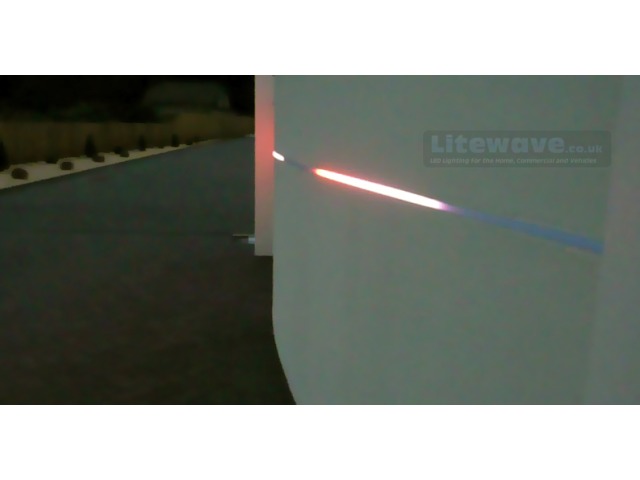

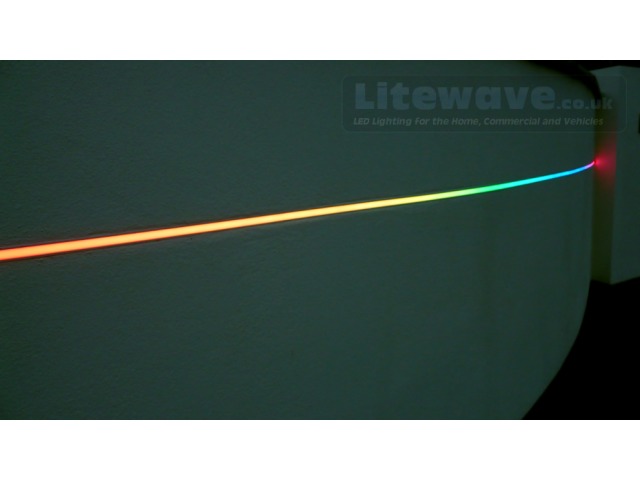

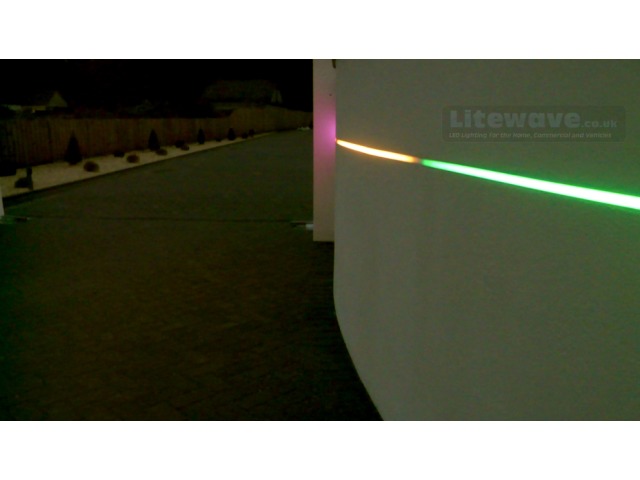

Taking LED Strip a step further is our Litewave®Pro Animated LED Strip. Amazing effects are possible from a single colour chase from one end of the strip to the other, to pulse, and even produce a moving rainbow flow. The effects and be sped up or slowed down, paused, and even changed direction.

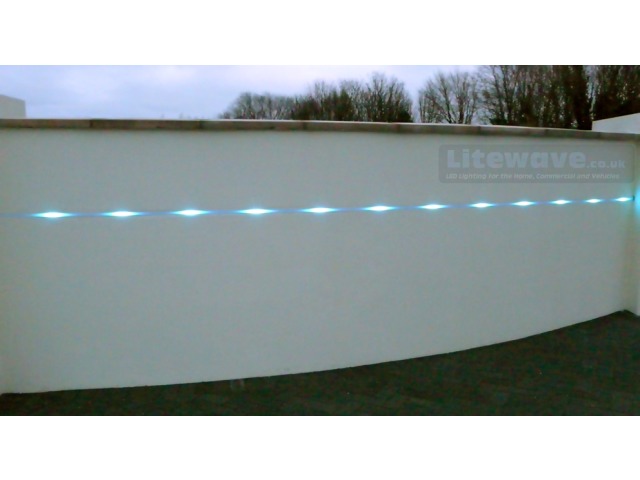

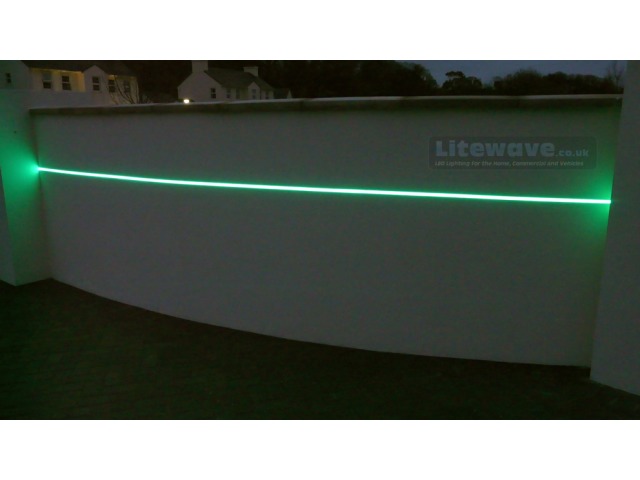

We can supply this so when fitted it has no dots, just a continuous line of light. Can be be built into Floors, Walls, and Ceilings, indoors or outdoors. Free Made-to-Measure Service.

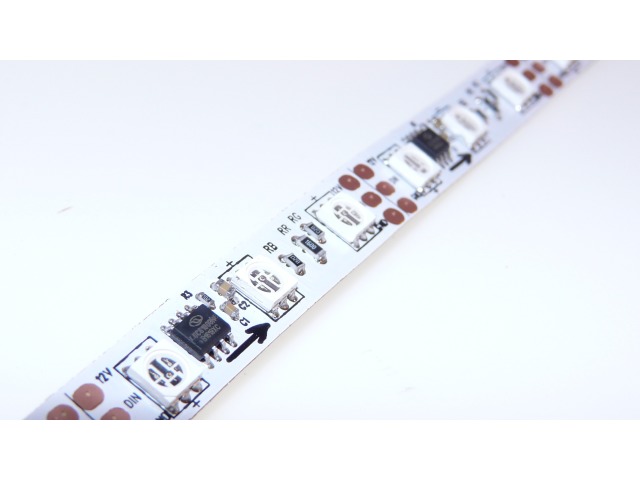

It can be powered from any 12vdc power source for the 12v version, or 24vdc for the 24vdc version, the Constant Current circuitry is built onto the LED Strip and is essential for long term reliability and brightness.
Advantages:
- Uniform colour and brightness
- Longer distances between Colour Drivers and Controllers without the small voltage drop affecting the brightness and colour
- Reliable
- Long Lifetime
We can animate a length of up to 50 Meters of this product making it ideal for architectural applications and sign lighting.
Bespoke systems and wiring diagrams can be put together for our customers.
A Waterproof version is also available.
Use in our Aluminium Profiles for built in lighting. You can even use with our PIR Sensor to enable the lighting to switch on automatically when someone enters the room.
Product Specification
Voltage | Choice of 12vdc or 24vdc |
LED Type | SMD Triple Chip |
Current per Meter | 1200mA |
Power Draw per Meter | 14.4 Watts |
Light Dispersion | 120-140 ° |
Width of LED Strip | 10mm |
Depth of LED Strip | 2.2mm |
Lengths available | 5M |
Maximum Animated length | 50 Metres |
Expected Lifetime | >50,000 hours |
LEDs per Meter | 60 |
Cutting Points | 50mm |
Certifications | CE, RoHS |
IP Rating | None, (- IP67 available) |
Warranty | 6 Years |
