8 Zone Animated Strip Controller (App or RF Remote), 5-24vdc.

Product Code: LWP608

£59.00 inc VAT (£49.17 ex VAT)

Stock Level: In-Stock

Quantity :


Product Description

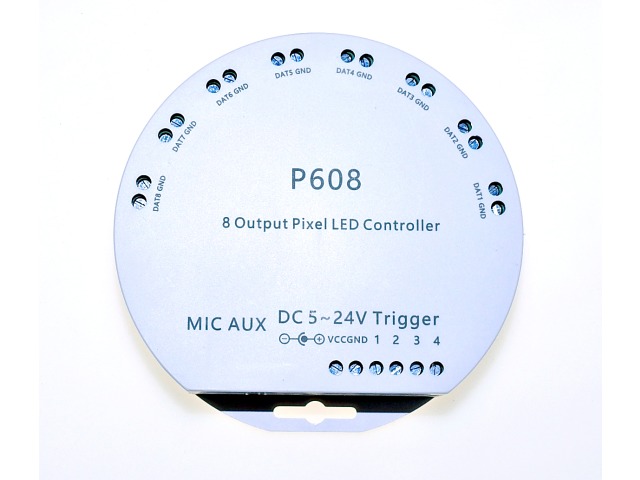

A powerful self-contained controller for our Animated Strip. It has 8 individually controllable Zones, with 50 different lighting effects including static colours with finely tuneable colours including whites, and warm whites, pastels, vivid colours, and brightness control.

Groups can be assigned for Zones to be synchronised together.

It can be controlled using a free App over Bluetooth for advanced modes and settings, or via the small RF remote (included) for simple modes.

* Audio break out cable included *

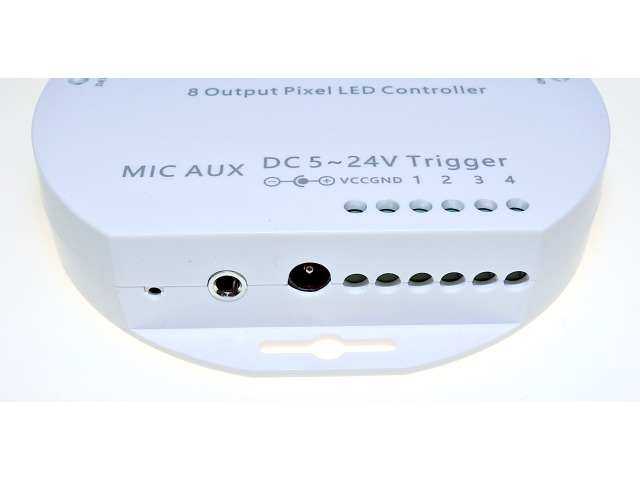

It also has 4 Trigger Inputs for a specific pre-set animation to be switched on when triggered.

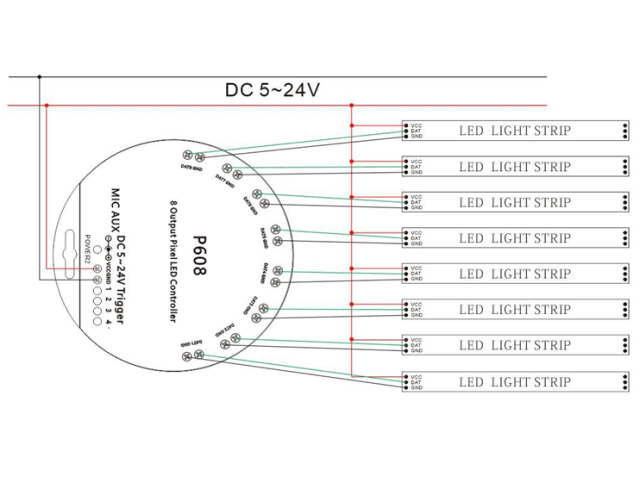

This is a passive controller wth Data and Ground Outputs to the Strips, with a separate + feed to the Strips so it resolves the issue of potential overloading.

Features:

  • Supports App (Free) and RF Remote Control (included)
  • 8 Zones
  • Grouping control, supports any combination control of all 8 Channels / Zones
  • Audio Input socket for accurate music response
  • Built-in Mic for convenience
  • 25 Non music modes, with brightness and colour control. Choose from Whites to Warm Whites, Pastels to Vivid colours.
  • 25 Sound / Music Response Modes, with adjustable parameters including speed, brightness, direction, and colour
  • Reverse power protected
  • Working Voltage 5vdc - 24vdc
  • Power down save - automatically resumes last setting when powered up
  • Supports 9 Scenes
  • 5 Timing events
  • Multiple 8 Zone Controllers can be controlled from the same App

Product Specification

Voltage Range5v - 24vdc
Working Current50mA ~ 100mA
No. of colours available16.7 Million with RGB
ControlApp (over Bluetooth) / Remote RF Handset (Included)
Rangeup to 10m outdoors, ~6M indoors
Min. Operating System for iOS10.0 or higher
Min. Operating System for Android DevicesAndroid 4.4 or higher
Dimensions105mm Dia. x 21mm
DurabilityNon Waterproof
Warranty2 Years
CertificationsCE, RoHS
