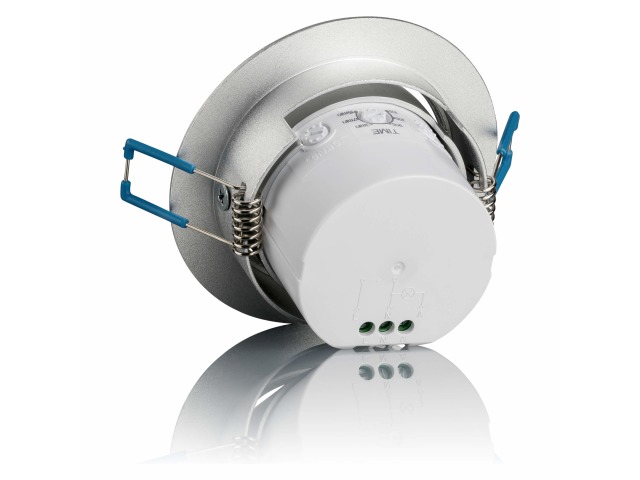

360 Degree PIR (Motion Sensor) with Tilt, Timer, Sensitivity, and Light Settings

Product Code: PIR360-IP-ES-B

£22.00 inc VAT (£18.33 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount



Product Description

A very competitively priced high quality German brand PIR finished in Anodised Aluminium.

Designed to control low power lights such as LED Lighting this PIR Switch will automatically switch on the Power to the lights when it senses a person enter the room.

For Dry Zones only

The lights will stay on for the time you pre-set when the person leaves the room, this can be from 10 seconds to 15 minutes.

  • Variable light sensitivity
  • Variable delay time
  • Variable sensitivity

Product Specification

Operating voltage 220-240V AC 50/60Hz
Max. Power consumptionmax. 1200W with usual lamps
max. 600W with LED and energy saving lamps
Power consumption on standby0.5W
Switch On, off or detector
Detection speed0.6-1.5m/s

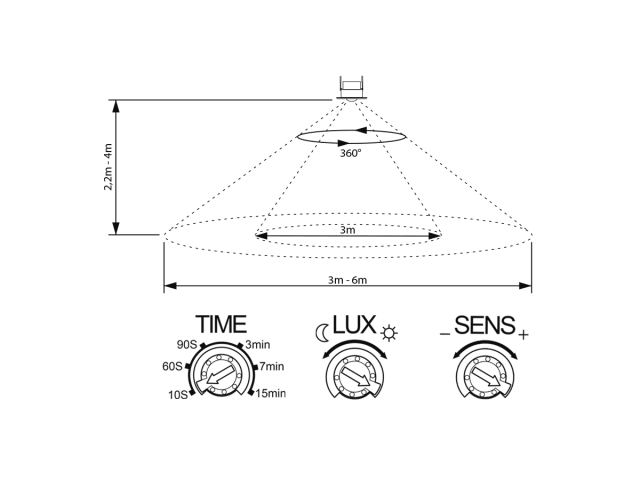

Detection rangeMax.3-6m (<24°C)/360°
Ambient brightness<3 to 2.00 0LUX
ProtectionIP20
Switch-off delayMin. 10s +/-3s - max. 15min +/-2min
Ambient temperature-20° to +40°C
Humidity<93%
Swiveling+/-20°

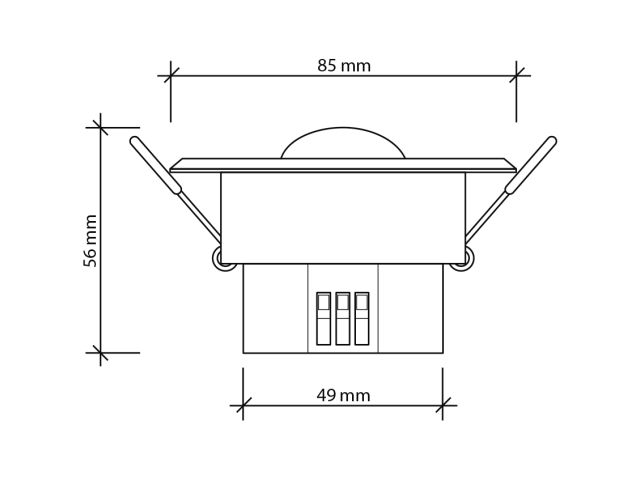

DimensionsØ85×56mm
Mounting hole65-75mm
Housing materialAnodised Aluminium
IP RatingNone
CertificationsCE, RoHS
