Square 1w LED Module (12vdc)

Product Code: SQ1WM

£5.50 inc VAT (£4.58 ex VAT)

Stock Level: In-Stock

Select Colour
Quantity :
View accessories for this product

Share
Description Specification Accessories

Product Description

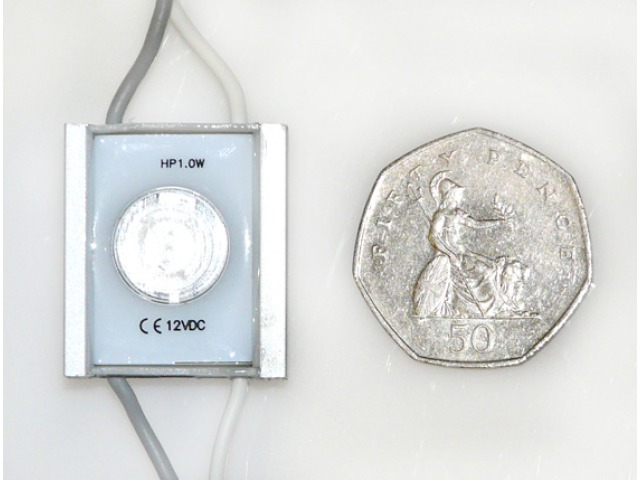

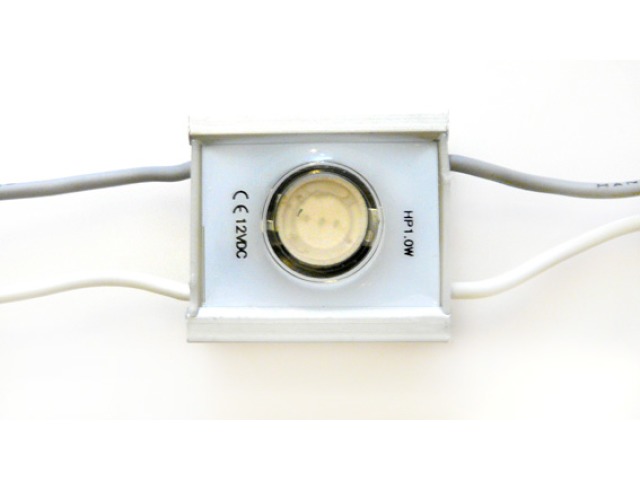

Our latest 1 Watt Module is very compact it is essentially an aluminium block about an inch square (less than 0.5 inch deep) with an LED and protective acrylic cover over the top of it.

The acrylic cover protects the LED making the Module suitable for use in wet areas such as outdoors.

Suitable for:

  • Sign Lighting
  • Cabinet Lighting
  • Back Lights etc.

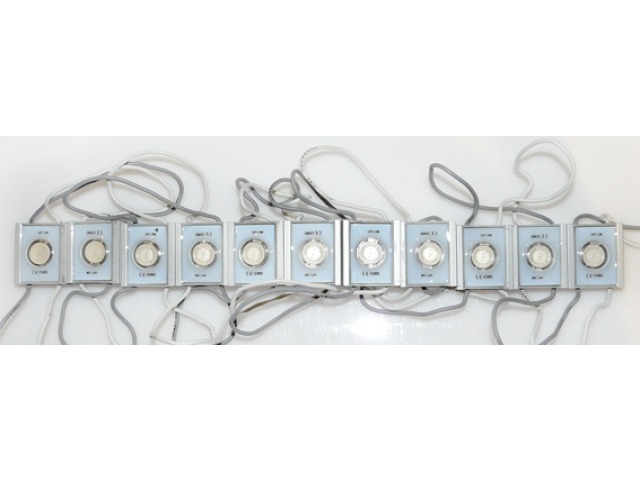

They can be supplied as a single LED Module or in a chain of Modules.

They can be powered from 12vdc, this can be from a Power Supply (below) or from a 12v vehicle battery (with in-line fuse).

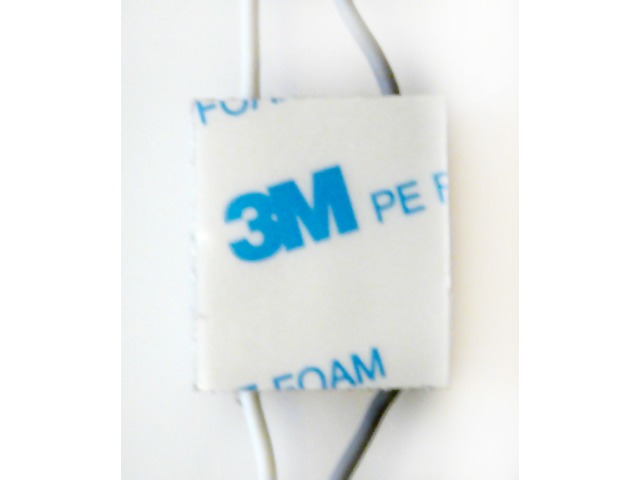

Fitted with a 3M self-adhesive pad for fast installation. For permanent installation on porous surfaces such as bricks we recommend removing the 3M pad and using silicone to fix in place.

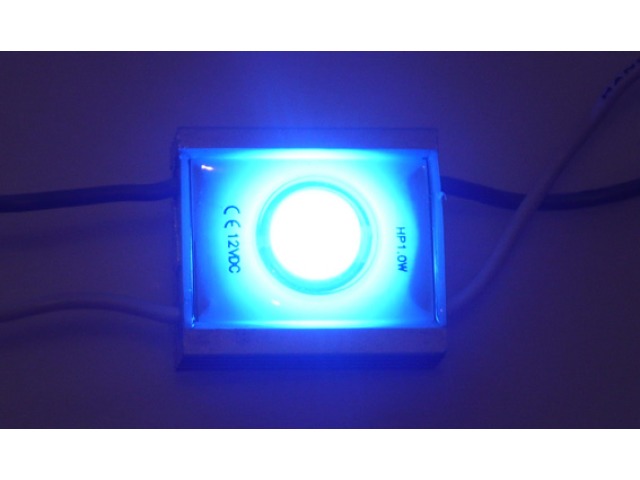

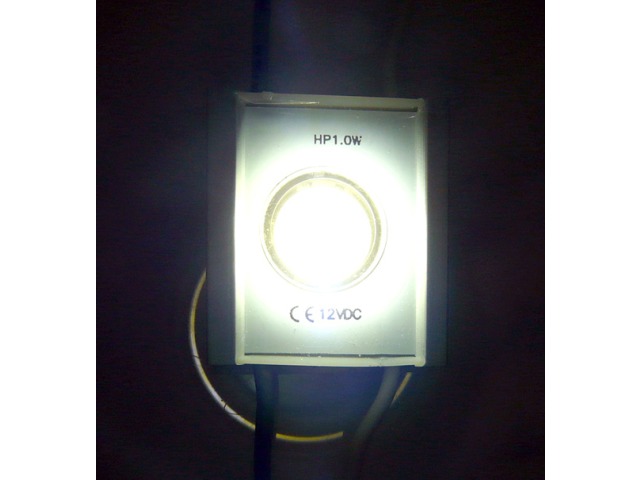

Currently available in 2 colours: White and Blue.

Product Specification

Voltage12vdc
LED Power1 Watt
Current90ma @ 12vdc
LED TypeCOB

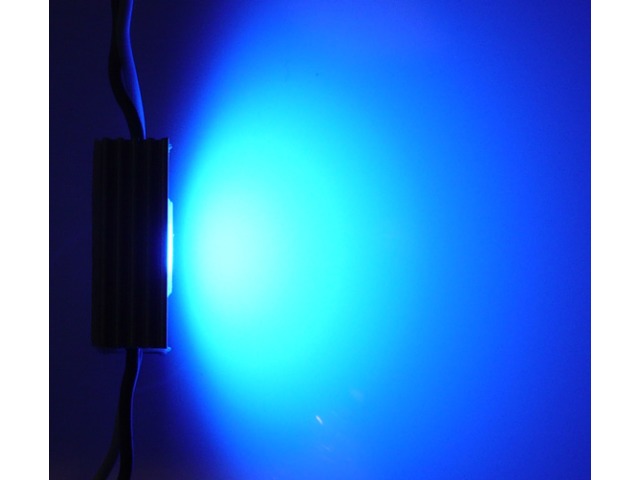

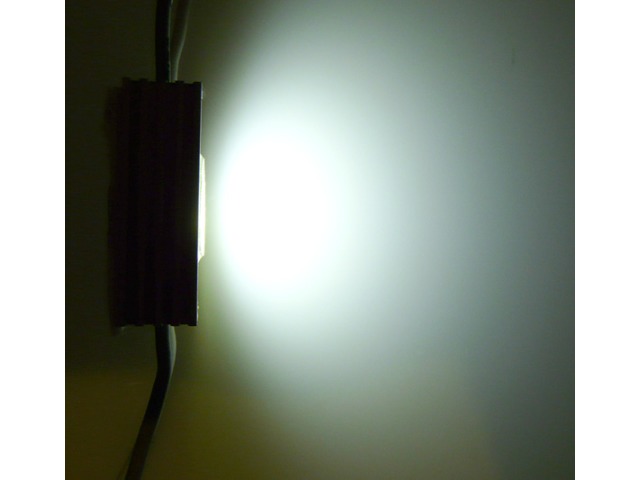

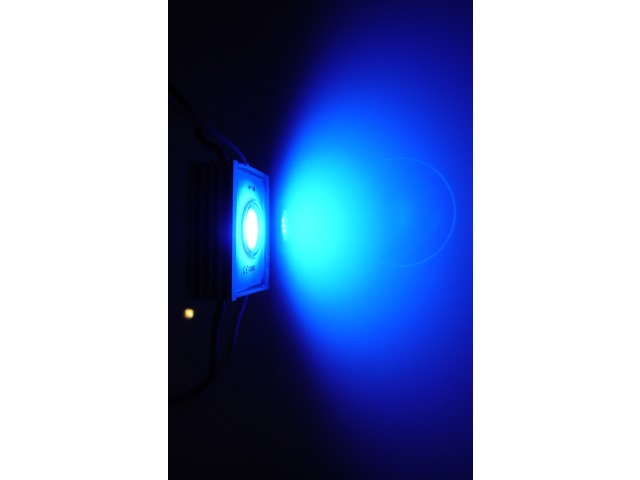

Light Dispersion160-180 Degrees
Dimensions29mm (L) x 26mm (W) x 10mm (H)
Total length allowing for wire exit32mm
DurabilityIP65 (Splashproof)
CertificationsCE, RoHS
