Proximity 'Hidden' Dimmer (12vdc)

Product Code: PDIM

£29.50 inc VAT (£24.58 ex VAT)

Stock Level: In-Stock


Automatic Quantity Discount

View Documents


Product Description

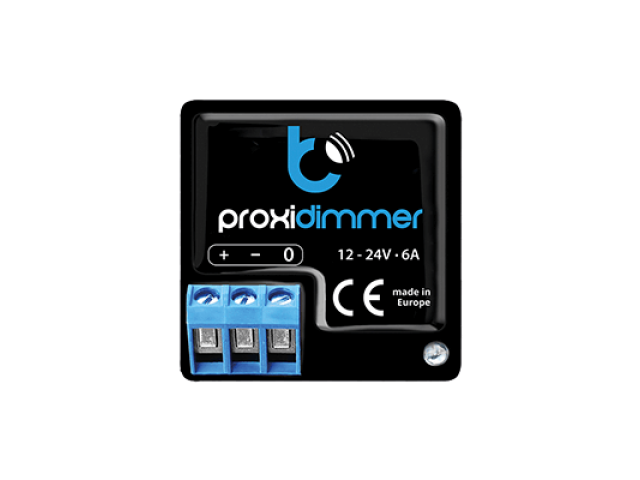

The Proximity Dimmer makes it possible to control the brightness of our LED Strip or our other (12vdc) single colour light sources by touch or gesture.

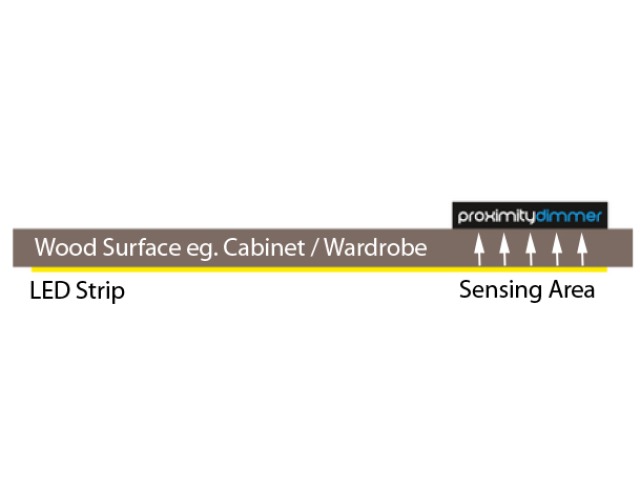

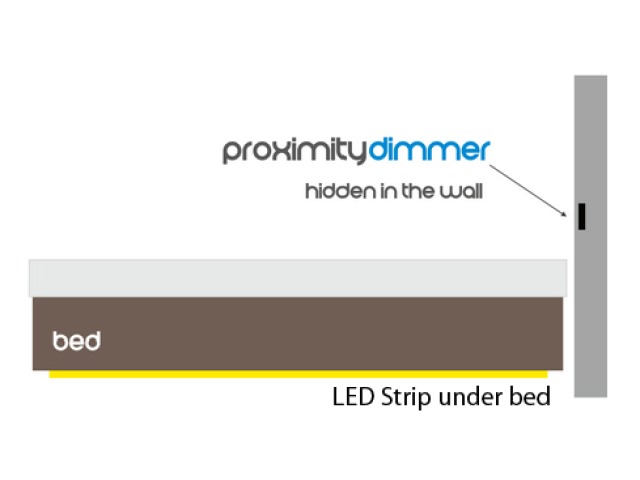

It can be hidden beneath any non-conductive surface such as glass, wood, stone etc.

The Dimmer self-calibrates within 5 seconds of locating it under the desired surface so from then on the captive sensing will switch on/off, dim/brighten the lights it is connected to.

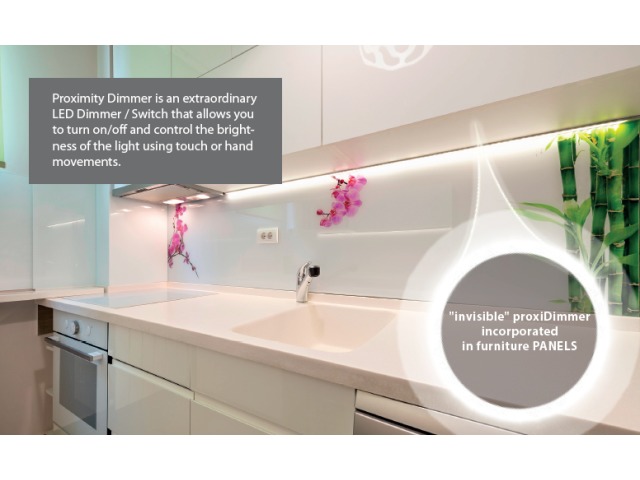

Ideal for controlling worktop lights, cabinets lights, and even suitable for use in vehicles.

Product Specification

Version2
Voltage12/24 vdc
Maximum Current6A
Dimming method8 bit PWM
Operating Temperature0 - 40°C
Dimensions41mm x 51mm x 8 mm (18 mm with connector)
ProtectionReverse Polarity, ESD
CertificationsCE, RoHS
