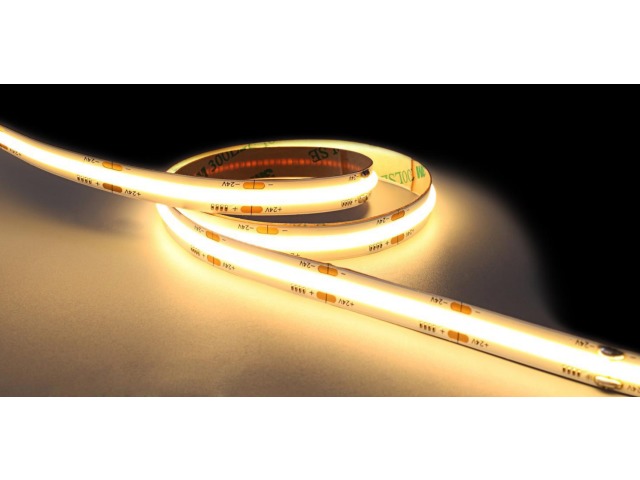

  • Litewave Pro COB LED Strip - Warm White

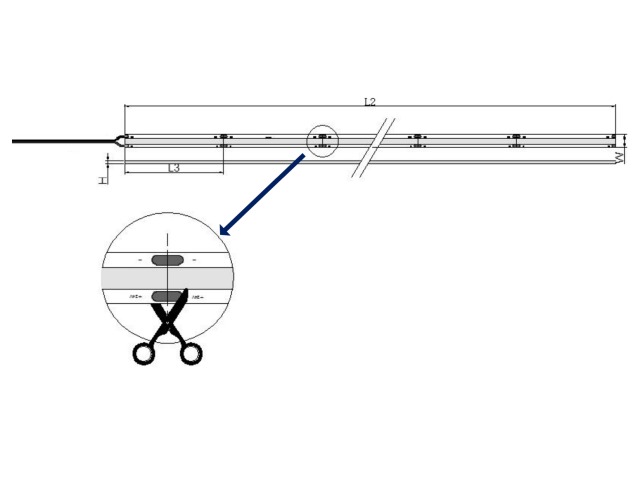

  • Drawing of COB Strip showing cutting points

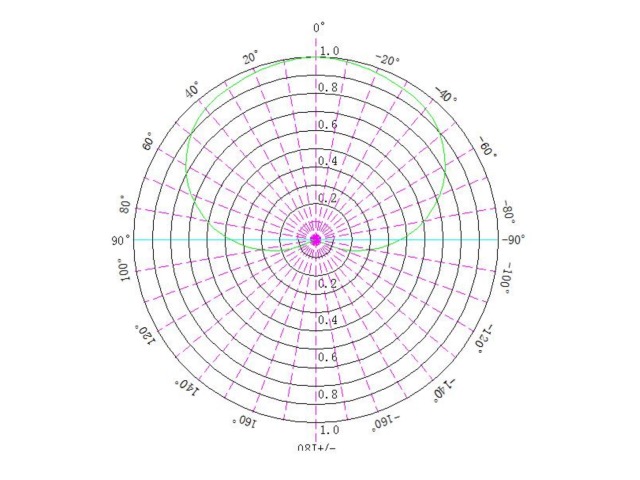

  • Light Distribution of COB Strip

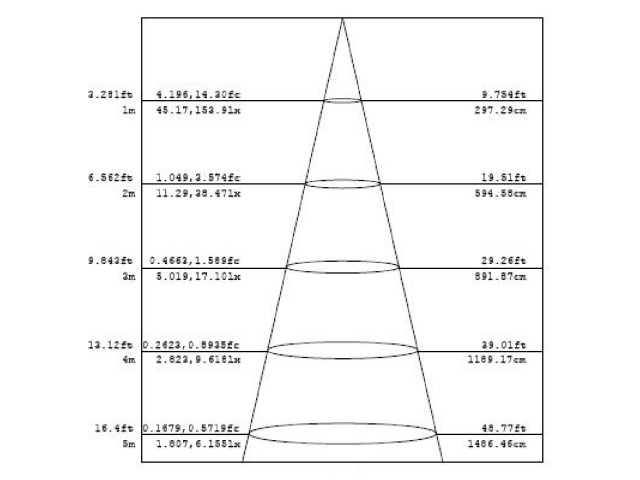

  • Illuminance Diagram of COB Strip

Litewave ® Dotless COB LED Strip 24vdc, 378 LEDs/M

Product Code: CCCOB-24vdc

£99.00 inc VAT (£82.50 ex VAT)

Stock Level: In-Stock

Colour Temperature
Quantity :

6 Year Commercial & Domestic Warranty

Suppied as a 5M Length
Custom lengths also available, please email us

View accessories for this product

Share
Description Specification Accessories

Product Description

For when reliability and long lifetime is a must, we have developed our Litewave ® Pro Dotless Strrip. Unlike our cheaper COB Strip, this has integrated Constant Current Circuitry to ensure minimum fade after several thousand hours of use. A lifetime of 50,000+ hours should be expected.

These Strips are prodvide Dotless lighting without the need of a diffuser. There are 378 LEDs for every Metre of Strip. The pitch between each LED is very close and with a Silicone coating to diffuse the light.

This is our Constant Current COB LED Strip.

The Strip has cutting points at 50mm intervals.

Dimmable if used with our Dimmable PSUs. Varilight Wall Dimmer recommended for smooth control.

Available in White (4000k) and Warm White (3000k)

Product Specification

Operating Voltage24vdc
Power per Meter9w-10w
Current per Meter375ma-417ma
Brightness Lumens /M~1000
ColoursWhite 4000k / Warm White 3000k)
Light Dispersion180°
CRI>90
LED Qty per Metre378
Width of Strip8mm
Depth of Strip2mm
Cutting Points50mm (2")
Length of Strip5M
Length of wire pre-soldered to Strip1M
DimmableYes - with correct Dimmable Driver
Lifetime>50,000 hours
Warranty6 Years
CertificationsCE, RoHS

Accessories

For more information about one of the products below simply click the name of the product.

  Power Supplies Price
Meanwell 8.33A 24vdc (200w) (Waterproof) Power Supply
For wiring into a lighting circuit, it can power up to 17 Metres of Dotless 378 LED Strip 		£69.00


24vdc 2.5A (60w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 4 Metres of Dotless 378 LED Strip 		£26.00
Quantity :
24vdc 1.04A (25w) Power Supply - Mains Dimmable
For wiring into a lighting circuit with Dimmer, it can power up to 1-2 Metres of Dotless 378 LED Strip 		£24.75
Quantity :
24vdc 4.16A (100w) Power Supply - Mains Dimmable
For wiring into a lighting circuit with Dimmer, it can power up to 8 Metres of Dotless 378 LED Strip 		£55.00
Quantity :
24vdc 8.33A (200w) Power Supply - Mains Dimmable
For wiring into a lighting circuit with Dimmer, it can power up to 17 Metres of Dotless 378 LED Strip 		£87.00
Quantity :
24vdc 1A (24w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 2 Metres of Dotless 378 LED Strip 		£15.00
Quantity :
24vdc 4.16A (100w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 8 Metres of Dotless 378 LED Strip 		£42.00
Quantity :
24vdc 6.25A (150w) Waterproof (IP67) Power Supply
For wiring into a lighting circuit, it can power up to 17 Metres of Dotless 378 LED Strip 		£59.00
Quantity :
24vdc 2.08A (50w) Power Supply - Mains Dimmable
For wiring into a lighting circuit with Dimmer, it can power up to 4 Metres of Dotless 378 LED Strip 		£32.00
Quantity :
