24vdc 2.08A (50w) Power Supply - Mains Dimmable

Product Code: LW-UVC2450TD

£32.00 inc VAT (£26.67 ex VAT)

Stock Level: In-Stock

Quantity :

Product Description

This Transformer allows brightness control via a wall dimmer of our 24v Light Sources such as a our Litewave ® Pro LED Strip with Samsung LEDs and our Litewave Pro ® 120 LED/M LED Strip.

We recommend using this with high quality Dimmers such as the Varilight V-Pro - available towards the bottom of this page.

Key Features:

  • Fully Isolated
  • Short Circuit, over current & over voltage protection
  • Fire Resistant Plastic Cover
  • 20 ~ 100 &percent; Dimming load
  • 20 ~ 100 &percent; Dimming range
  • IP20

Our Mains Dimmable Transformers are compatible with:

  • Trailing / Leading Edge Dimmers
  • Varilight Dimmers
  • Lightwave RF LED Dimmers

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage Mains Dimmable PSU
Output voltage0-24vdc
Maximum Current2.08A
Power50 Watts
Dimming Range10-100&percent;
Power Factor0.95
Inrush Current<2.5A
Short CircuitAuto-Recovery
IP RatingIP20 (Indoor use only)

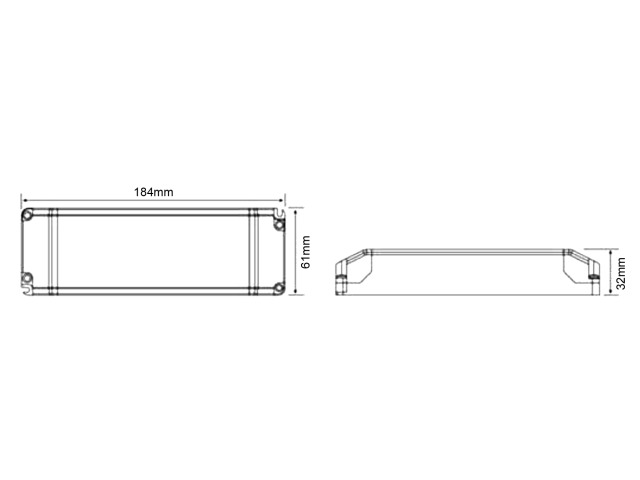

Dimensions184mm x 61mm x 32mm
ConnectionScrew Terminal on I/P & O/P
Lifetime50,000 hours at TC max (85°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN60598, EN61547, ENV55024

EN61000-4-2, 3, 4, 6, 8, 11,
EN61000-3-2, EN61000-33
EMI StandardMeets Emissions to EN55022, EN5015 Class B
