InBox - Control any device without wires

Product Code: INBOX

£39.00 inc VAT (£32.50 ex VAT)

Stock Level: In-Stock

Quantity :
View Documents


Product Description

Imagine being able to add a push switch to any wall in your home without wiring the switch to the Mains.

Now it is possible by using the InBox.

The InBox communicates wirelessly to the WiFi Lightbox. The Wi-Fi Lightbox is in turn connected to a mains device allowing you to switch the device on or off by using a switch, or even if you are away using a smart phone or tablet. The system communicates through your Wi-Fi network.

Control any WBox Device, such as Switchbox, Shutterbox, Gatebox, Dimmerbox with a push button or your Phone. Just add the suggested product at the the bottom of the page for the device you would like to control.

For example you may have Floodlights fitted to your Garage or Shed and you want to control them from your house. As long as you have a Wi-Fi network all you will need to purchase is an InBox and a Switchbox.

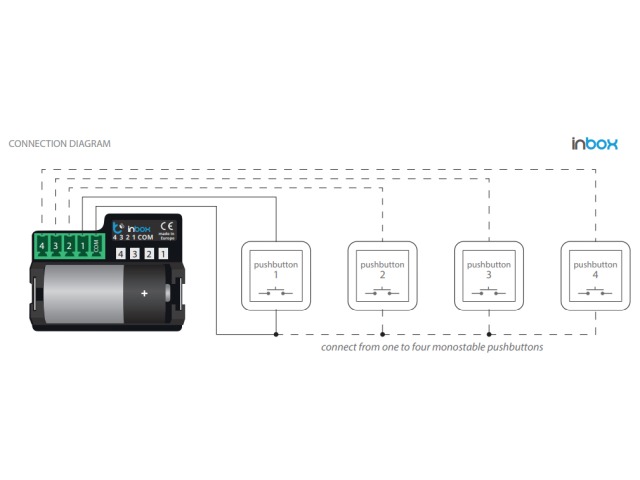

Control up to 30 devices from one monostable push-button

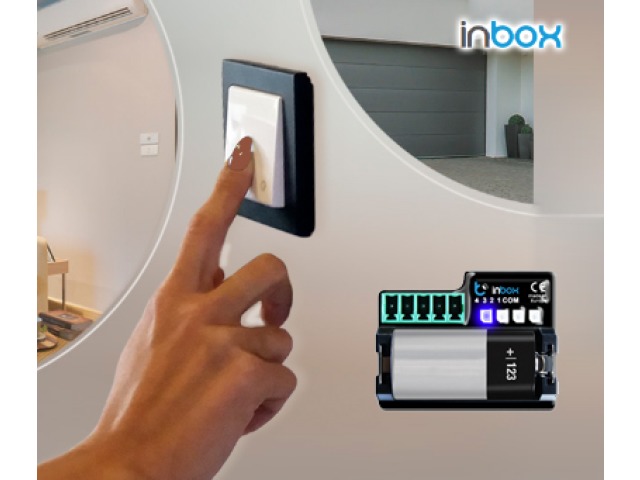

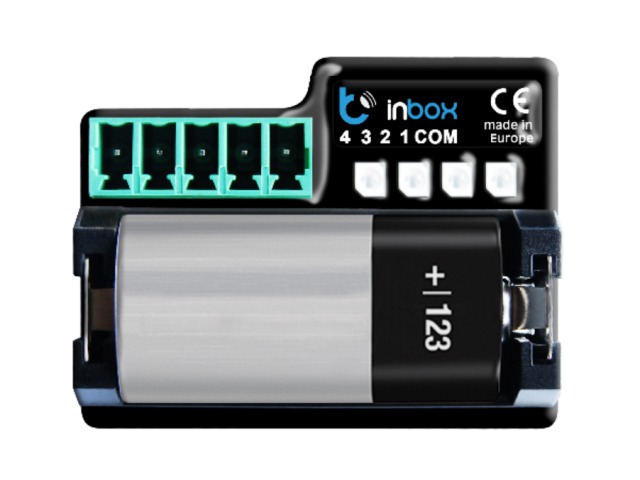

The device is small enough to fit into a wall cavity behind or alongside the switch. The battery is rated for 5 years before needing to be replaced.

Product Specification

Voltage12 – 24V DC
Inputs4
Innput TypeLogical to GND
Dimensions45mm x 35mm x 23mm
Connection TechnologyWiFi, 2.4 GHz, compatible with WiFi
TransmissionBi-directional, encrypted
Range50M in open space with smartphone or 100M with popular access point, up to 250 m with professional device. May be limited in buildings
ProtectionReverse polarity, ESD
Housingmade of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Battery TypeCR123A
Warranty5 Years
CertificationsCE, RoHS
