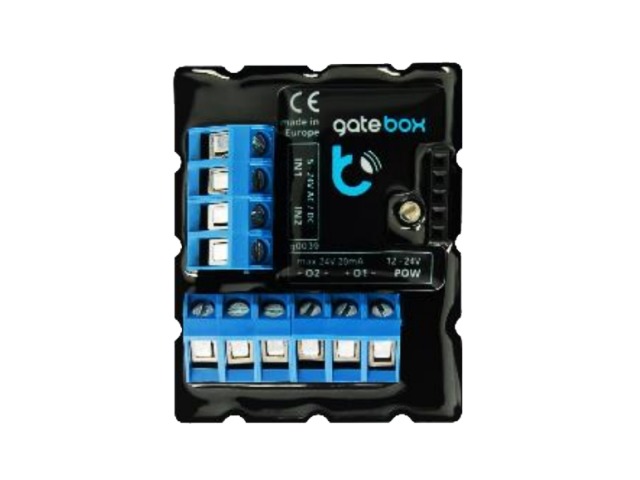

Gatebox Gate & Garage Door Smartphone / Tablet Controller (v2)

Product Code: GATEBOX

£69.00 inc VAT (£57.50 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount

View Documents

Product Description

GateBox is the latest addition to our Smart Device Controllers. It allows you to control an unlimited number of doors or gates equipped with GateBox units from anywhere in the world, via your smartphone or tablet.

Compatible with most Electric Gate & Garage Door Systems

GateBox allows you to open and close the gates, and what’s more, to check their status by using a smartphone or tablet, without the need of purchasing any additional equipment or paying hidden fees. The App is free to download and use.

It can be retro-fitted to provide App based control alongside most pre-existing controllers.

Product Specification

Voltage12 – 24V DC
Power Consumption<2w
Number of Outputs2
Number of Inputs2
Input Voltage12 - 24V AC / DC
Output TypeOpen Collector
Max. Load per Channel20mA
Galvanic IsolationYes, Optical
Input PolarisationDetected automatically
Dimensions54mm x 41mm x 20mm
Connection TechnologyWiFi, 2.4 GHz, compatible with WiFi
Range50M in open space with smartphone or 100M with popular access point, up to 250 m with professional device. May be limited in buildings
InterfaceWeb based, compatible with Apple, Android, Windows Phone, Microsoft Windows, Linux, OSX
Protectionthermal, reverse polarity, ESD
Expansion port8 pin 2.54 mm connector
CompositionPolyurethane, not containing halogens, self-extinguishing for thermal class B (130 °C)
Warranty5 Years
CertificationsCE, RoHS
