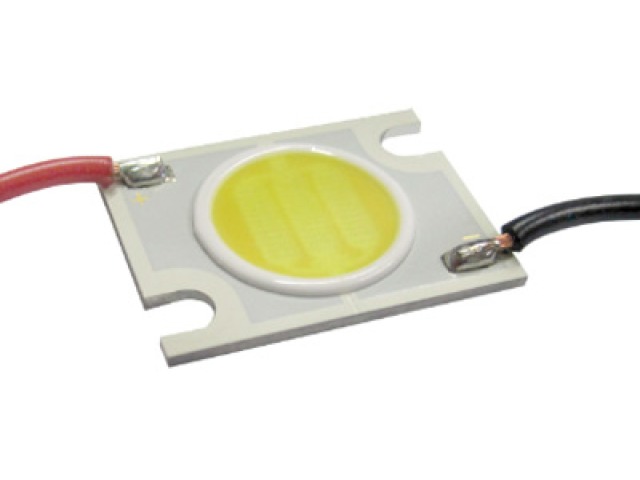

13 Watt Citizen LED Light Engine

Product Code: 13WLE

£19.50 inc VAT (£16.25 ex VAT)

Stock Level: Out of Stock

Similar Products

Please choose one of the options below for more details

View Documents

Product Description

For serious hobbyists and developers:

13 watt LED Light Engine manufactured by CITIZEN capable of producing around 1,400 lumens of light, which is brighter than the light produced by a 100 Watt Tungsten light bulb.

To put the brightness into context a 50w watt halogen produces around 500 lumens.

Supplied with 150mm flying leads pre-fitted

  • Very Energy Efficient
  • No UV Radiation

The junction temperature needs to be kept well below 120°C so the LED must be mounted to a suitable Heatsink or Aluminium plate with enough surface area to dissipate the heat. If not the LED s lifetime will be greatly reduced

The LED lends itself very well to many applications, for example aquarium lighting where the LED could easily be fitted to the hood of the tank which are normally aluminium. The surface area (350cm2) of the average Aluminium fish tank hood will be more than adequate for 1 of these light engines.

To provide a long lifetime, ideally this LED Light Engine should be used with a suitable constant current driver.

Colours available:

  • White (5000K)

Ideal for:

  • Retro-fit Torch / Light Saber
  • Street Lights
  • Downlights
  • Automotive lighting
  • Aquarium/Reef Lighting

Product Specification

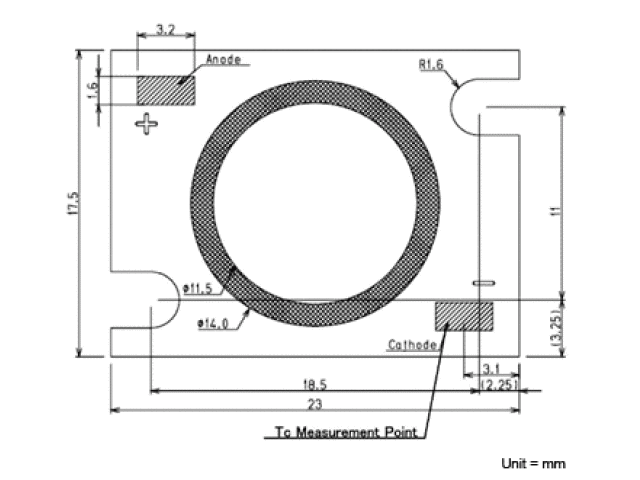

LED Package Dimensions(L) 23mm (W) x 17.5mm (D) x 1.4mm
LED TypeLight Engine
Voltage17.5vdc (Min)
18.6 (Typ.)
21vdc (Max)
Max. Current1200 (1.2A)
Light Dispersion120°
Luminous Flux (lm)1400 (Max)
Colour Temperature5000K
IP RatingNone
Thermal Resistance2.4°C/W (Typ.)
