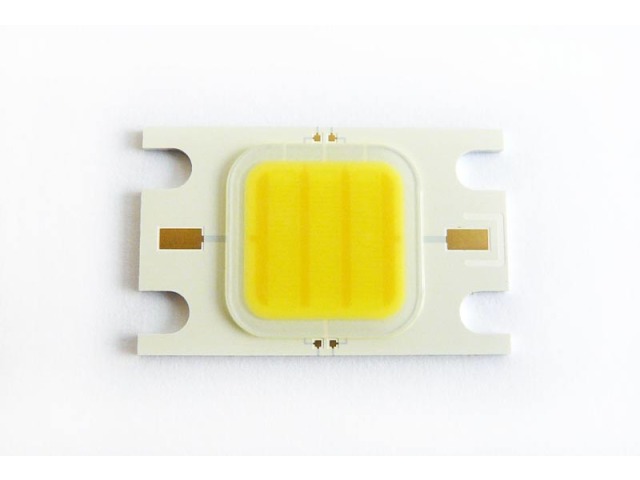

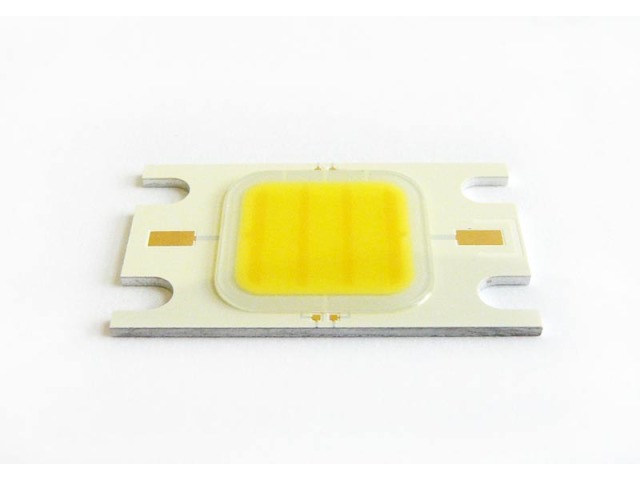

16 Watt Citizen LED Light Engine

Product Code: 16WLE

£19.95 inc VAT Was £29.50

Stock Level: In-Stock

Select Colour Temp.

Quantity Discount

View Documents

Product Description

For serious hobbyists and developers:

16 watt LED Light Engine manufactured by CITIZEN capable of producing around 1,150 lumens of light, which is equivalent to that given by a 100 WattTungsten light bulb.

  • Very Energy Efficient
  • No UV Radiation

The junction temperature needs to be kept well below 120°C so the LED must be mounted to a suitable Heatsink or Aluminium plate with enough surface area to dissipate the heat. If not the LED s lifetime will be greatly reduced

The LED lends itself very well to many applications, for example aquarium lighting where the LED could easily be fitted to the hood of the tank which are normally aluminium. The surface area (350cm2) of the average Aluminium fishtank hood will be more than adequate for 1 of these light engines.

To provide a long lifetime, ideally this LED Light Engine should be used with a suitable constant current driver.

Colours available:

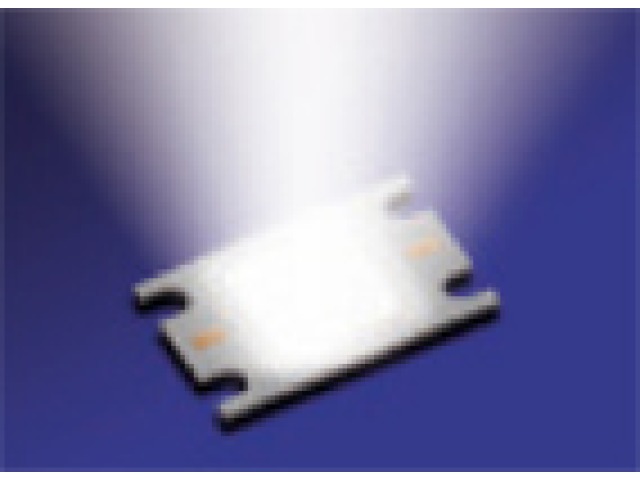

  • Daylight White (5000K)

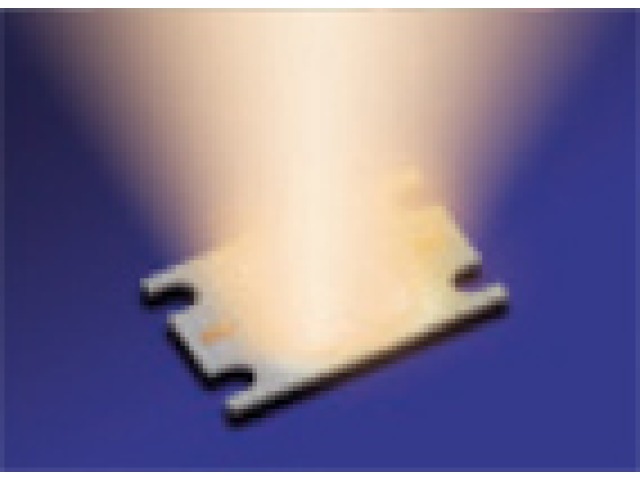

  • Warm White (3000K)

Ideal for:

  • Retro-fit Torch / Light Saber
  • Garage Lighting
  • Commercial Lighting
  • Retro-fit Downlighter
  • Automotive lighting
  • Aquarium/Reef Lighting

Product Specification

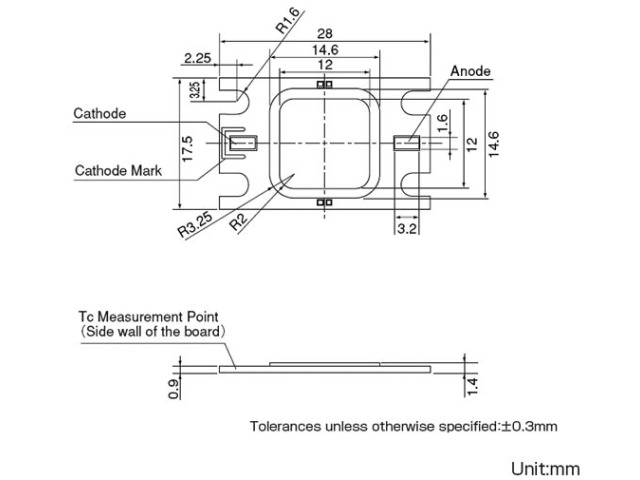

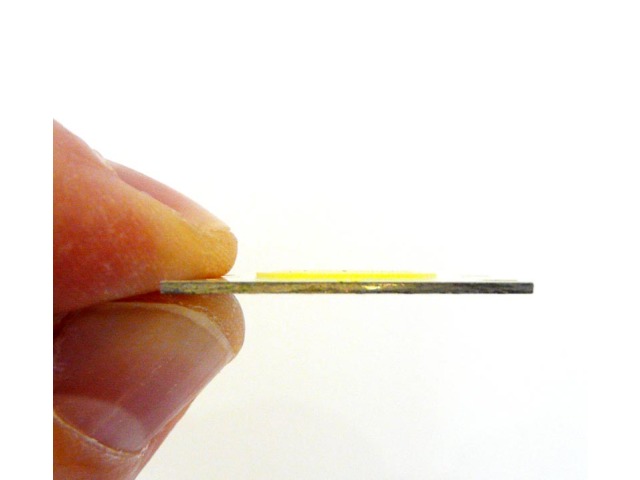

LED Package Dimensions(L) 28mm (W) x 17.5mm (D) x 1.4mm
LED TypeLight Engine
Voltage10.5vdc (Min)
11.8 (Typ.)
12.9vdc (Max)
Max. Current1440 (1.44A)
Light Dispersion140°
Luminous Flux (lm)838 (Min)
1150 (Typ.)
1150+ (Max)
Colour TemperatureDaylight White - 5000K
Warm White - 3000K
IP RatingNone
Thermal Resistance2.4°C/W (Typ.)
