12vdc 4.16A (50w) Power Supply - Mains Dimmable

Product Code: LW-UVC1250TD

£32.00 inc VAT (£26.67 ex VAT)

Stock Level: In-Stock

Quantity :
View accessories for this product

Share
Description Specification Accessories

Product Description

This Transformer allows brightness control via a wall dimmer of our 12v Light Sources such as our Samsung LED Strip and Constant Current LED Strip.

We recommend using this with high quality Dimmers such as the Varilight V-Pro - available towards the bottom of this page.

Key Features:

  • Fully Isolated
  • Short Circuit, over current & over voltage protection
  • Fire Resistant Plastic Cover
  • 20 ~ 100 &percent; Dimming load
  • 20 ~ 100 &percent; Dimming range
  • IP20

Our Mains Dimmable Transformers are compatible with:

  • Phase Dimming / AC Dimming
  • Compatible with Trailing or Leading Edge Dimmers such as:
  • Varilight Dimmers
  • Lightwave RF LED Dimmers

Product Specification

VoltageMains 220-240vac
TypeConstant Voltage Mains Dimmable PSU
Output voltage0-12vdc
Maximum Current4.16A
Power50 Watts
Dimming Range10-100&percent;
Power Factor0.95
Inrush Current<2.5A
OverloadAuto-Recovery
Short CircuitAuto-Recovery
Over-VoltageAuto-Recovery
IP RatingIP20 (Indoor use only)
Weight200g

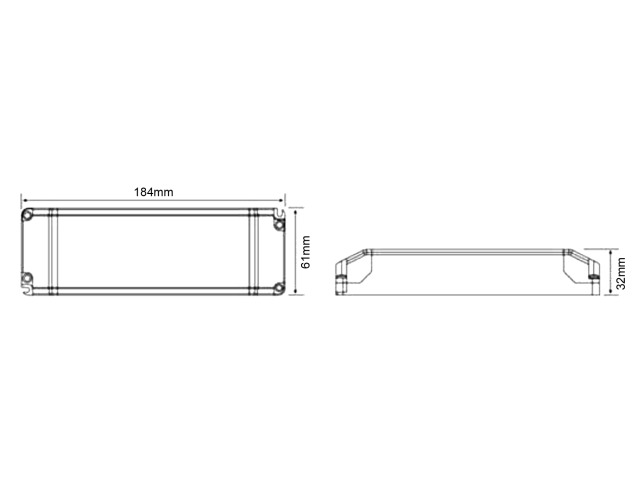

Dimensions184mm x 61mm x 32mm
ConnectionScrew Terminal on I/P & O/P
Lifetime50,000 hours at TC max (85°:C)
CertificationsCE, SELV, RoHS
Safety StandardEN60598, EN61547, ENV55024

EN61000-4-2, 3, 4, 6, 8, 11,
EN61000-3-2, EN61000-33
EMI StandardMeets Emissions to EN55022,EN5015 Class B

Accessories

For more information about one of the products below simply click the name of the product.

  Dimmers Price
Varilight V-Pro LED Dimmer Module (120w) £17.50
