Van Lighting - 1000Lm LED Bar with Samsung LEDs (10-15vdc)

Product Code: SMSVB/10-15vdc/1000lm

£32.00 inc VAT (£26.67 ex VAT)

Stock Level: In-Stock

Select Colour

Quantity :

Available in Warm White (3500k) & White (5000k)

Both types are virtually equal in brightness.

Similar Products

Please choose one of the options below for more details

View Documents


Product Description

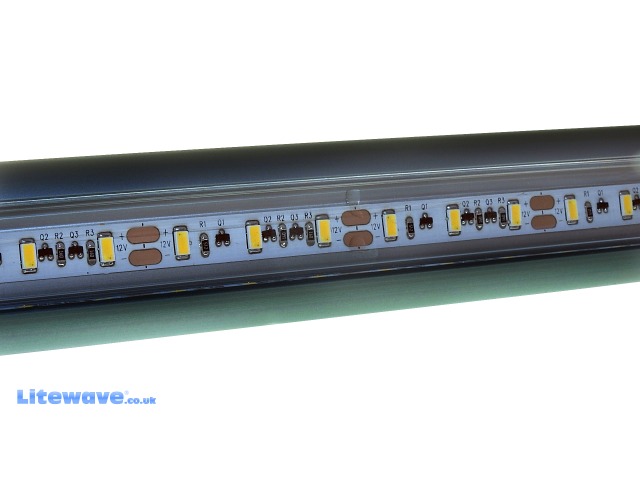

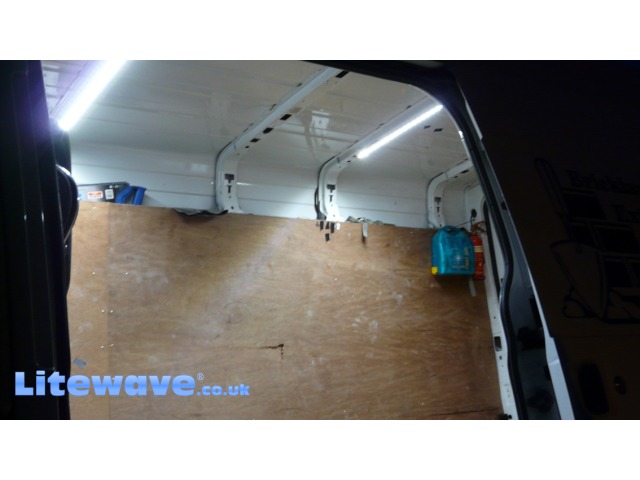

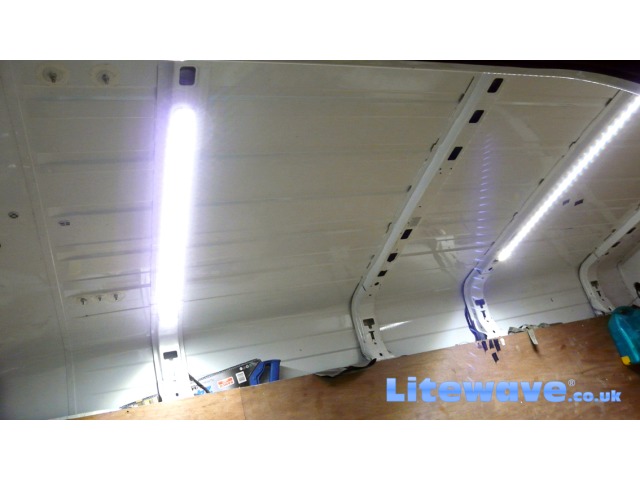

Our Litewave Pro - LED Bar is a extremely bright van lighting LED Bar, read-to-fit into any Van.

6 Year Warranty

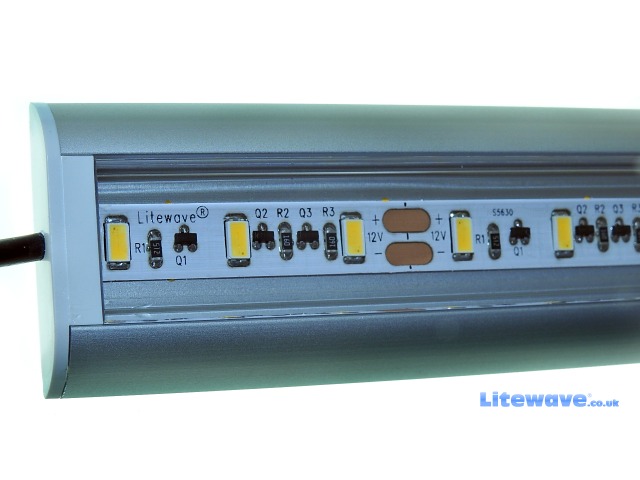

Using 30 High Powered Samsung Chips this LED Bar is one of the brightest LED Bars currently available. The brightness will be consistent from 10vdc, when the engine is switched off, through to 14.4vdc with the engine running.

Developed using high quality on-board constant current circuitry which allow the Van Light Bar to run from 8-15vdc. It will have a lifetime of at least 50,000 hours, there will be less than 3% light decline after 10,000 hours of use!

Cheaper LED Bars will have just resistors to protect the LEDs. Without any additional protection the LEDs can be damaged resulting in fading brightness, and usually sections of failed LEDs.

The Bar has a low profile and is made from extruded Aluminium and anodised to prevent oxidisation (corrosion). A protective shatterproof Polycarbonate cover is fitted to protect the LEDs.

The light produced by this 50cm length Bar is equivalent to around 100 watts of Halogen, but only draws 10.5 watts of power.

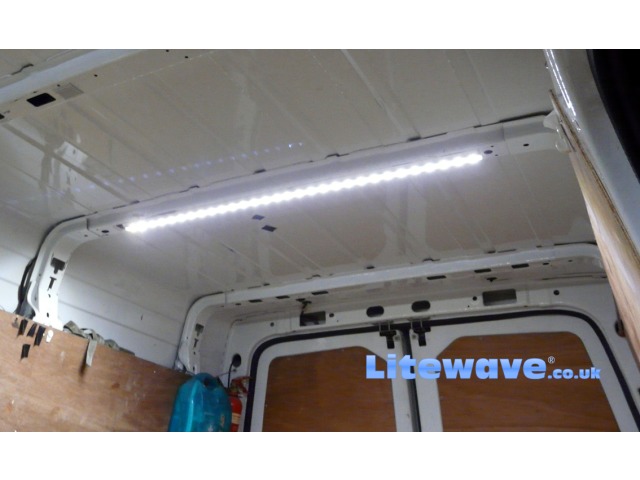

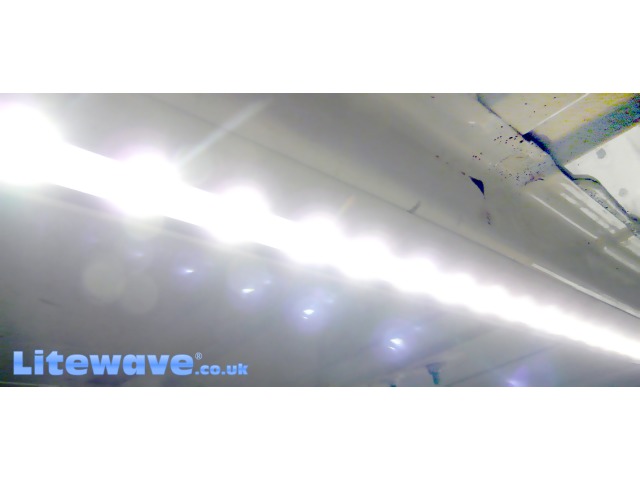

  • Bright - See to work safely in your van, when it’s dark outside.
  • Low energy - Just 10.5 Watts for a 0.5M length, as bright as 100 watts of halogen, or a 40w Fluorescent Tube.
  • Long Lifetime - Minimum of 50,000 Hours
  • Durable & Impact Resistant
  • Anodised - will not rust or oxidise
  • Safe - No glass to break, and low voltage.

Fits all van sizes. Use more Bars for more light!

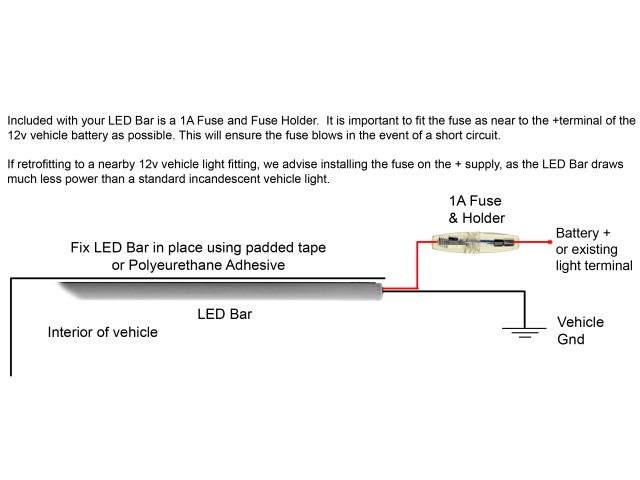

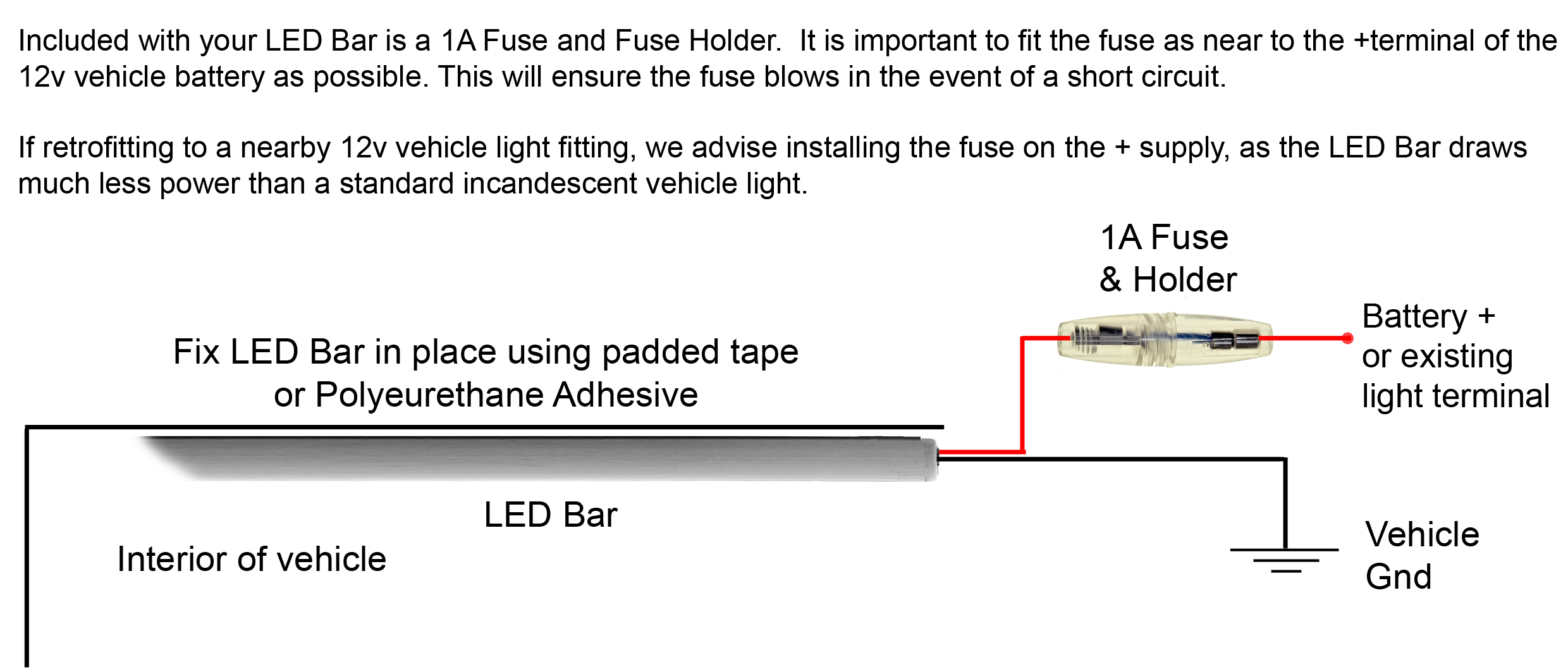

Includes easy to fit Bulgin In-line Fuse Holder and a 1A Fuse, fitting clips, and an easy to follow Diagram. Tech Support also available.

6 Year Warranty

Product Specification

Voltage Range10-15vdc
Power10.5 Watts
Length of Bar500mm
LED BrandSamsung
LED Qty30
BrightnessWarm White (3500k) 1050Lm
White (5000k) 1000Lm
Halogen Equivalent100 Watts
Dimensions50cm (L) x 40mm (W) x 9mm (H)
Approx. Current Per Metre680ma @ 12vdc)
DurabilityIP60
Cable Length1 Metre
CertificationsCE, RoHS
Warranty6 Years
