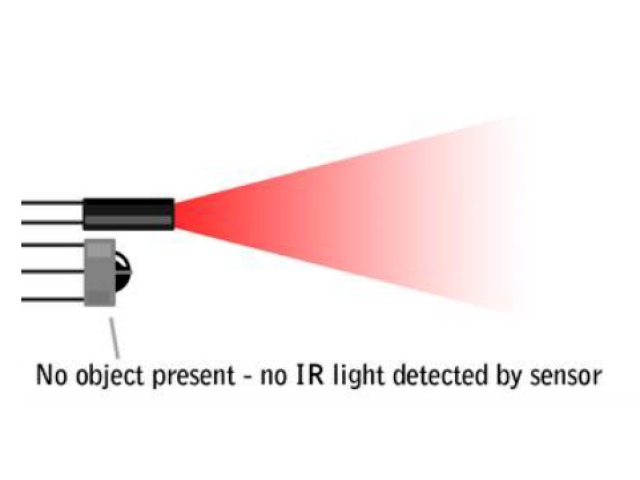

  • How the Infra-red sensor works to detect movement

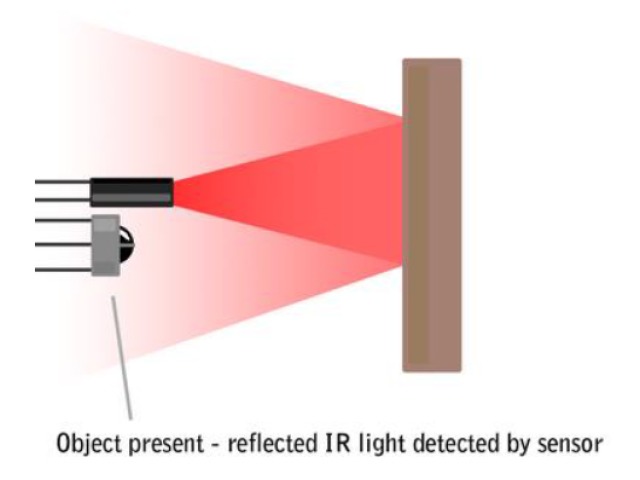

  • How the INfra-Red Strip Light Sensor works
  • Infra Red Motion Detector for LED Strip - use in Aluminium Channels

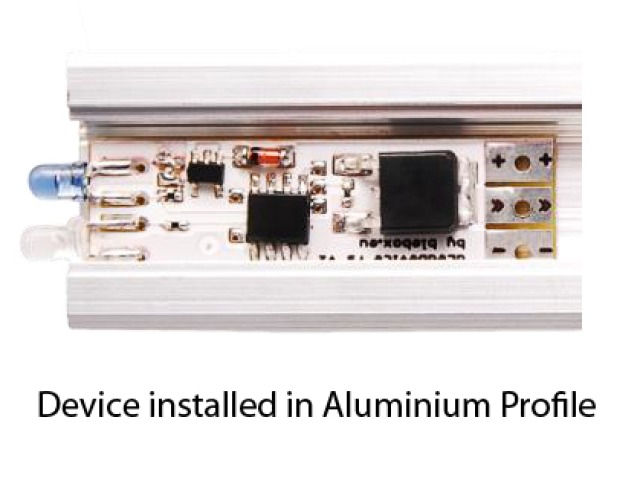

  • Sensor fitted in Aluminium Channel

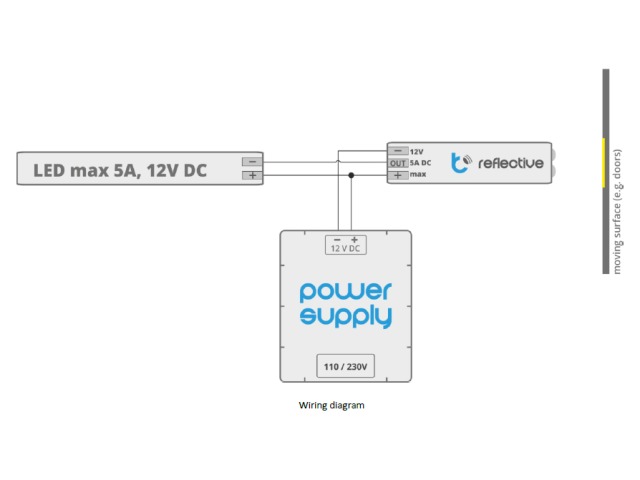

  • Diagram showing how LED Strip is connected to Infra Red Sensore and PSU

Infra-Red Sensor 12vdc for LED Strip

Product Code: REFSW

£13.90 inc VAT (£11.58 ex VAT)

Stock Level: In-Stock


Automatic Discount

Manufactured in Europe

View Documents

Share
Description Specification Documents

Product Description

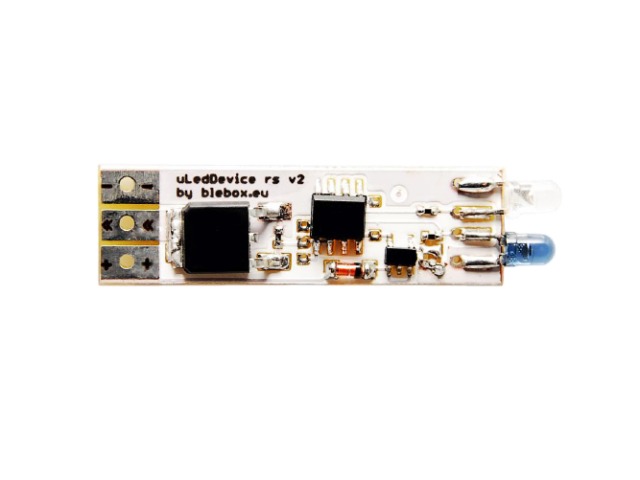

The Reflective Switch incorporates an Infra-Red Transmitter and Sensor so when the beam is reflected the lights are switched on.

This is ideal for adding intelligence to LED Strip Lighting for smooth switching on/off when wardrobe or cupboard doors are opened or closed.

Suitable for:

  • Cupboards | Cabinets | Wardrobes | Drawers
  • Fades on / Fades Off

The narrow width of the product makes it suitable for discrete installation next to the LED Strip in our Aluminium Profiles (shown below).

Product Specification

Voltage12 - 24vdc
Maximum current5A
Operating Temp0 - 40°C
Dimensions42mm x 10.5mm x 4mm (Fits inside our Aluminium Profiles)
Connectionssoldering joints
CertificationsCE, RoHS

Product Documents
