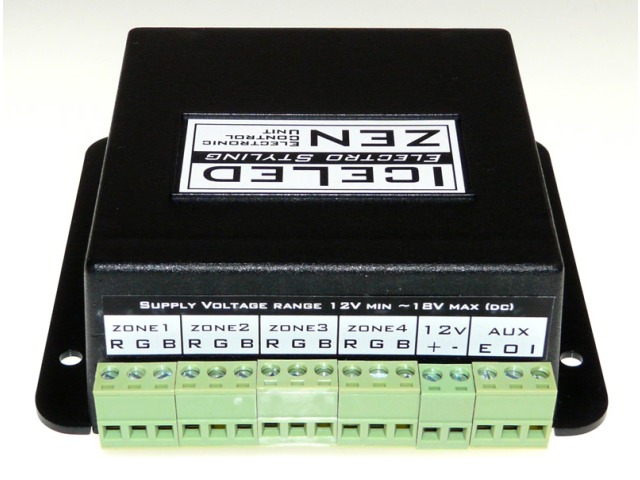

ICELED ZEN (v7) Controller with Remote & Remote Eye/Display

Product Code: ICEZEN

£78.00 inc VAT (£65.00 ex VAT)

Stock Level: In-Stock




Product Description

The ZEN is offers full control over our RGB Light Sources, a small credit card sized remote provides full control over every function. The ZEN is the controller of choice if you want to have full control over:

  • 2.1 Million Colours to choose from
  • Colour Range from a few colours to unlimited
  • Static Colour or Sweeping
  • Variable Sweep Speed
  • Scene Control
  • Sound to Light Activation

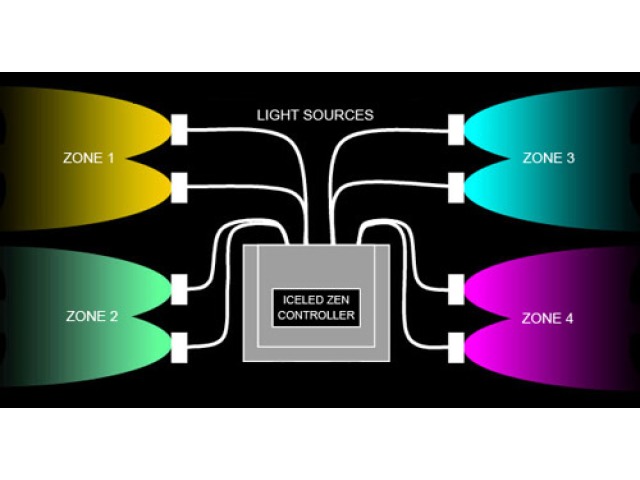

  • 4 Separately controllable Zones

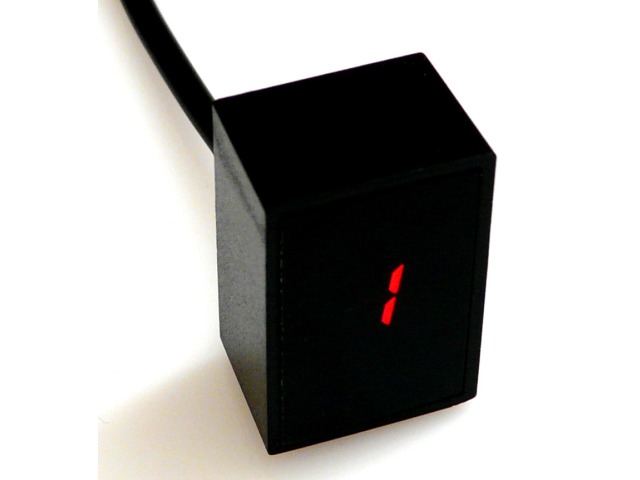

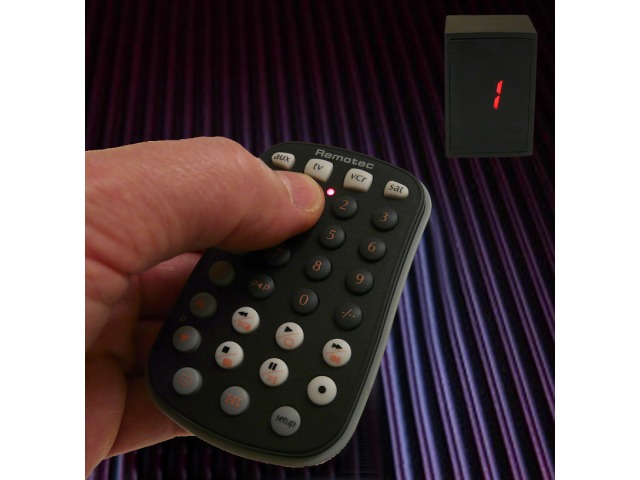

A discrete Remote Eye which also doubles as a Display to indicate the mode and function is included, it has 4.2 Meters (14ft) of cable with a jack plug on one end. This allows it to be placed in a location where it has line-of-sight from the Remote Control whilst the ZEN Box itself can be installed out of sight.

Features

  • Digital effects creation using 2,097,152 colours
  • Remote control of all functions
  • 10 Different Programmes plus strobe
  • Automatic cross-fade between programmes
  • Sound reactive via internal mic or stereo line-in
  • Automatic switch-on programme with delay
  • Can power up to 15A (180w) of LED Lighting or virtually unlimited if powered passively.
  • Controls all of our RGB Light Surces
  • Expandable with additional controllers
  • Integrates with ICELED UFO
  • Electronic reverse polarity and over-voltage protection
  • Rugged and reliable

Designed & Manufactured in the U.K

Product Specification

Voltage Range8-18vdc
Nominal supply voltage12 Volts DC
Standby current drain0.02 Amps
Maximum switched current15 Amps
Dimensions including Flange and terminal plugs121mm x 124mm x 43mm
Audio sensitivity54dB to 102dB
Data inputAny ICELED controller output
CertificationsCE, RoHS
