5M Dotless Edge-Lit RGB LED COB Strip, 24vdc, Colour Changeable) (840 LEDs/M, 12w) 5M Reel

Product Code: 840-10MM- RGB-12W

£76.00 inc VAT (£63.33 ex VAT)

Stock Level: In-Stock

Lengths & Prices:

5 Meters

£76.00

View accessories for this product

Product Description

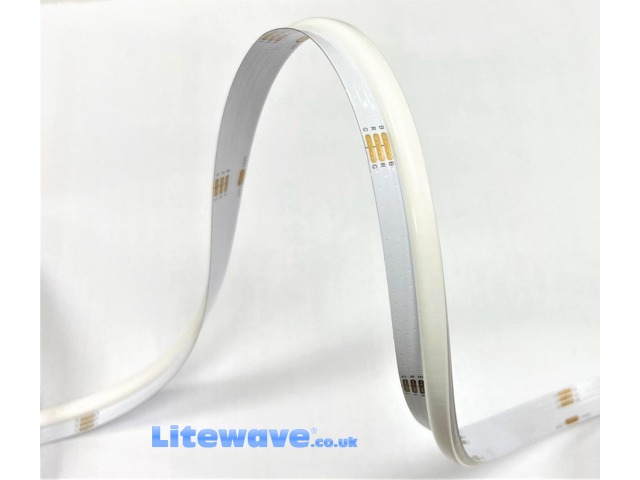

Traditional forward facing LED Strip has cannot be bent around a circle or where there us a contout. This strip gets around that problem, due to using side firing LEDs

No diffusers necessary

Ideal for applications where there is no space for a diffuser or profile.

The Strip has 840 integrated COB LEDs per Metre. A5M reel will have 4,200 LEDs.

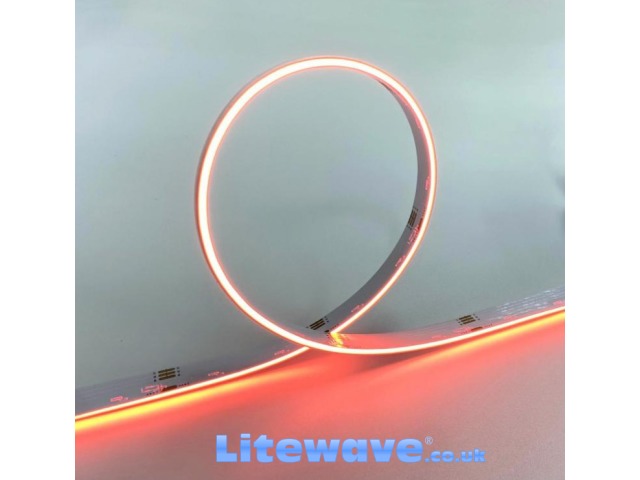

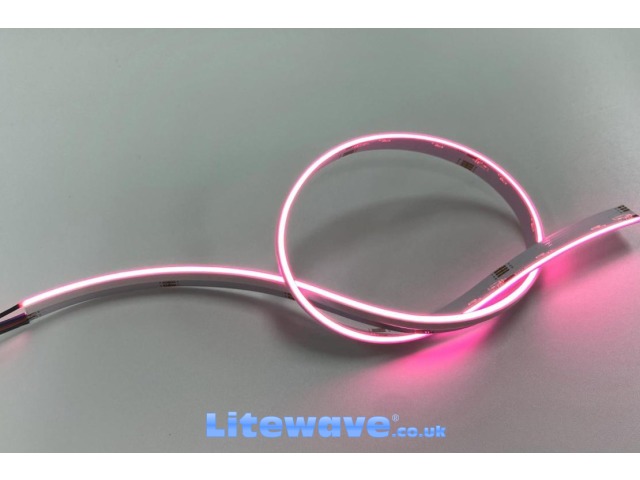

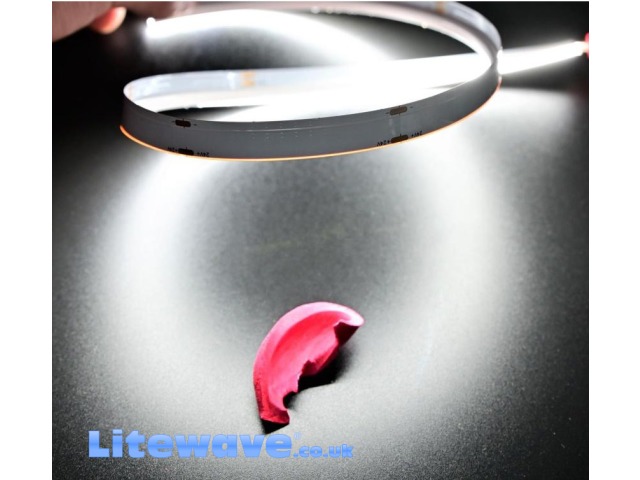

RGB - 16.7 Milliion colours including whites, warm white, and pastels
Cutting points every 5cm
24vdc reduced voltage drop issues

Product Specification

Working Voltage Range	24vdc
LED Type	FC COB
LED Brand	Sanan
RGB Values	R:615-630nm G:520-535nm B:450-460nm
Brightness per Metre	~300Lm
Current per Meter	500mA
Power Draw per Meter	12 Watts
Light Dispersion	180 °
Width of LED Strip	10mm
Depth of LED Strip	2.2mm
Lengths available	5M
Lifetime	>25,000 hours
LEDs per Meter	630
Cutting Points	50mm
Wire pre-fitted	0.5M on both ends
IP Rating	IP20 (Non Waterproof)
Warranty	2 Years
Certifications	CE, RoHS, LM-80, UL, EC, UKCA, Eye Safe IEC/EN 62471

Accessories

For more information about one of the products below simply click the name of the product.

	Colour Controller	Price
	LightBox Smartphone RGB LED Controller Enables display of 16.7 Million Colours via a Free App	£49.00	Quantity :
	Wi-Fi Lightbox Colour Controller (v3) Enables display of 16.7 Million Colours via a Free App, Alexa / Google Home Compatible	£65.00	Quantity :

Power Supplies	Price
8.33A Switchmode 24vdc (200w) (Waterproof) Power Supply Capable of powering up to 15 Metres of RGB COB Strip, for wiring to a lighting circuit	£69.00	Quantity :
24vdc 1A (24w) Waterproof (IP67) Power Supply Capable of powering up to 1.5 Metres of Edge-Lit RGB COB Strip, for wiring to a lighting circuit	£15.00	Quantity :
24vdc 4.16A (100w) Waterproof (IP67) Power Supply Capable of powering up to 7 Metres of RGB COB Strip, for wiring to a lighting circuit	£42.00	Quantity :
24vdc 2.5A (60w) Waterproof (IP67) Power Supply Capable of powering up to 4 Metres of RGB COB Strip, for wiring to a lighting circuit	£26.00	Quantity :
12vdc 12.5A (150w) Waterproof (IP67) Power Supply Capable of powering up to 11 Metres of RGB COB Strip, for wiring to a lighting circuit	£59.00	Quantity :
