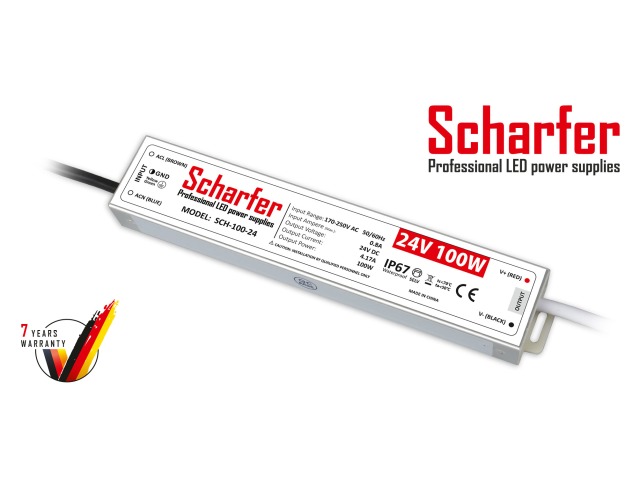

24vdc 4.16A (100w) Waterproof (IP67) - Scharfer Professional PSU

Product Code: LW-SCH-100-24

£42.00 inc VAT (£35.00 ex VAT)

Stock Level: In-Stock

Quantity :

Automatic Quantity Discount

PLEASE NOTE: A waterproof Junction box or waterproof connectors must be used to connect the Input of the PSU to the Mains supply, and also for the output side of the PSU to the Controller or LEDs.

View Documents


Product Description

Empower your lighting setups with the Scharfer 24V 100W LED Driver. Featuring an ultra-slim design and a 7-year warranty, it ensures reliability and longevity. Run at 100% load with confidence, supported by short circuit and over-voltage protection.

Key Features:

Ultra-Slim Design Scharfer's 100W LED Driver boasts an ultra-slim profile, providing a sleek and contemporary look for your lighting setups.

7-Year Warranty Enjoy peace of mind with an impressive 7-year warranty, a testament to the product's quality and durability.

High Load Capacity The oversized internals of this power supply unit (PSU) allow it to run at an impressive 100% load, ensuring optimal performance and longevity.

Ideal for LED Strips Tailored for LED strips, this LED Driver is perfect for illuminating spaces with precision and efficiency.

Safety Features:

Short Circuit Protection Guard against unexpected electrical issues with built-in short circuit protection.

Over Voltage Protection Protect your LEDs from voltage spikes, enhancing the lifespan of both the driver and the connected lights.

Product Specification

VoltageMains 2000-250vac
TypeConstant Voltage PSU
Output Voltage24vdc
Maximum Current4.16A
Power100 Watts
Power Factor0.9
Inrush Current<40A
OverloadAuto-Recovery
Short CircuitAuto-Recovery
Over-VoltageAuto-Recovery
IP RatingIP67 (Waterproof)
Weight600g

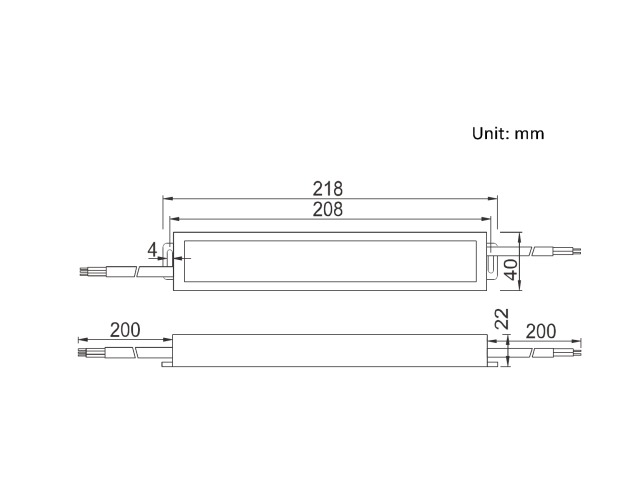

Dimensions218mm x 40mm x 20mm
ConnectionCable In / Out
CertificationsCE, SELV, RoHS
Safety StandardEN 61347-1, EN 613347-2-13,

EN55015, EN61000-3-2, 3, 4,5, 6,11,
EN61547
EMI StandardMeets Emissions to EN5015
Manufacturers Warranty7 Years
