ICELED Gem (V2)

Product Code: ICEGEM

£37.50 inc VAT (£31.25 ex VAT)

Stock Level: In-Stock


View Documents


Product Description

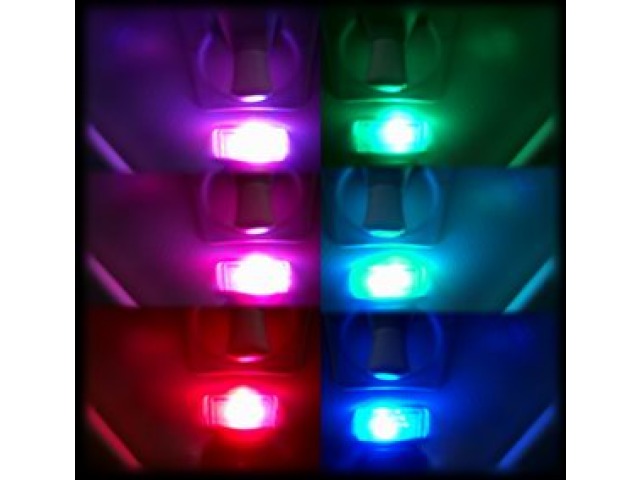

The ICELED Gem is designed for use in 12v vehicles where voltages can vary greatly, it is capable of displaying 2.1 Million Colours.

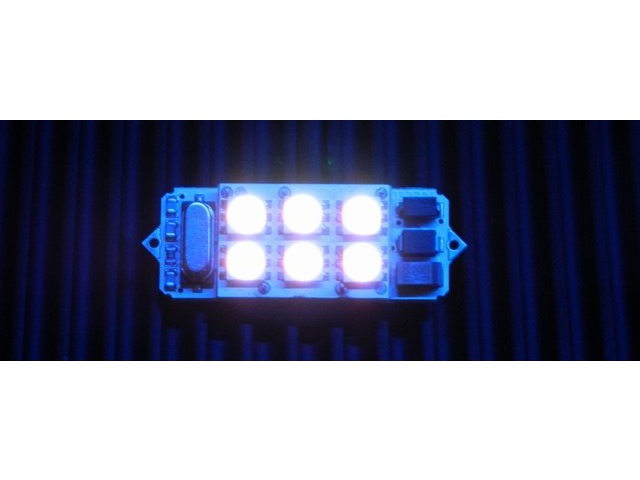

The latest Version 2 Gem now uses Triple Chip SMD LEDs instead of the older individual Red, Green, and Blue LEDs.

This makes the colours render very smoothly and produces a brighter more even light than the previous GEM.

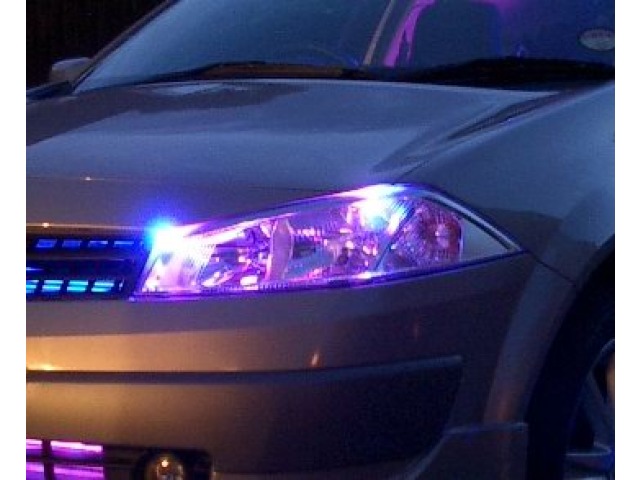

The Gem can be used as a direct replacement for the interior 1.5" 5-10 watt festoon bulbs use for the interior light in most vehices. It also lends itself very well for lighting In-Car-Entertainment systems, or even colour changing headlamp conversions.

The Gem can draw it's power from any suitable light fitting. A detachable cable is included that can be used to provide power and/or Data for linking to ICELED Controllers such as the ZAP+ or ZEN, shown in the related items section below.

The Gem can be used with or without the Controllers making it ideal as a standalone light source anywhere that 12vdc is present.

The maximum Power Consumption is just 1.8 Watts.

Designed & Manufactured in the U.K

Product Specification

Operating Voltage10-16vdc
Typical Current drain0.1 Amps (100ma)
Maximum Current drain0.05 Amps (50ma)
Dimensions(L) 38mm x (W) 15mm x (H) 10mm Excluding Contacts
Cable length4.2M (14Ft)
DurabilityNot Waterproof
Maximum Power Consumption1.8 Watts

Product Documents
