Mini (RGB) Colour Changeable LED Plinth / Deck Lights - Wiring Schematics

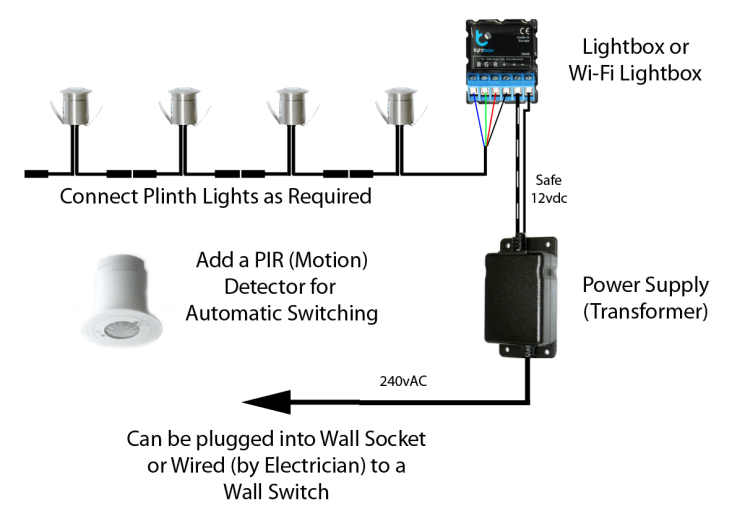

There are many different types of control systems for our Plinth Lights.  Below are several examples of how the Plinth Lights are connected to the colour controllers.

The Mains Power Supply converts the voltage into a safe low voltage of 12vdc which the Mini (RGB) LED Plinth Lights and controllers run from.

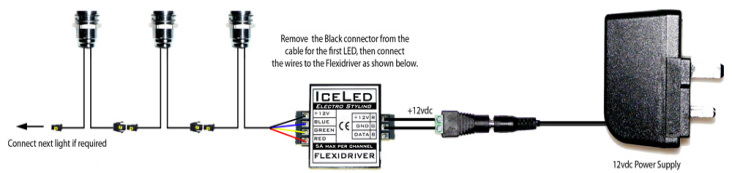

Above: Connection of the Mini RGB LED Plinth Lights to the Flexidriver, and Power Supply.

Below: A ZAP+ Controller is added for more control options.



 RGB LED Modules connected to Flexi Driver & ZAP Controller

Below: A more complicated system using the ZEN Controller.

RGB LED Modules Connected to Flexi Driver and ZEN Controller
